La Marzocco was founded in 1927 in Florence, Italy, birthplace of the Italian renaissance and home to such geniuses as Leonardo Da Vinci. Michelangelo and Brunelleschi who created some of the most celebrated work so far in the world.

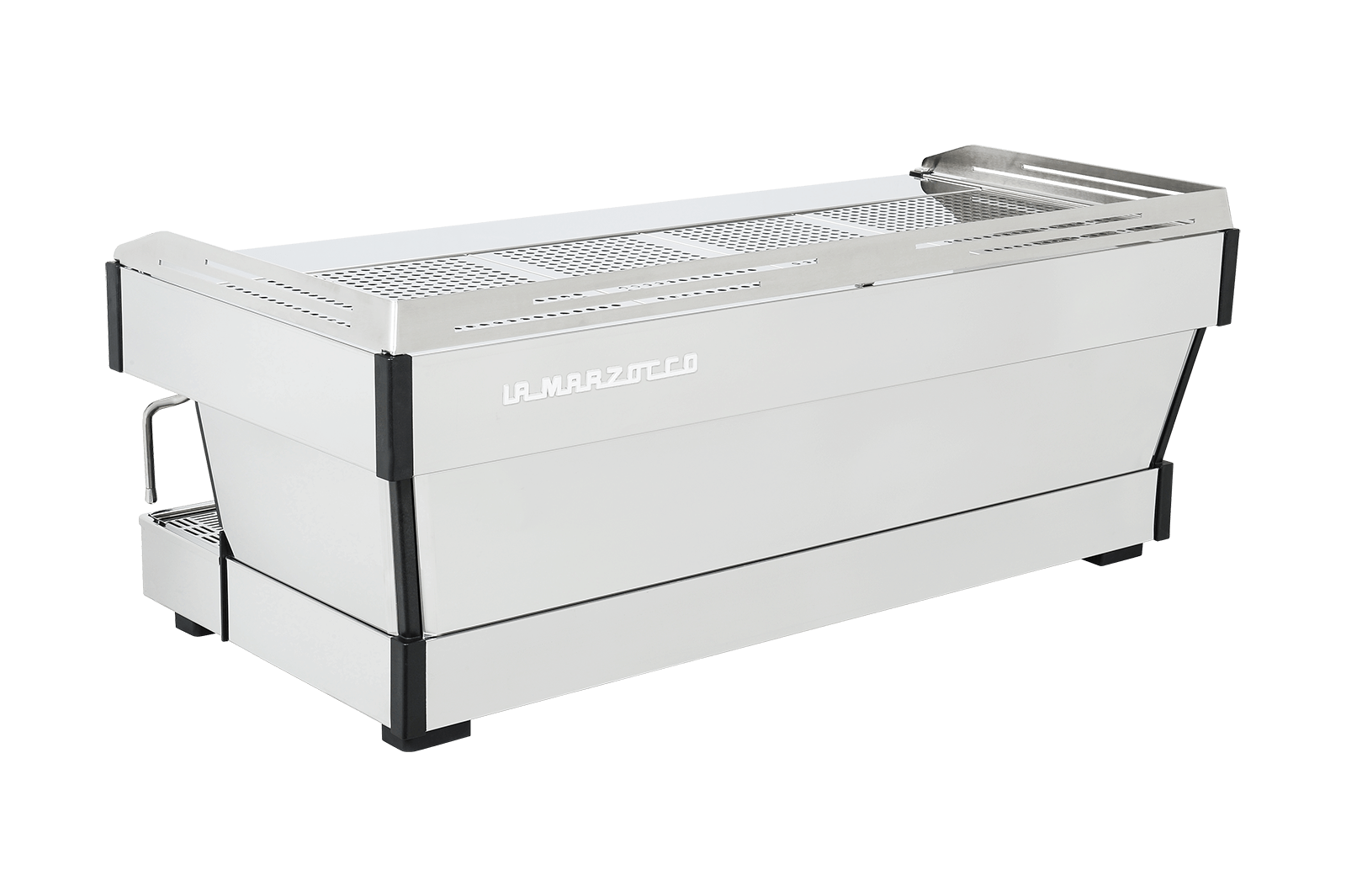

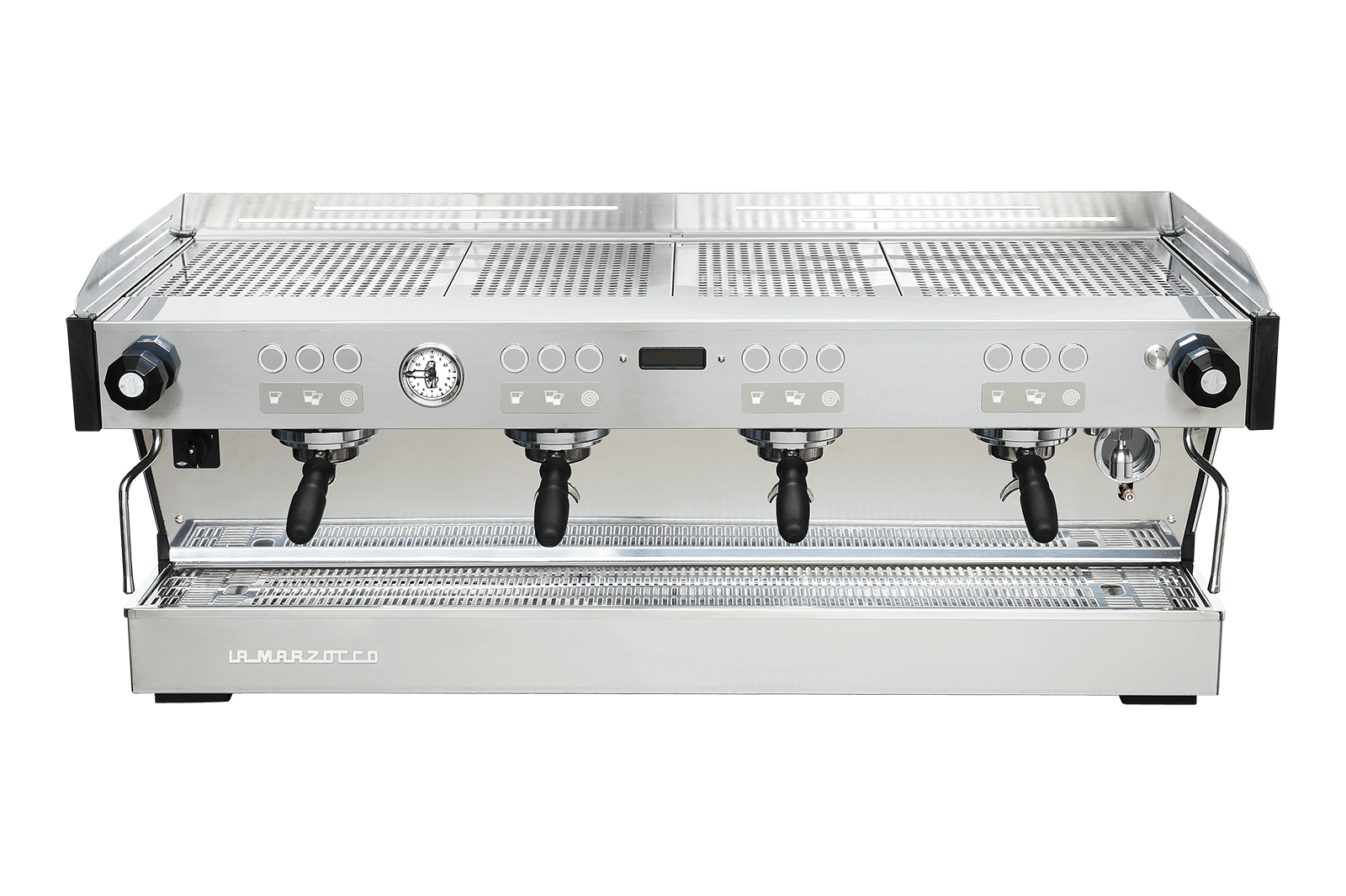

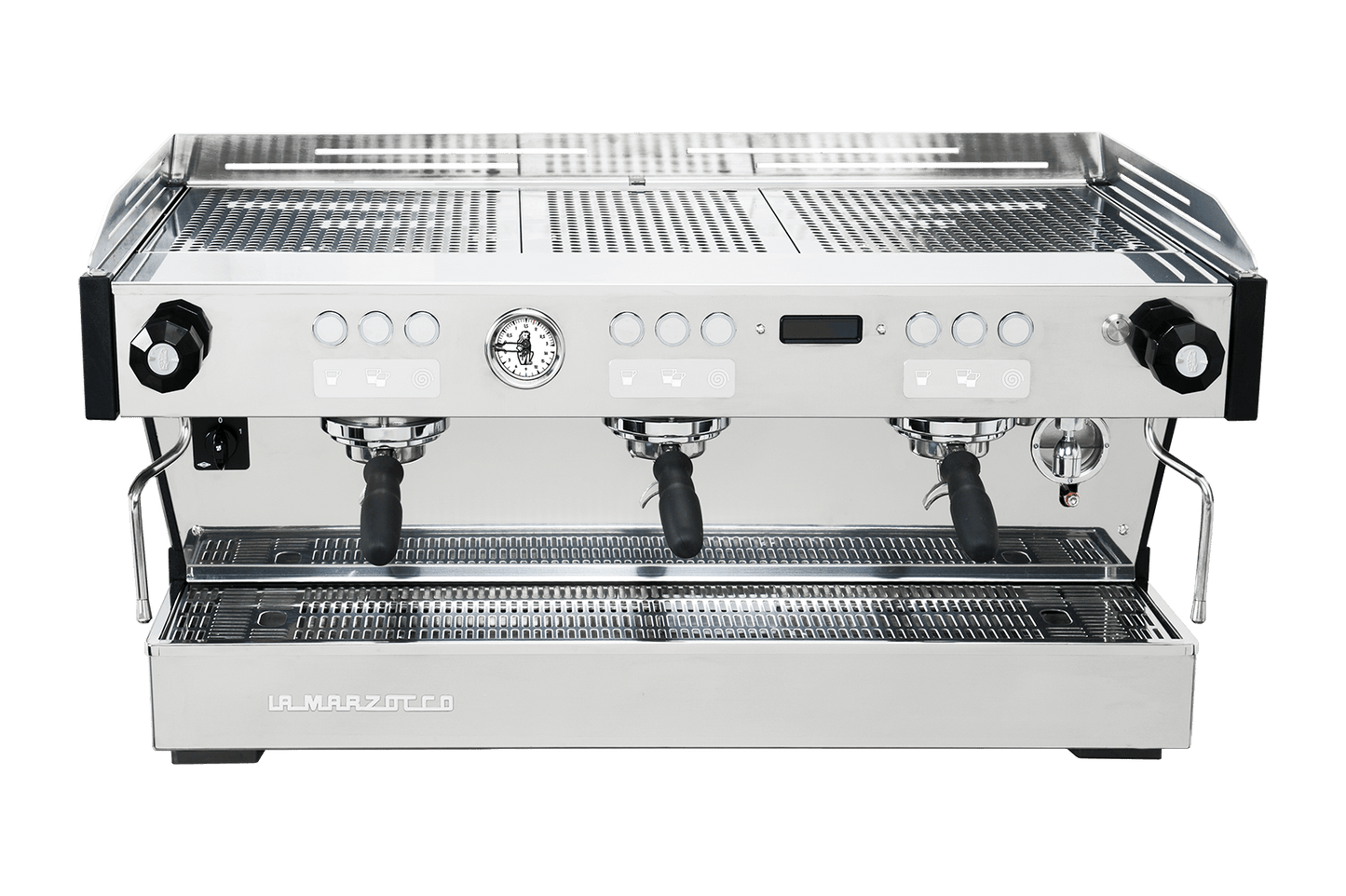

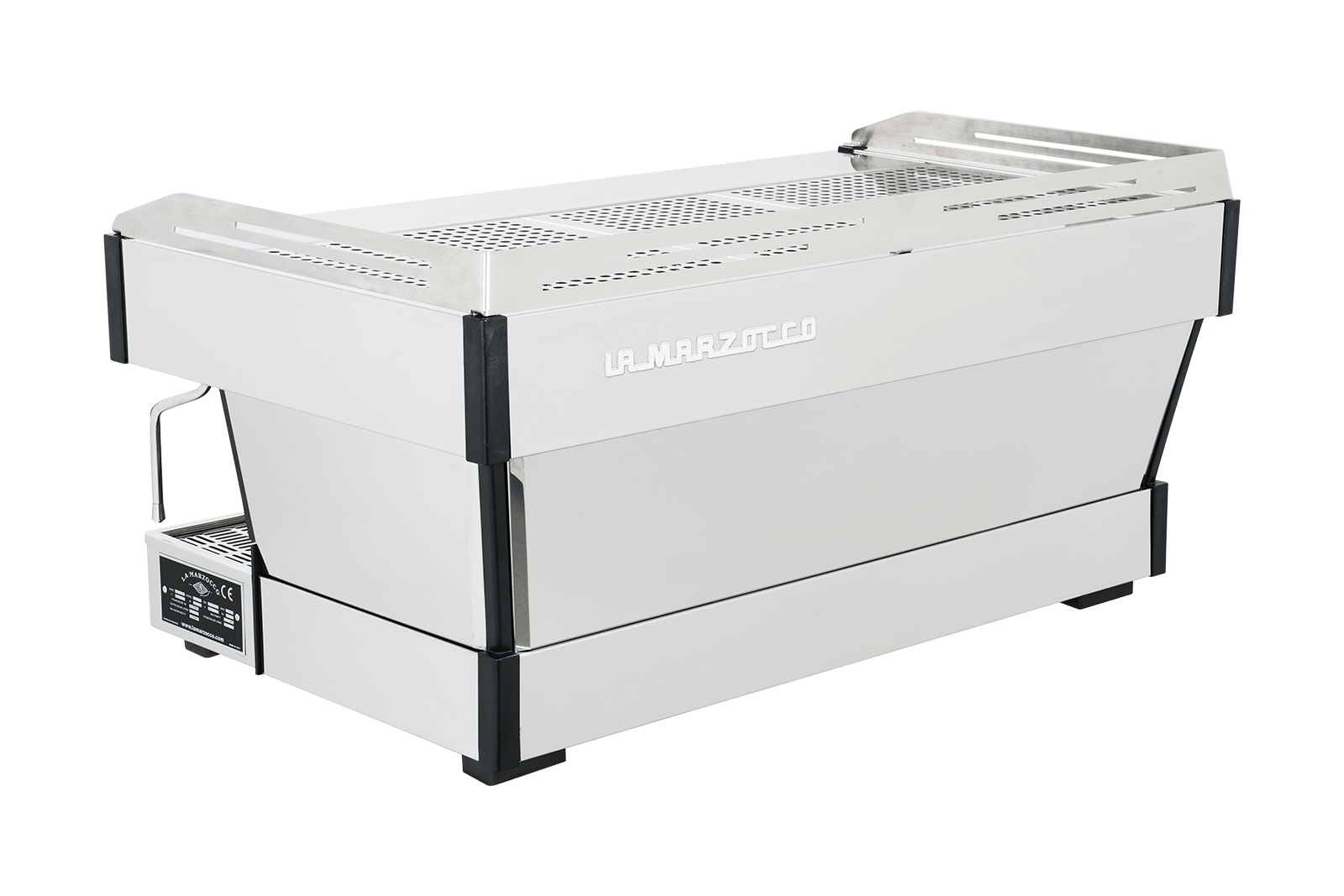

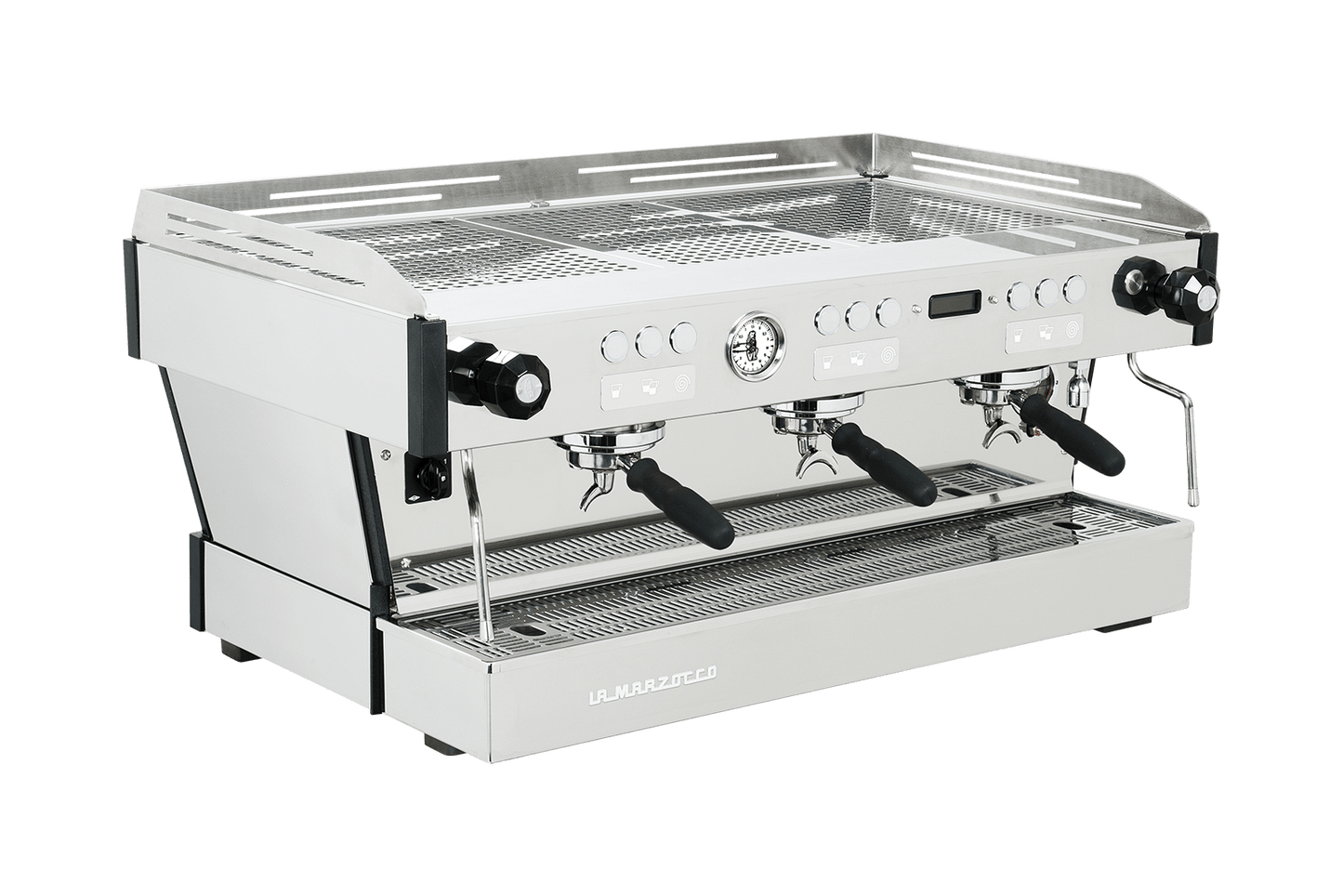

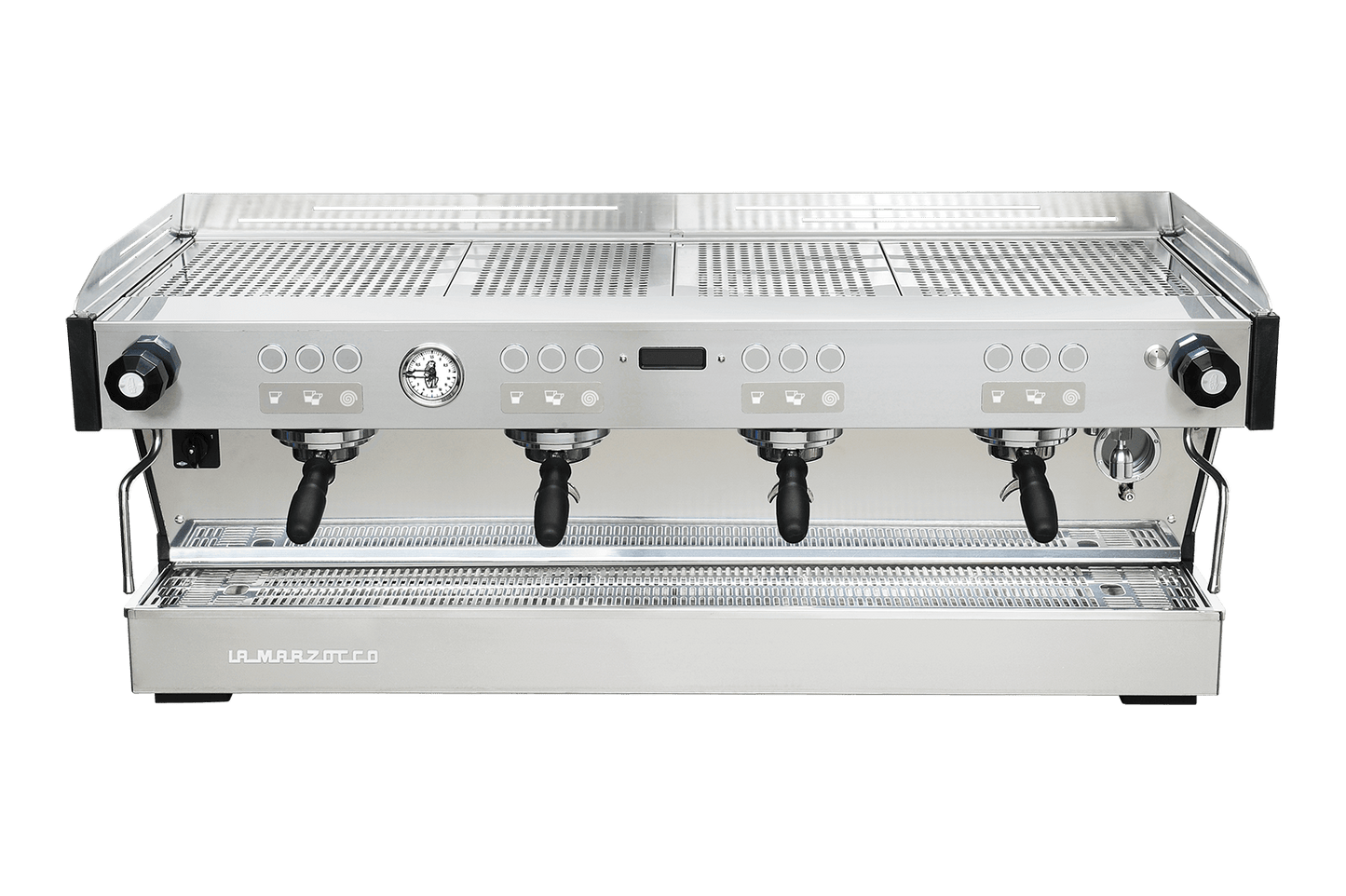

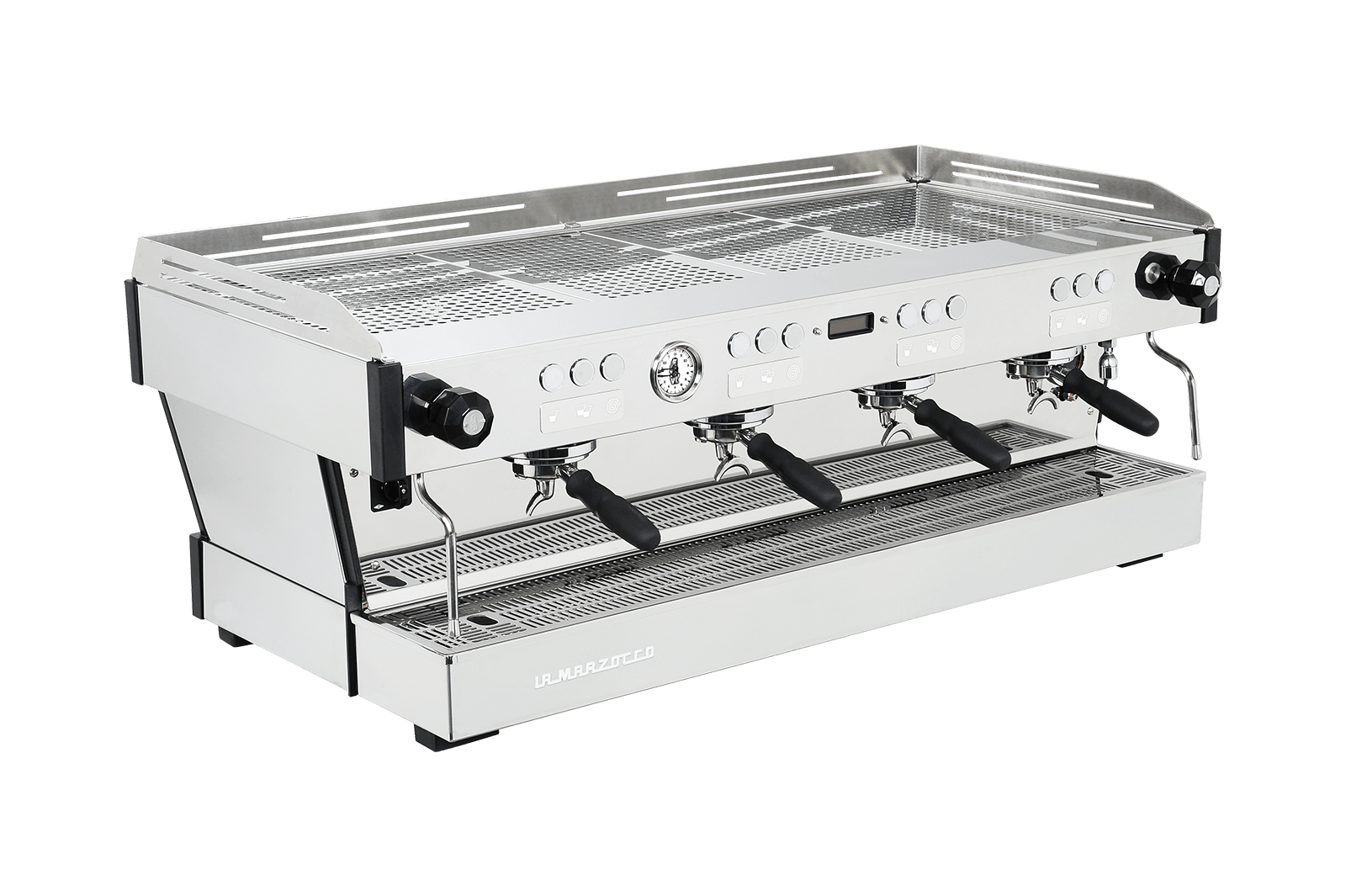

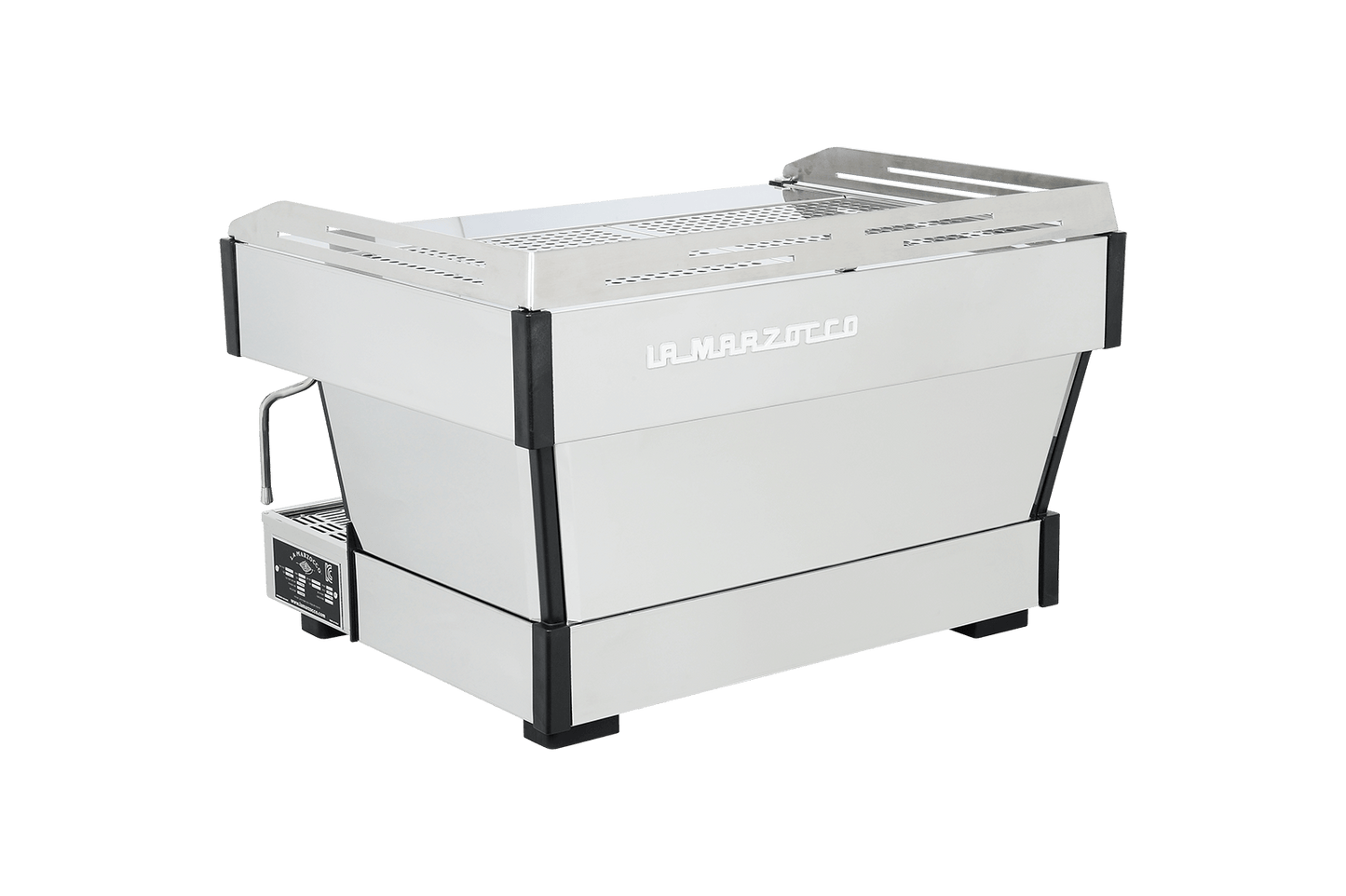

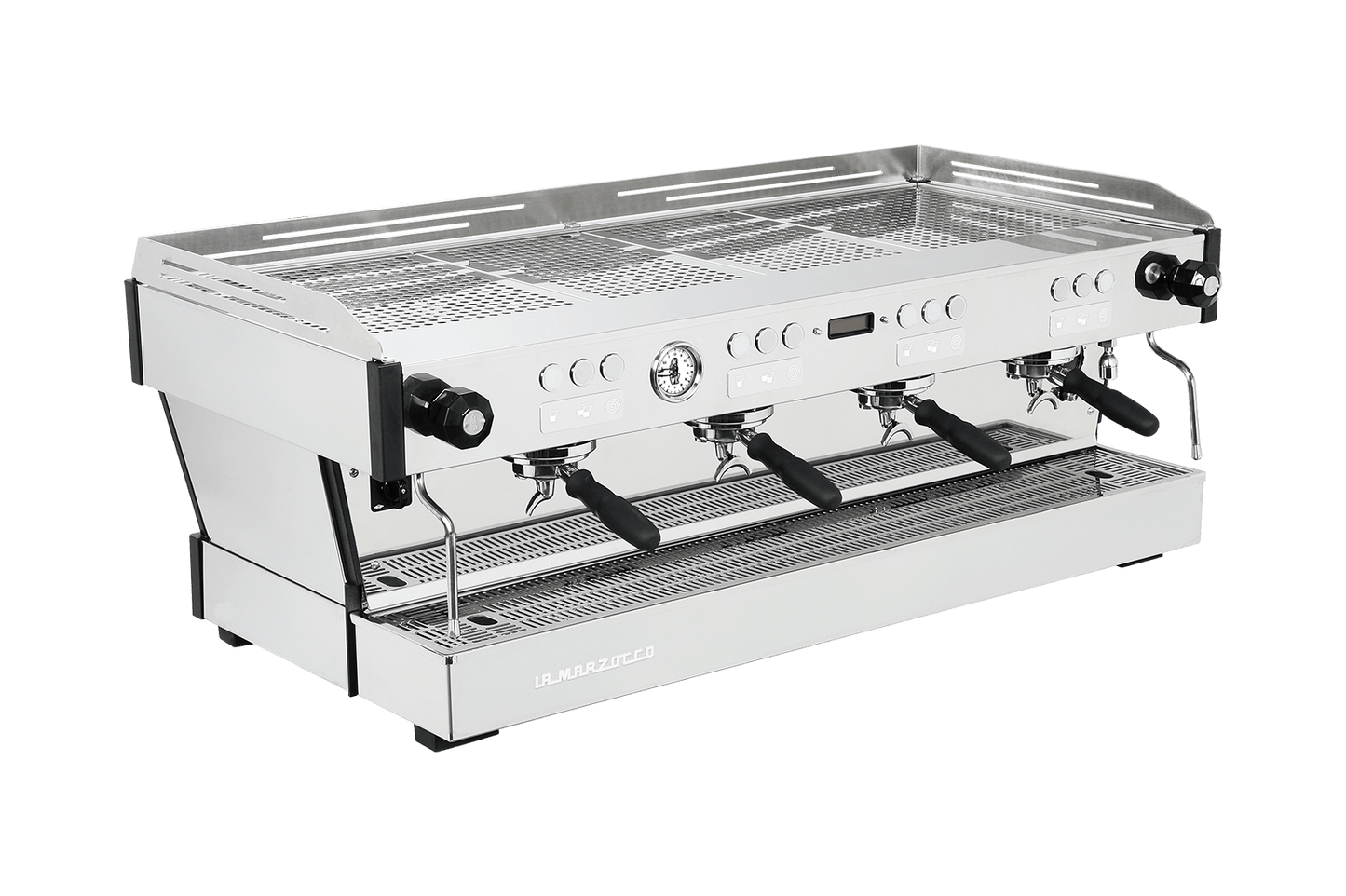

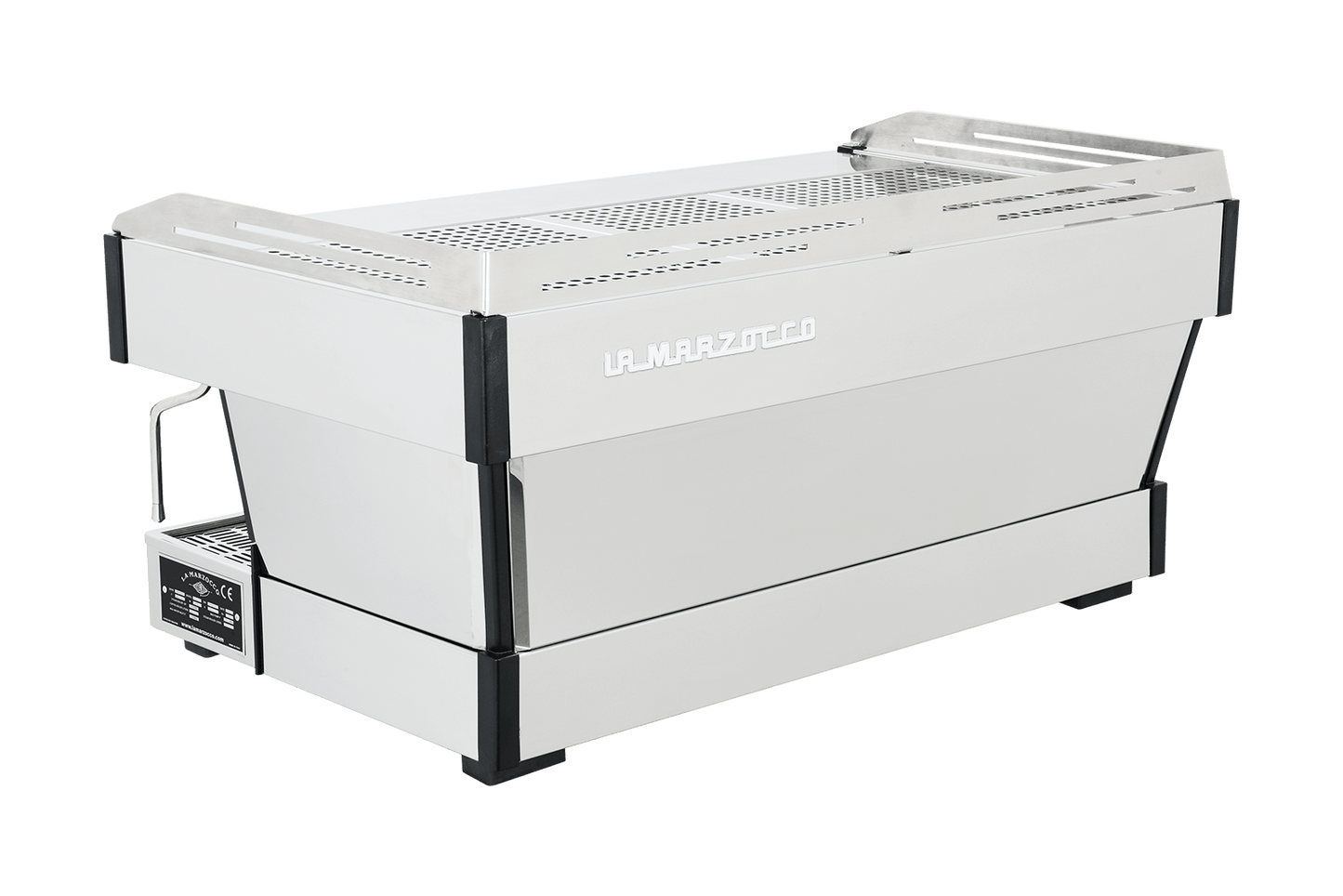

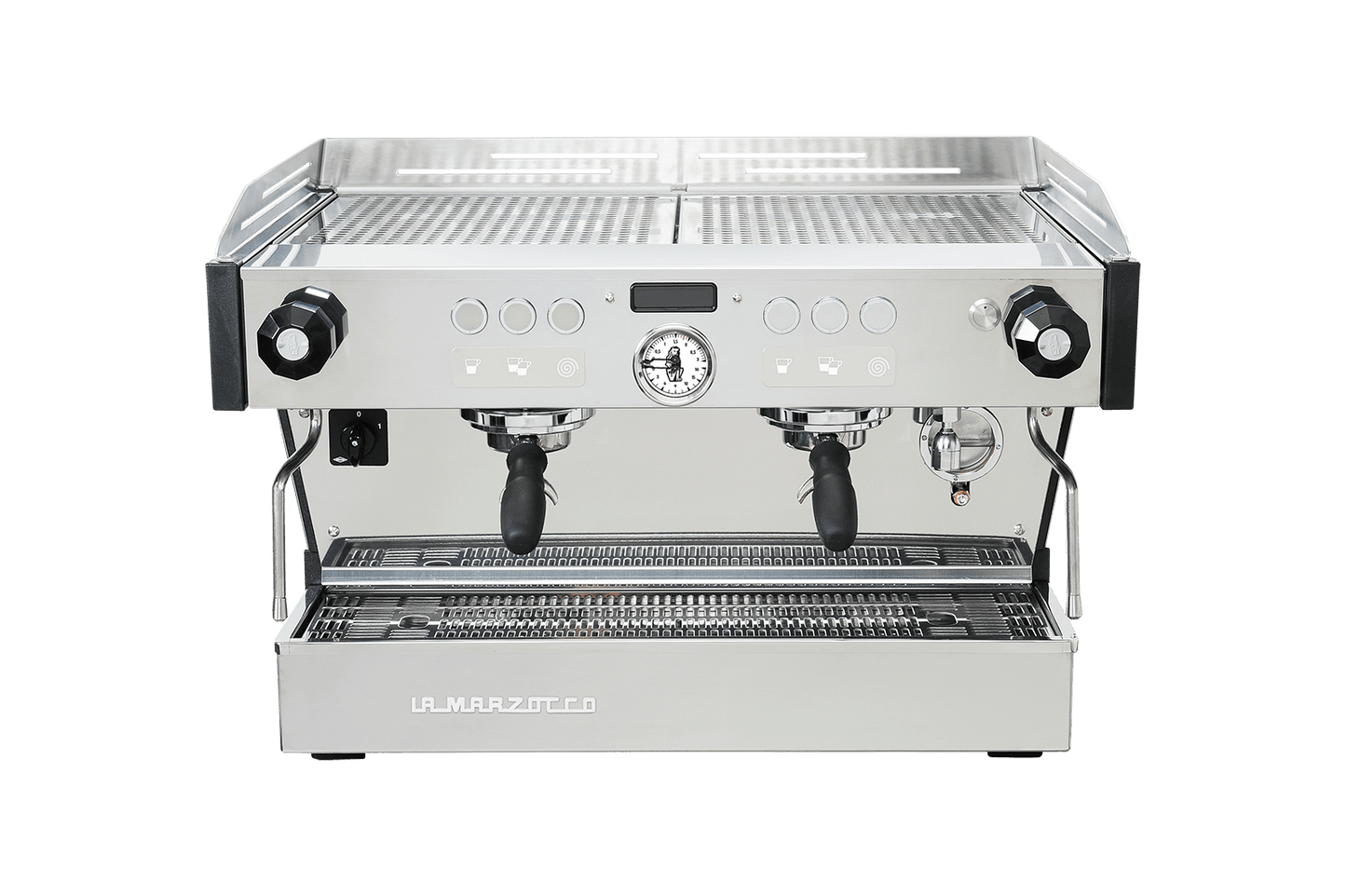

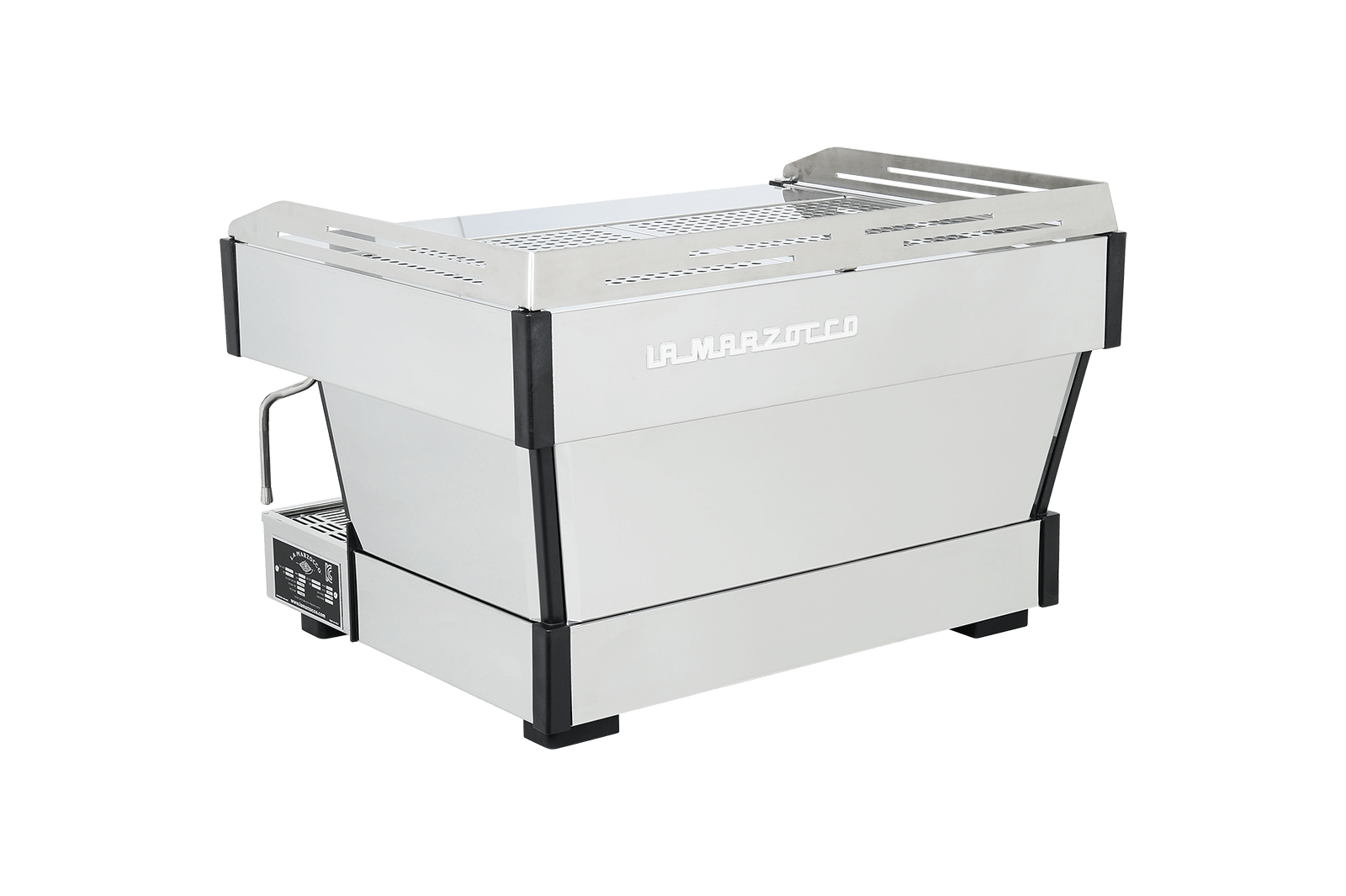

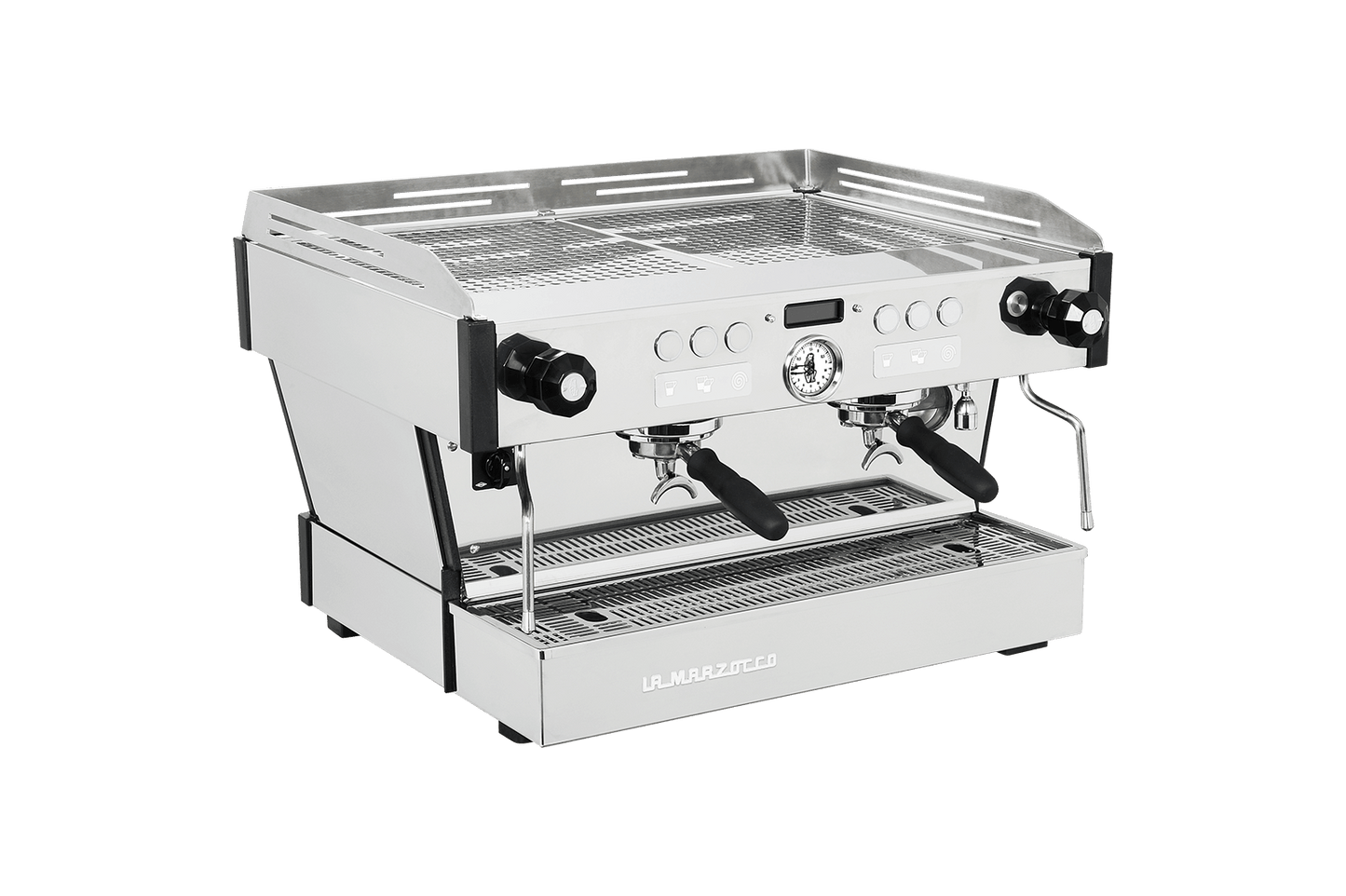

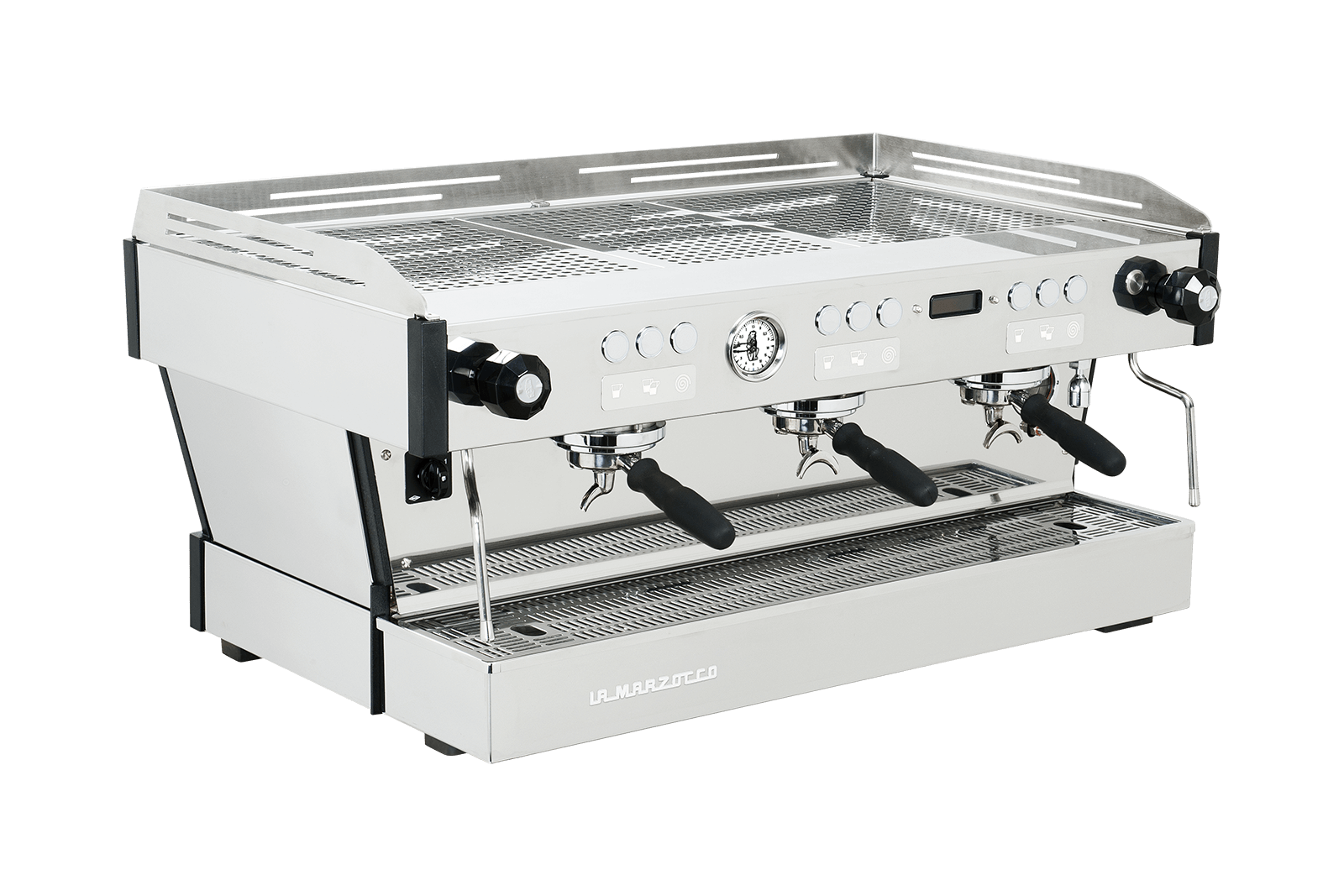

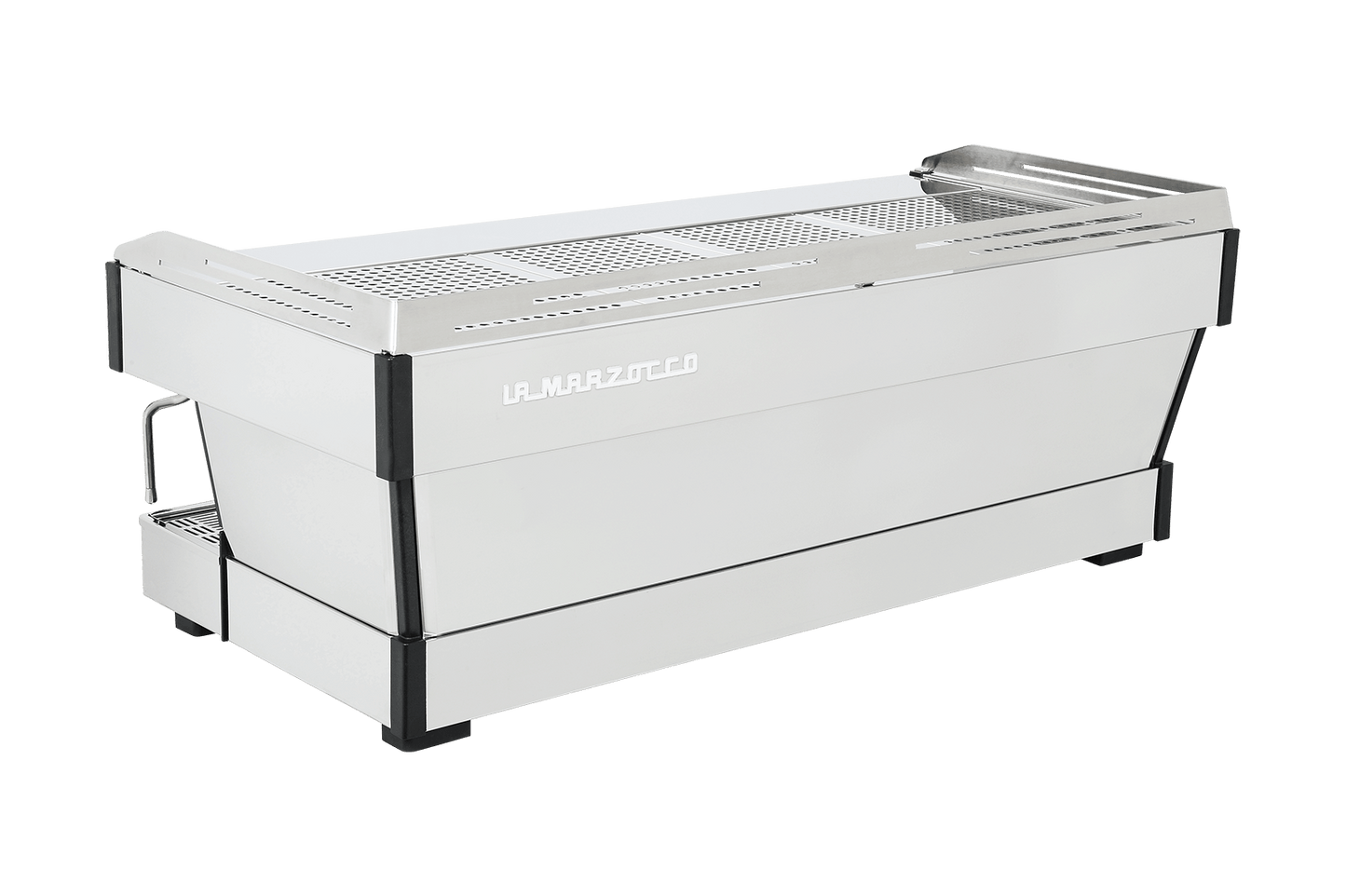

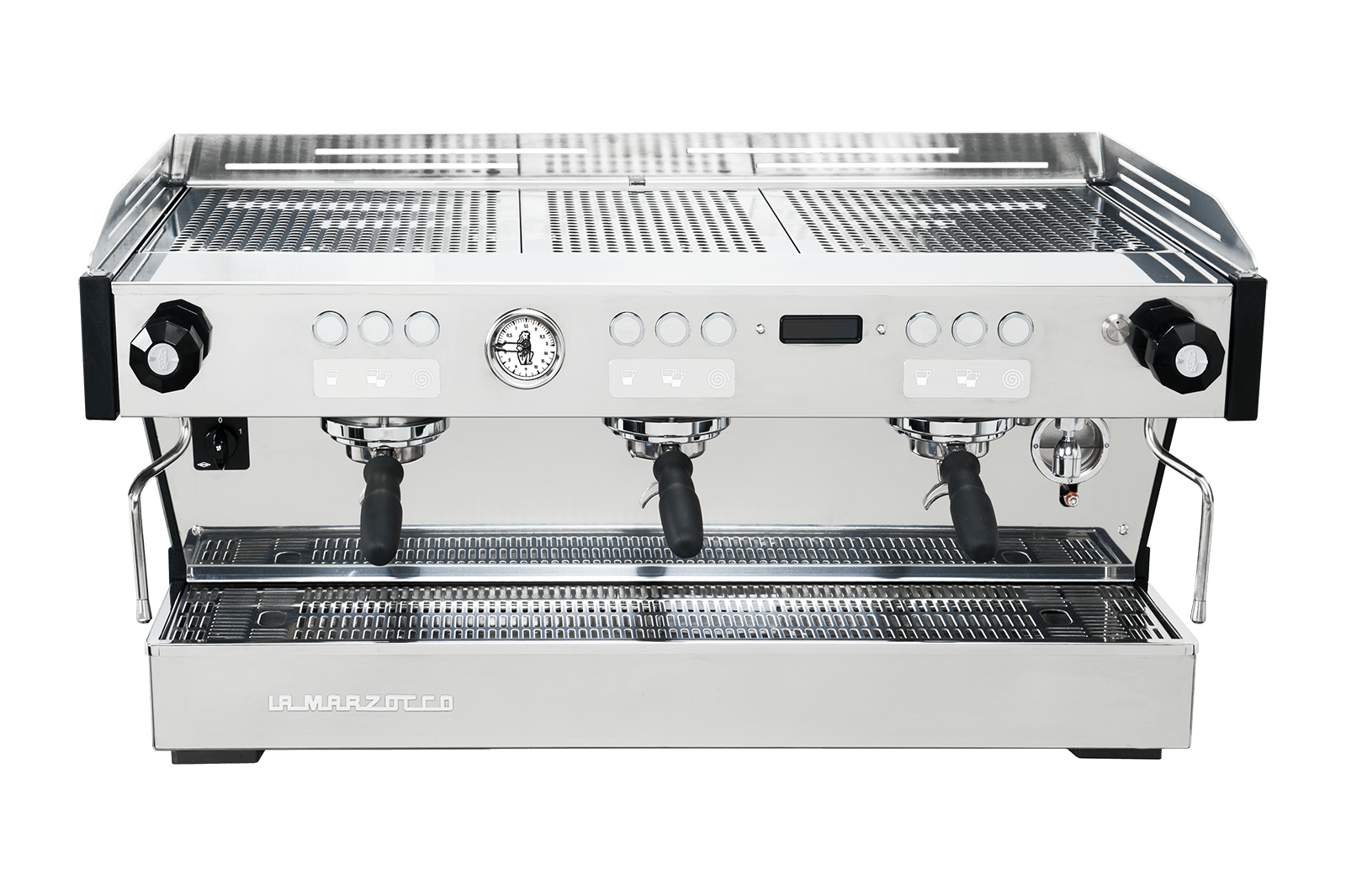

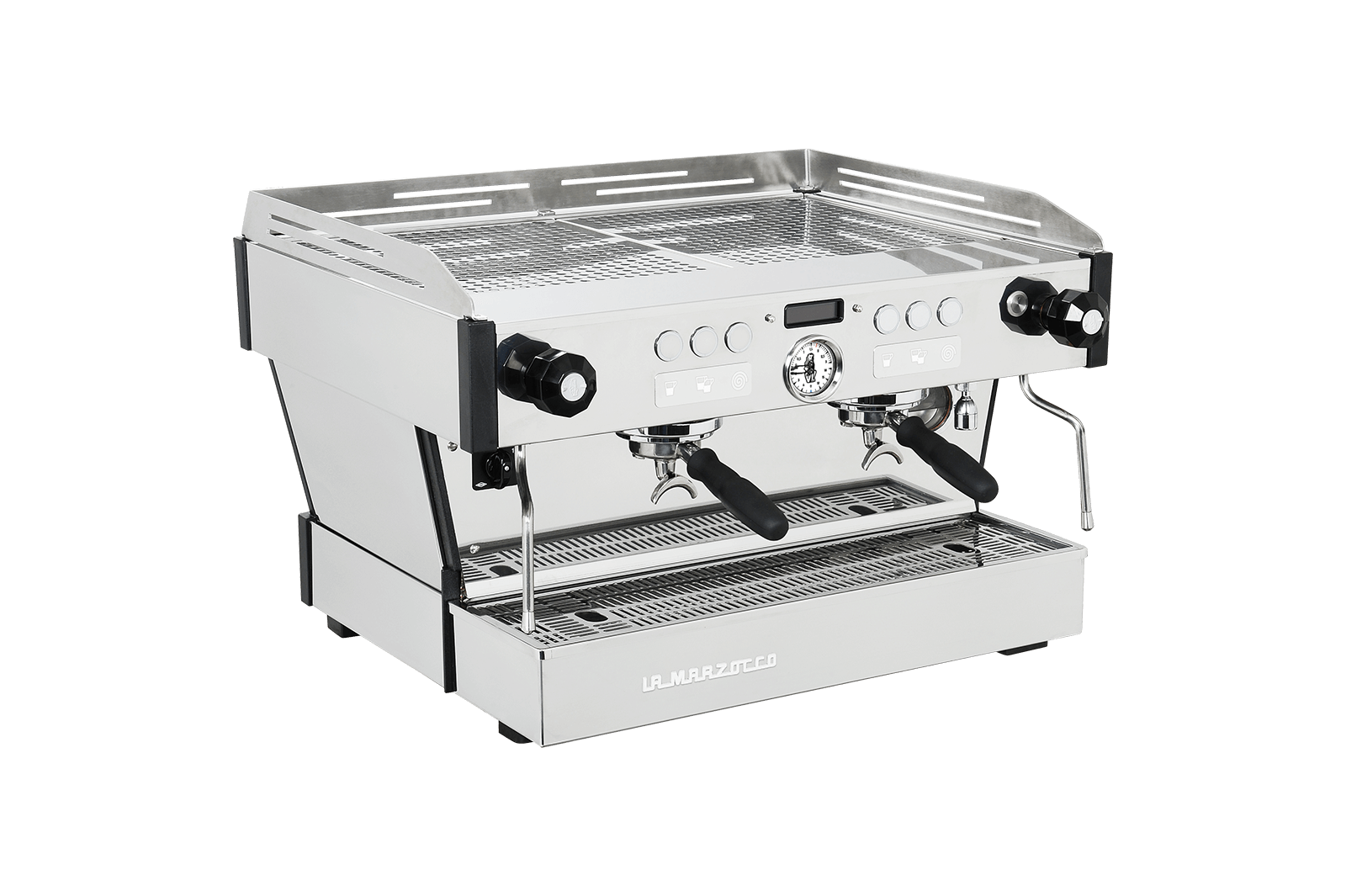

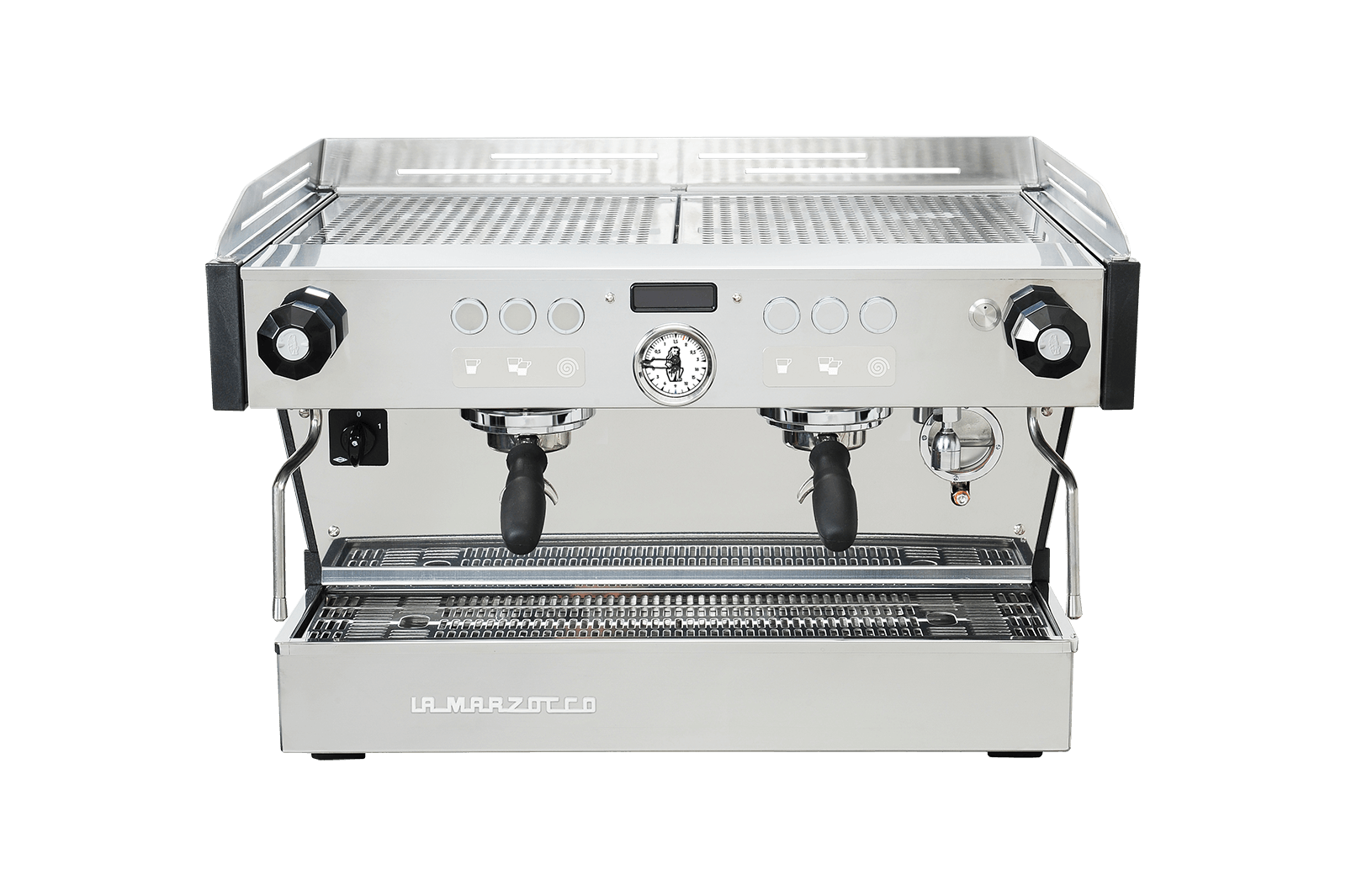

Linea PB X

Linea PB X

An update to the technicaland stylistic workings of an industry icon.

Version
Reference:   SKU:
Connect with us to get information &
quotation on selected product.

Product Overview

An update to the technical and stylistic workings of an industry icon.

5 years after the launch of the Linea PB, which has become a trusted industry workhorse, La Marzocco introduced a version of the machine equipped with the most advanced La Marzocco technologies. These include pre-heating system, independent boilers, hot water mixing valve accessible from the side panel and Pro Touch steam wands. The Linea PB X features refreshed aesthetics based on the presence of barista lights as standard and white details such as logos, manometer, display lettering and keypads. The dynamic preheater ensures unmatched temperature stability, provides steady brew water and steam even at the peak of the morning rush. The Linea PB’s lower profile and increased work area also make it practical, without abandoning world renown Italian design.


Technical Specifications

Specifications

2grp

3grp

4grp

Height (cm/in)

53,3 / 21

53,3 / 21

53,3 / 21

Width (cm/in)

71 / 28

95 / 38

119 / 47

Depth (cm/in)

59 / 23

59 / 23

59 / 23

Weight (kg/lbs)

61 / 135

77 / 170

117 / 258

Voltage (VAC)

200 single phase

220 single / 3 phase

380 3 phase

200 single phase

220 single / 3 phase

380 3 phase

200 single phase

220 single / 3 phase

380 3 phase

Wattage (min)

3350

5830

6930

Wattage (max)

5670

7790

9470

Coffee Boiler Capacity (liters)

2 x 1,3

3 x 1,3

2 x 3,4

Steam Boiler Capacity (liters)

7

11

15

Key Features

Digital display

Intuitive programming makes it easy to adjust machine parameters.

Dual boilers

Separate boilers optimize espresso brewing and steam production.

Independent saturated boilers

Separate saturated boilers for each group head allow barista to optimize temperature for individual coffees, ensuring thermal stability.

Dual pid (coffee and steam)

Allows you to electronically control coffee and steam boiler temperature.

Insulated boilers

Reduce energy consumption while contributing to temperature stability.

Eco mode

Can be programmed to enter stand-by mode, improving energy efficiency.

USB

Making it possible to update the firmware.

Piero group caps

Re-engineered internal water path and flow-meter positioning that increase temperature stability.

Pro touch steam wands

High performing steam wands that are cool to the touch.

Hot water economizer

Enables you to fine-tune the tap water temperature for tea.

Digital display

Intuitive programming makes it easy to adjust machine parameters.

Barista lights

Led lighting allows you to focus on your extraction and the cup.

Cup warmer – special order

Maintain espresso and cappuccino cups evenly heated at a proper temperature.

Integrated scales – abr only

Precision scales integrated in the drip tray provide an improved level of consistency.

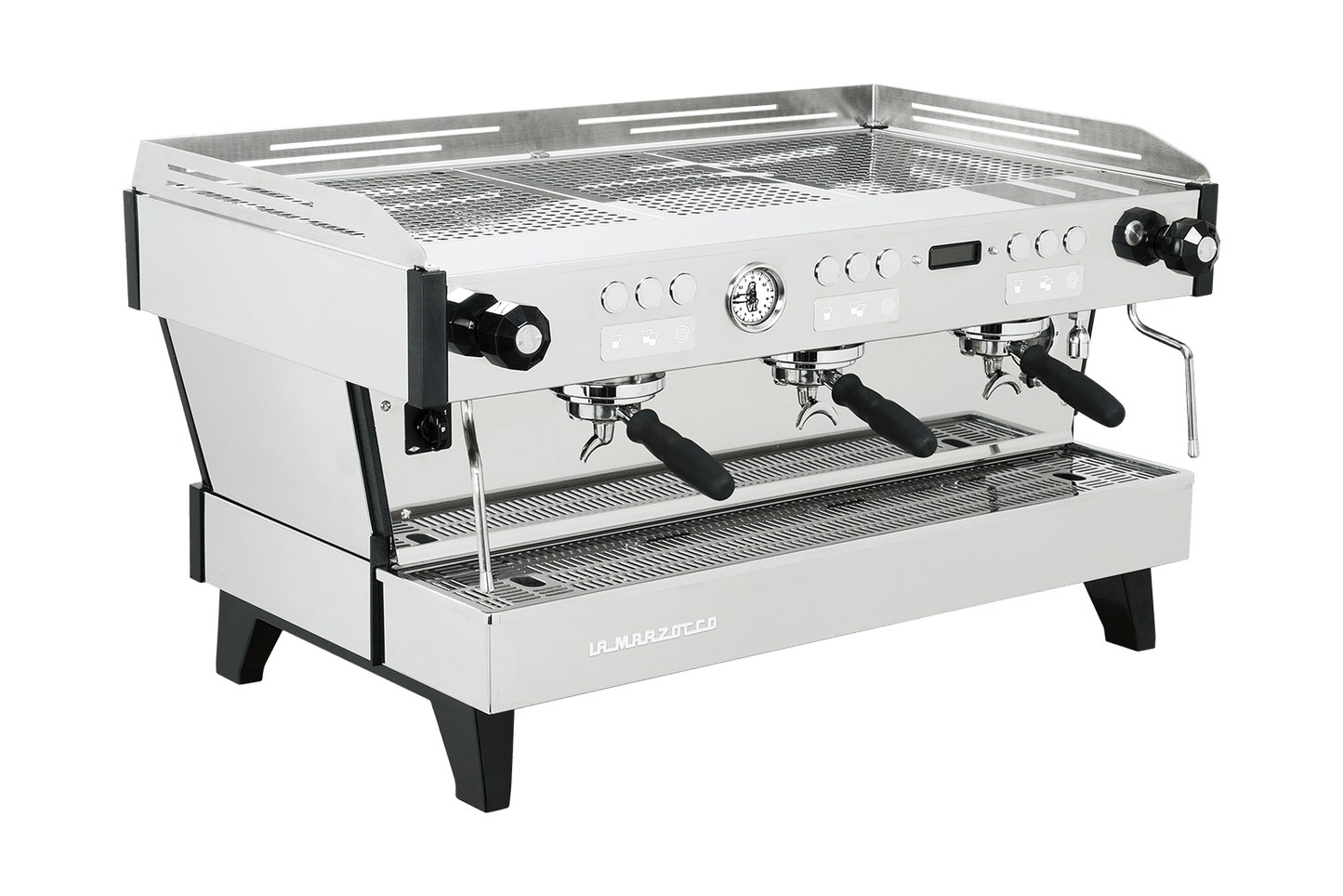

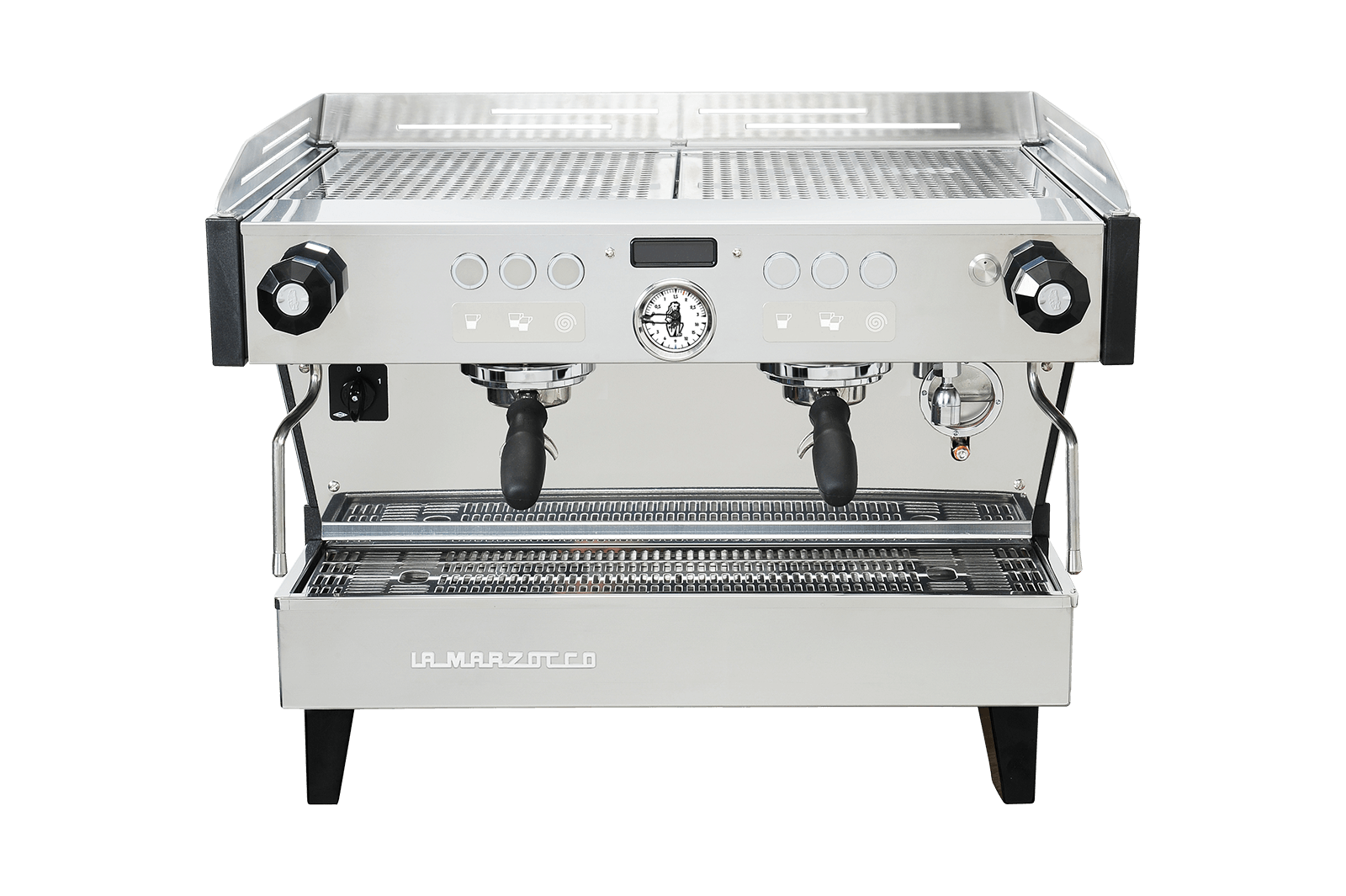

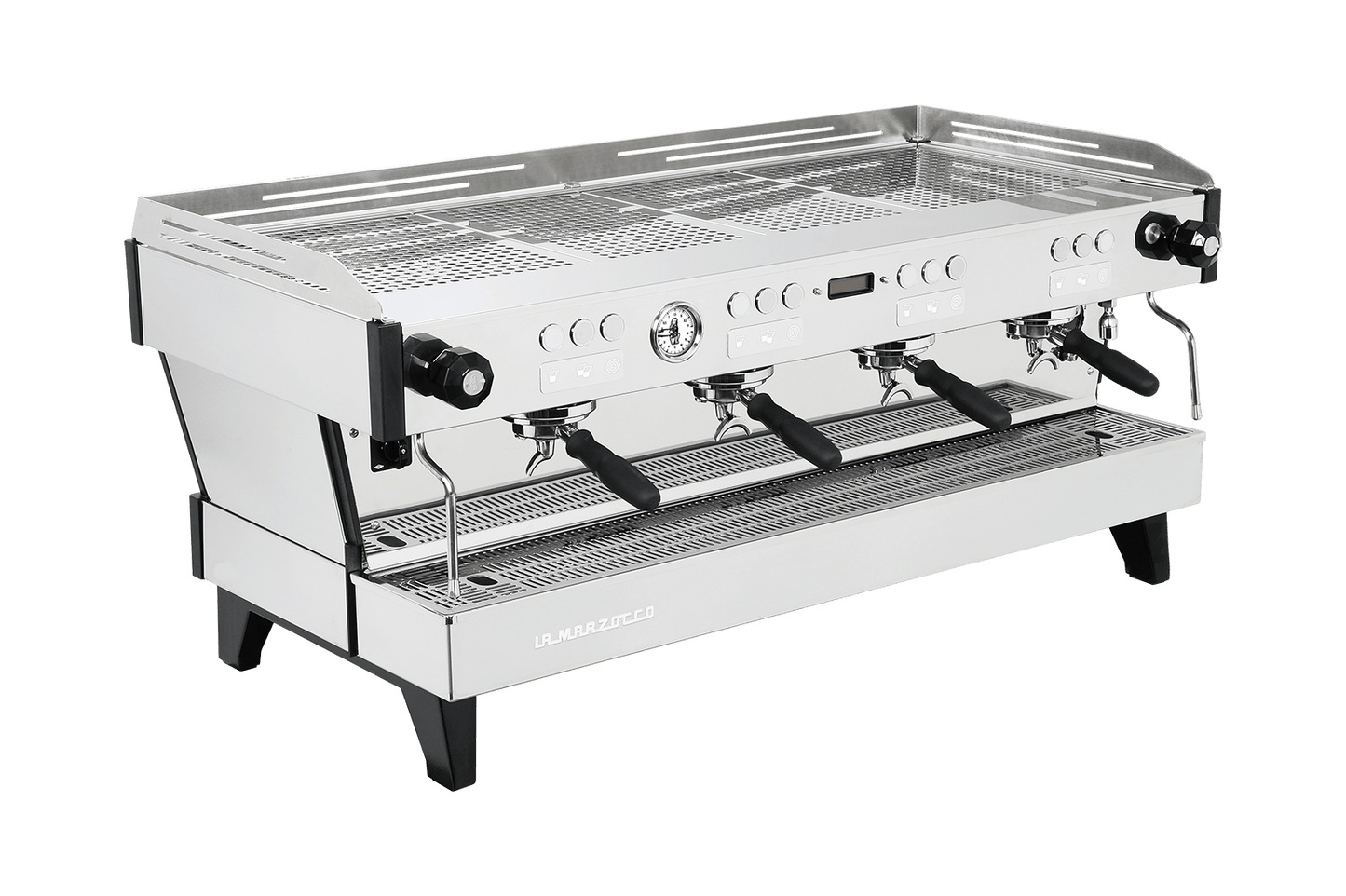

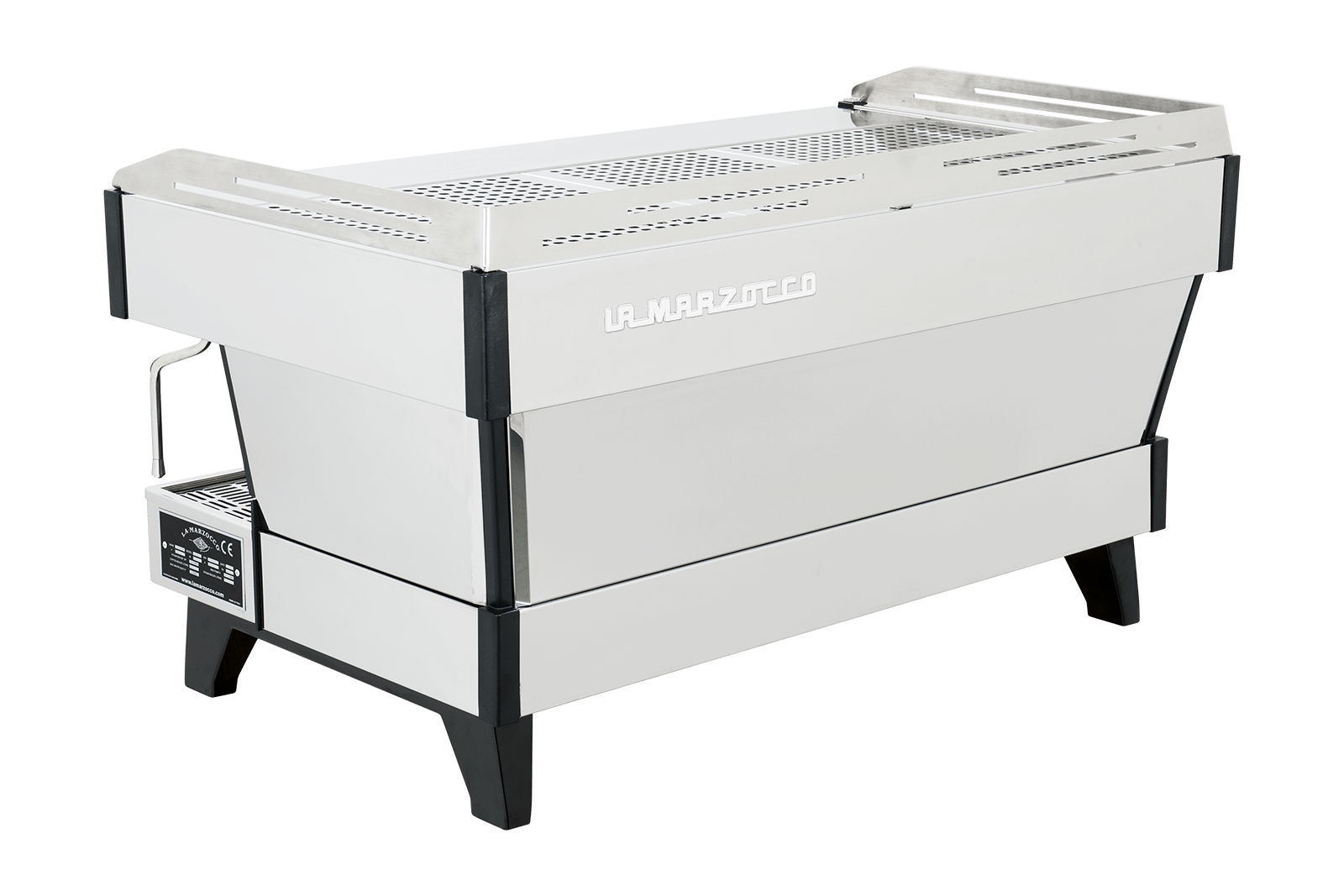

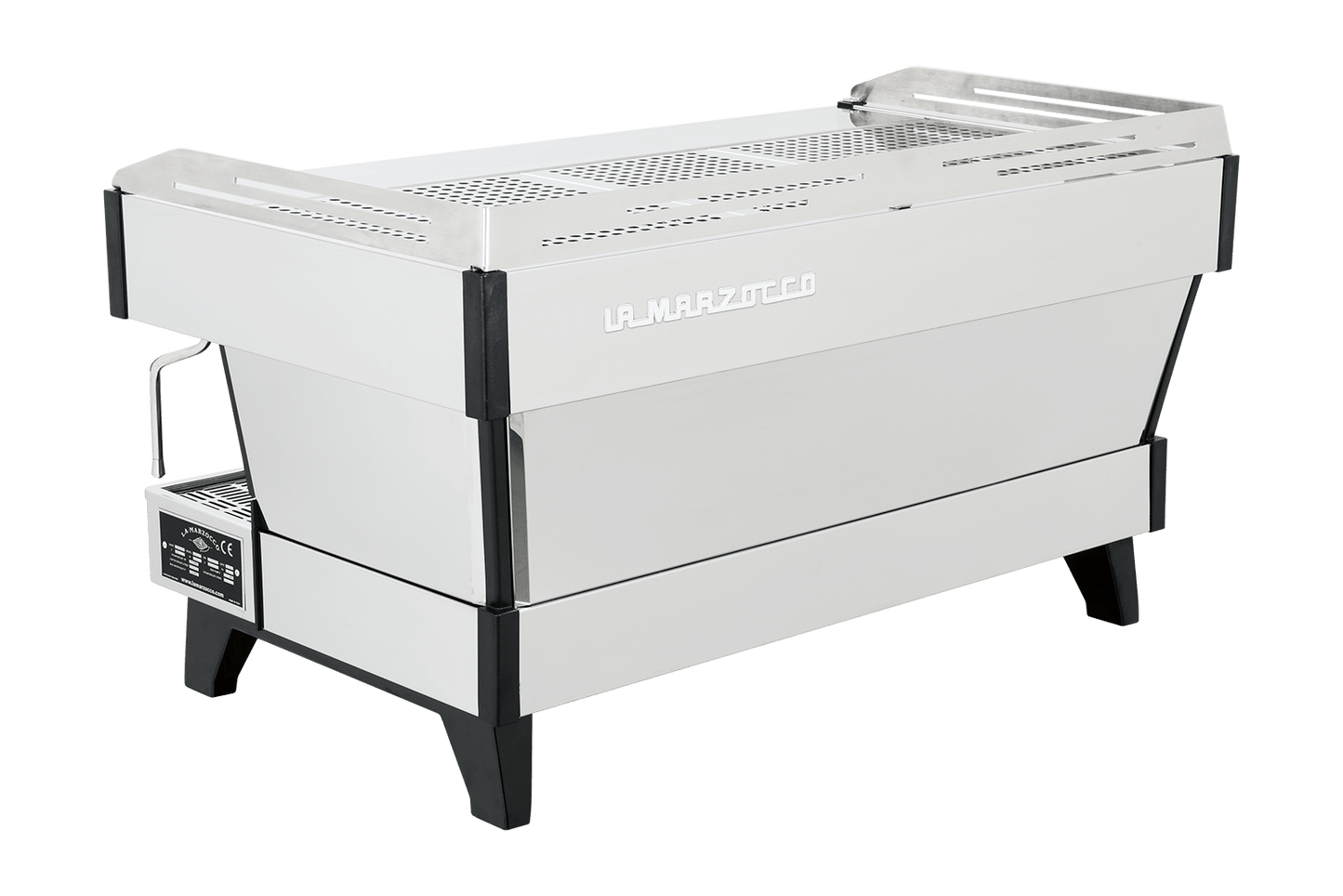

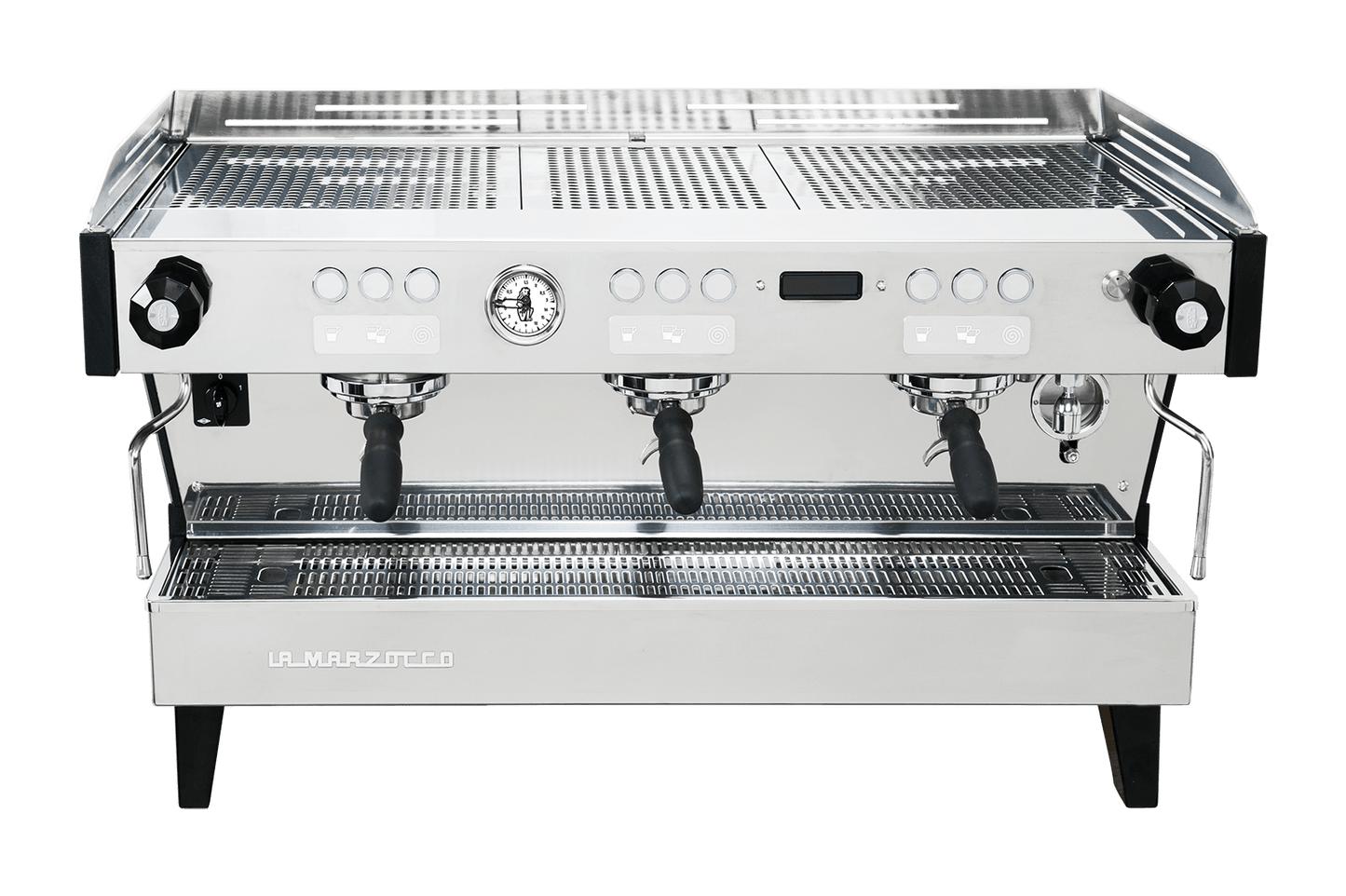

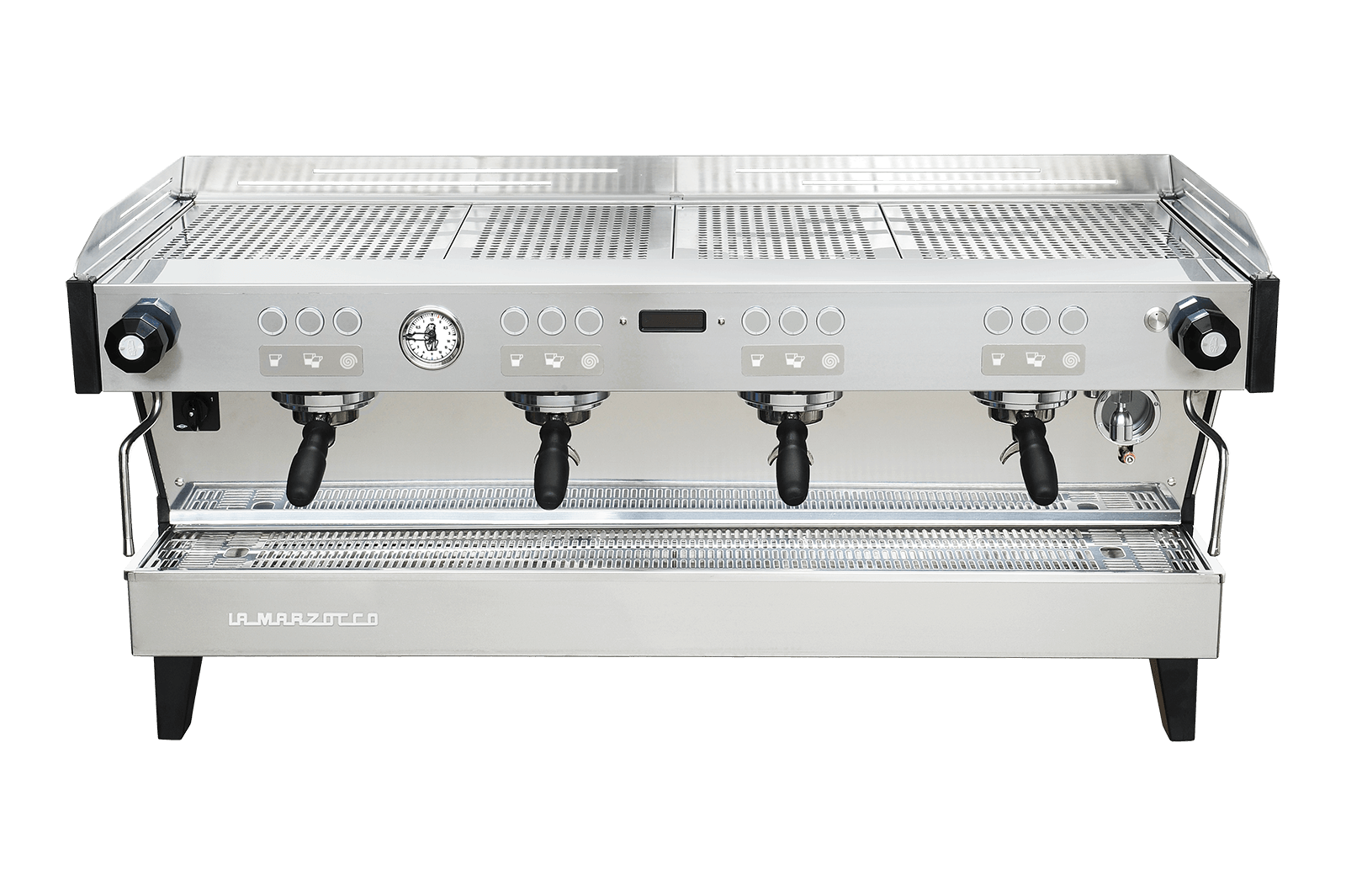

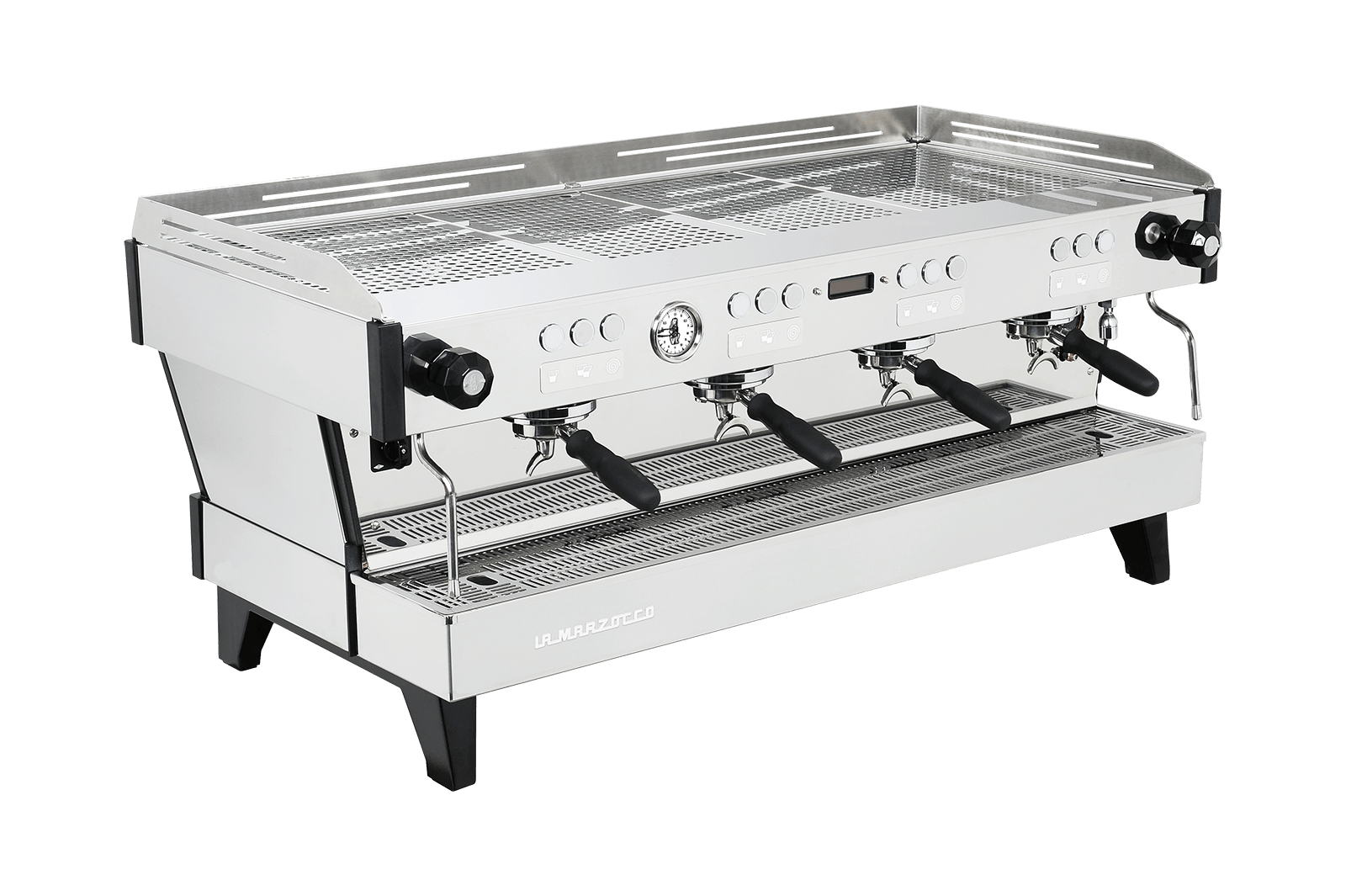

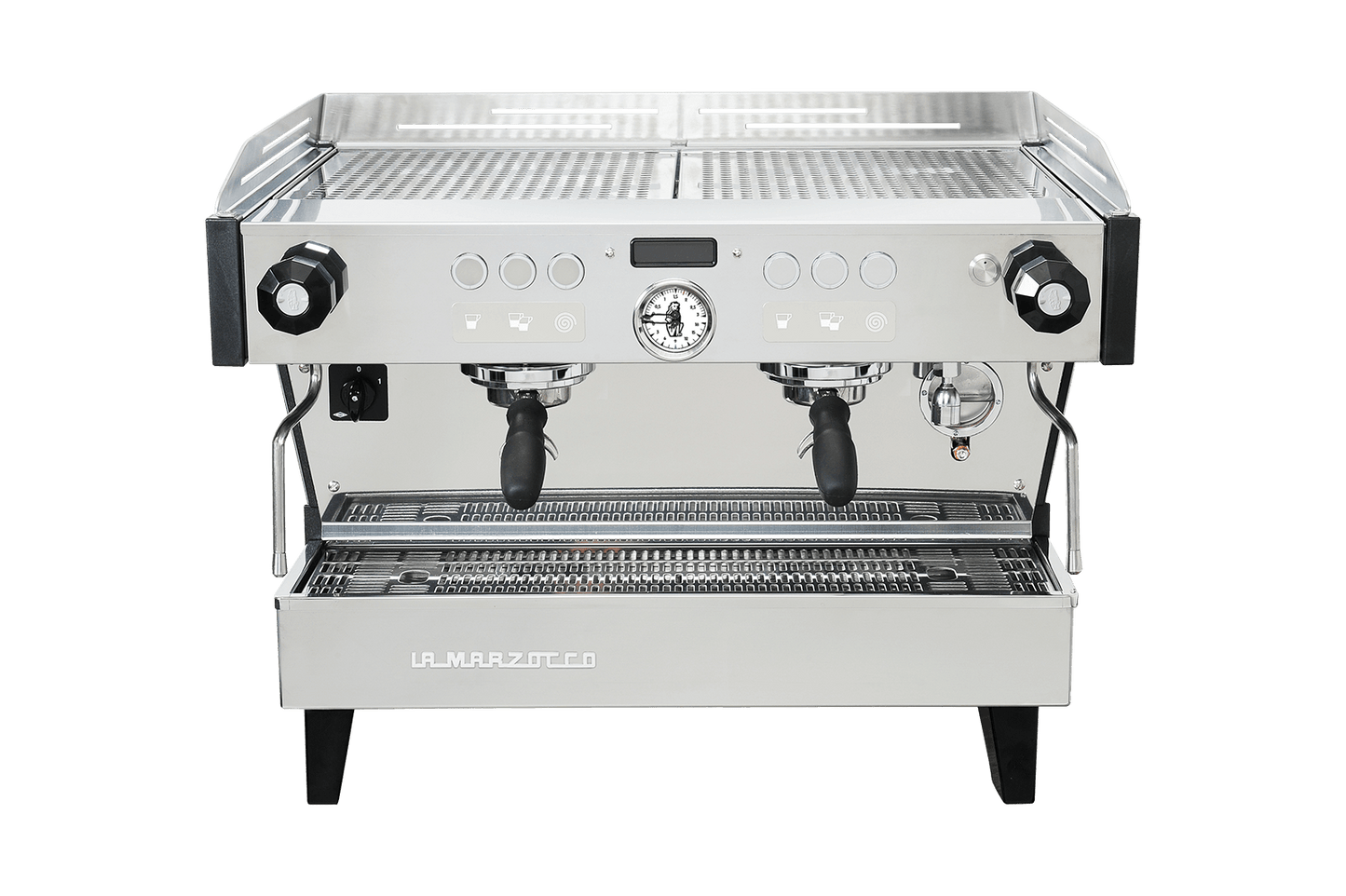

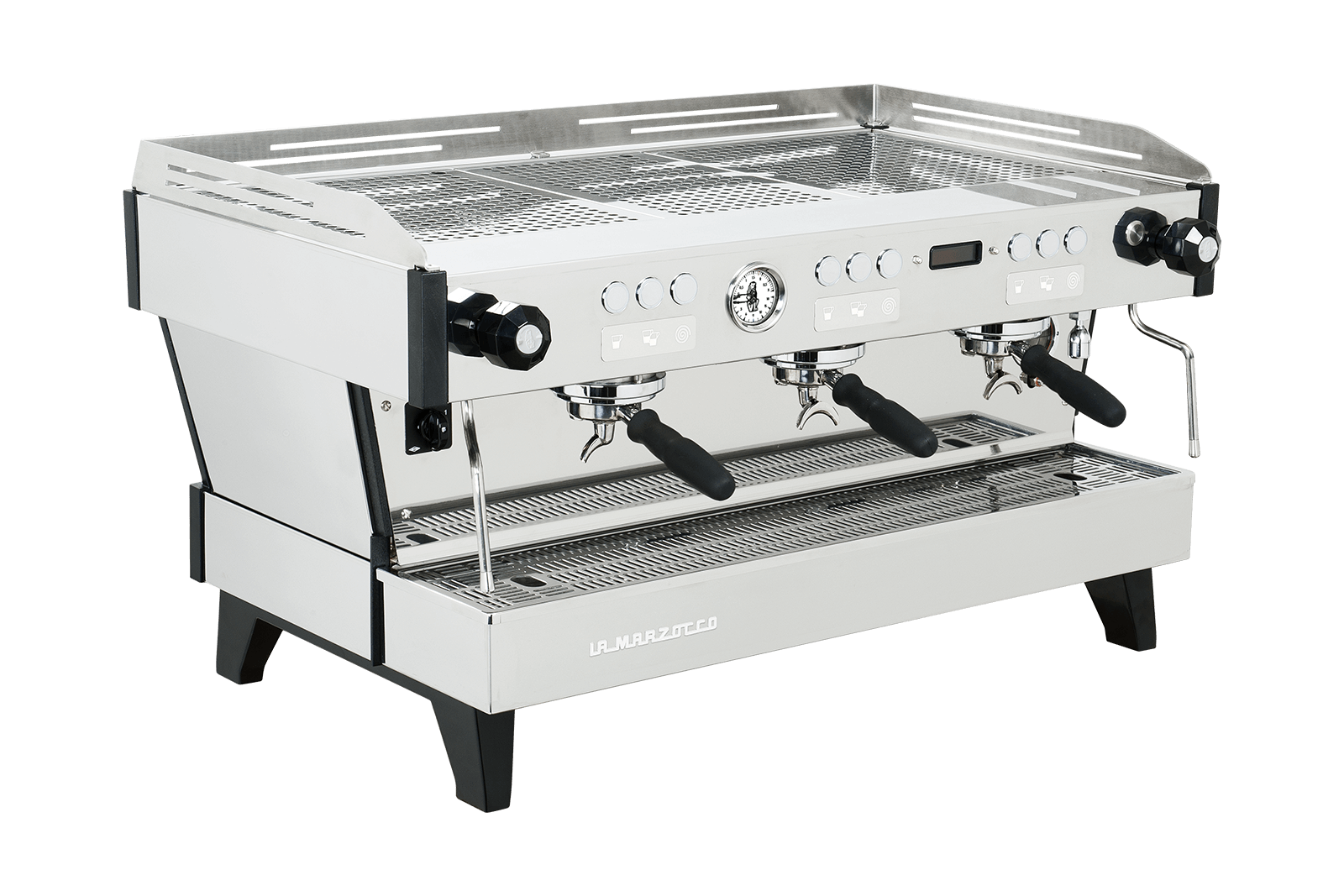

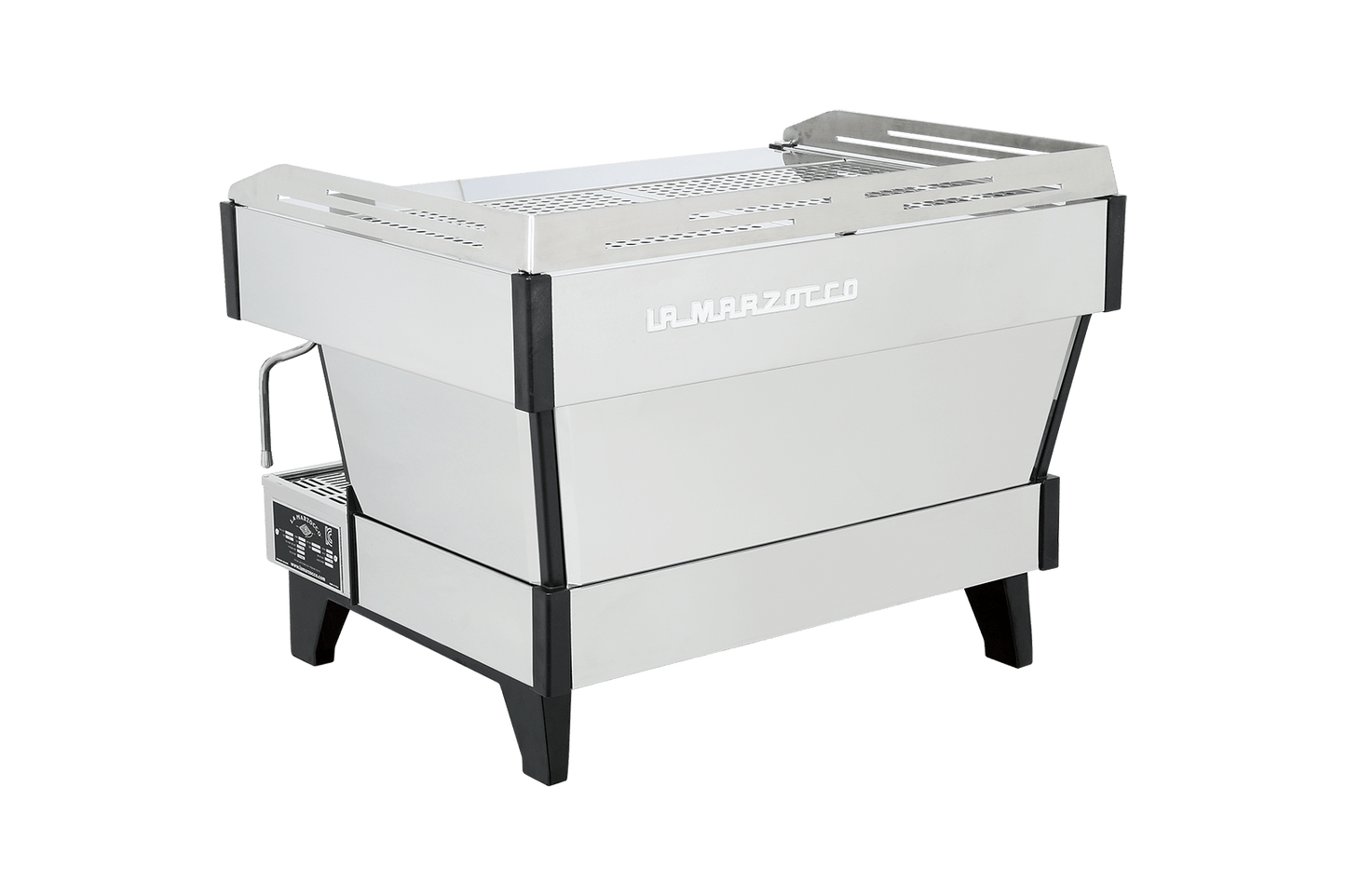

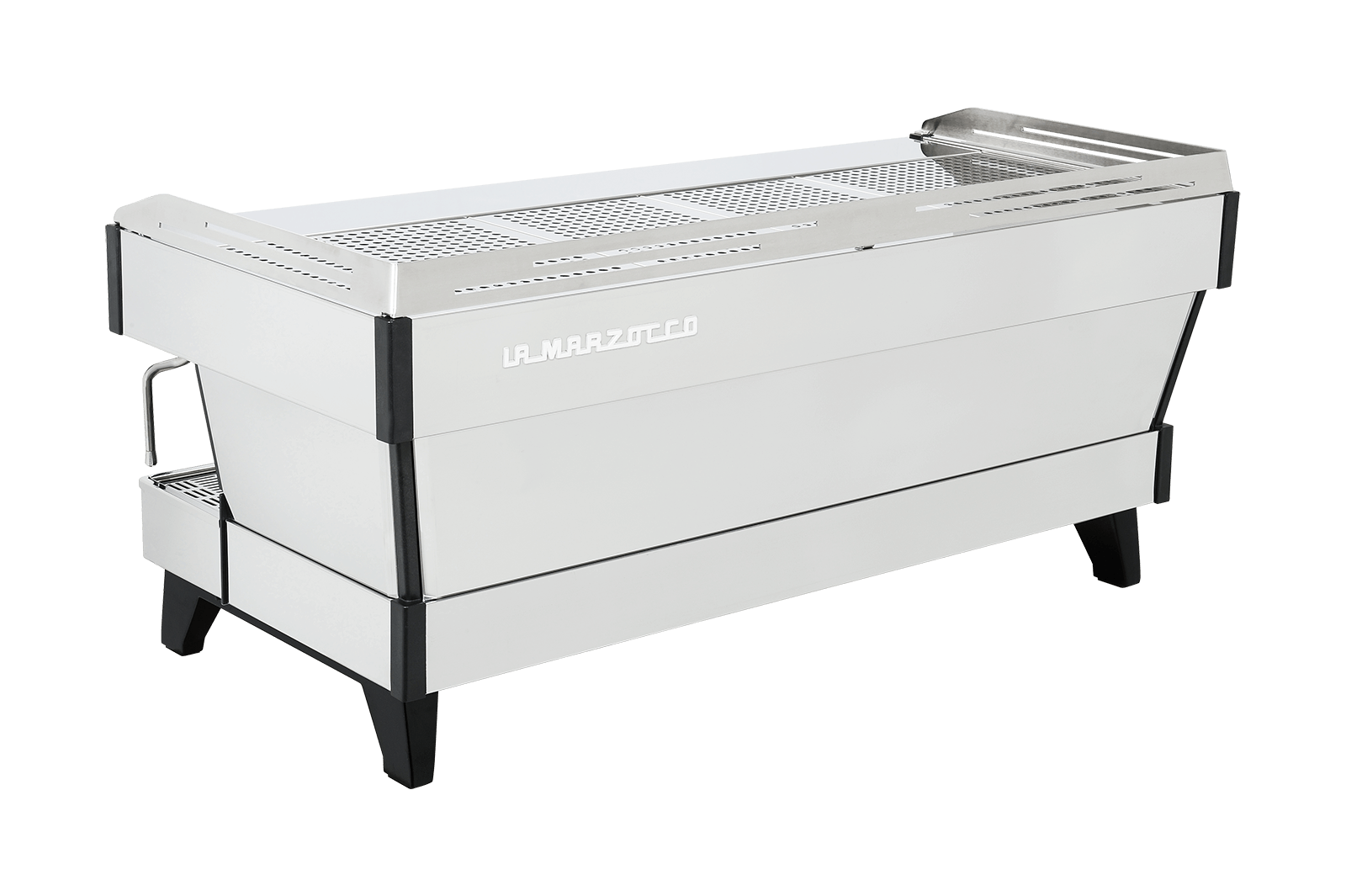

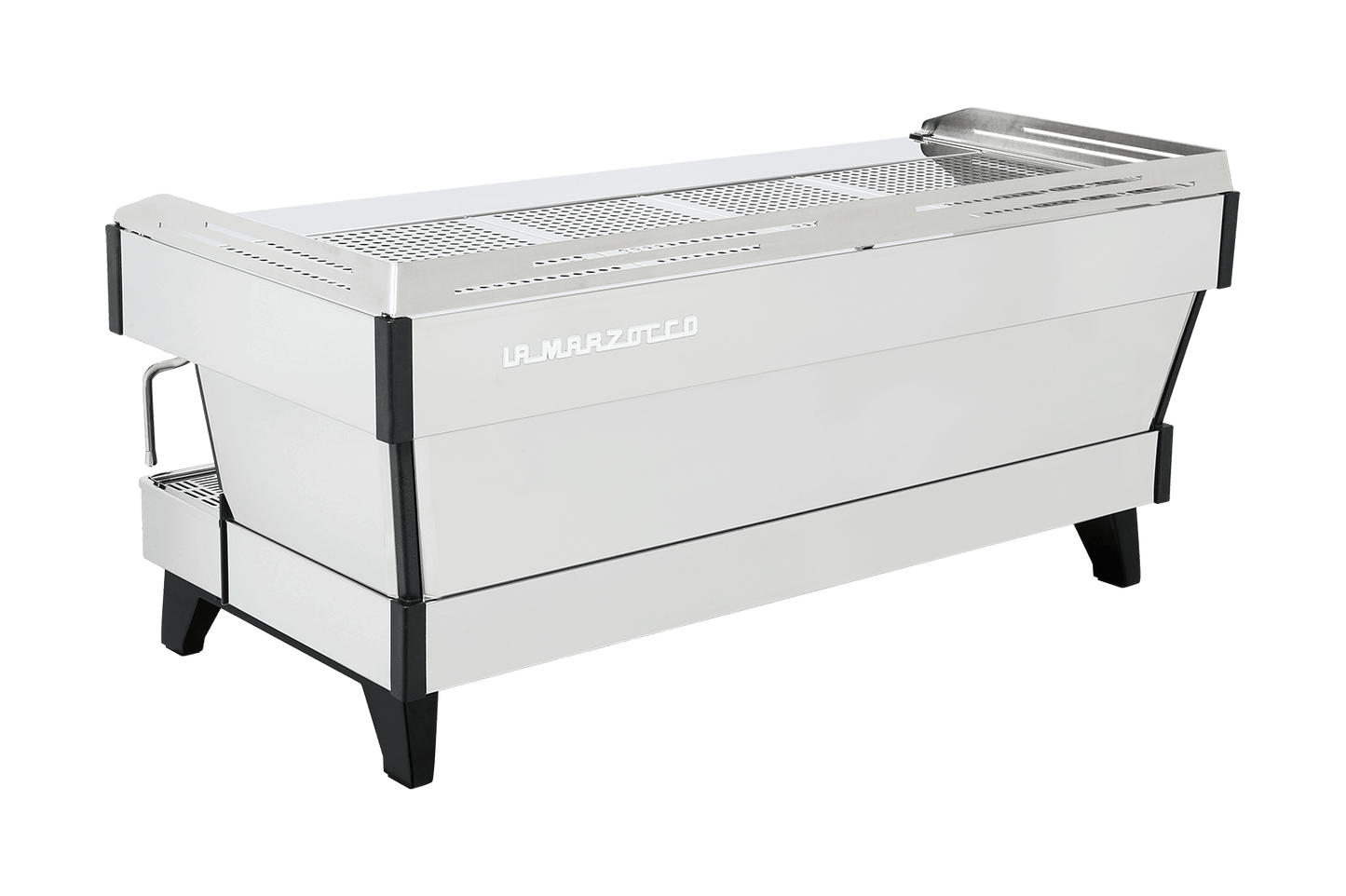

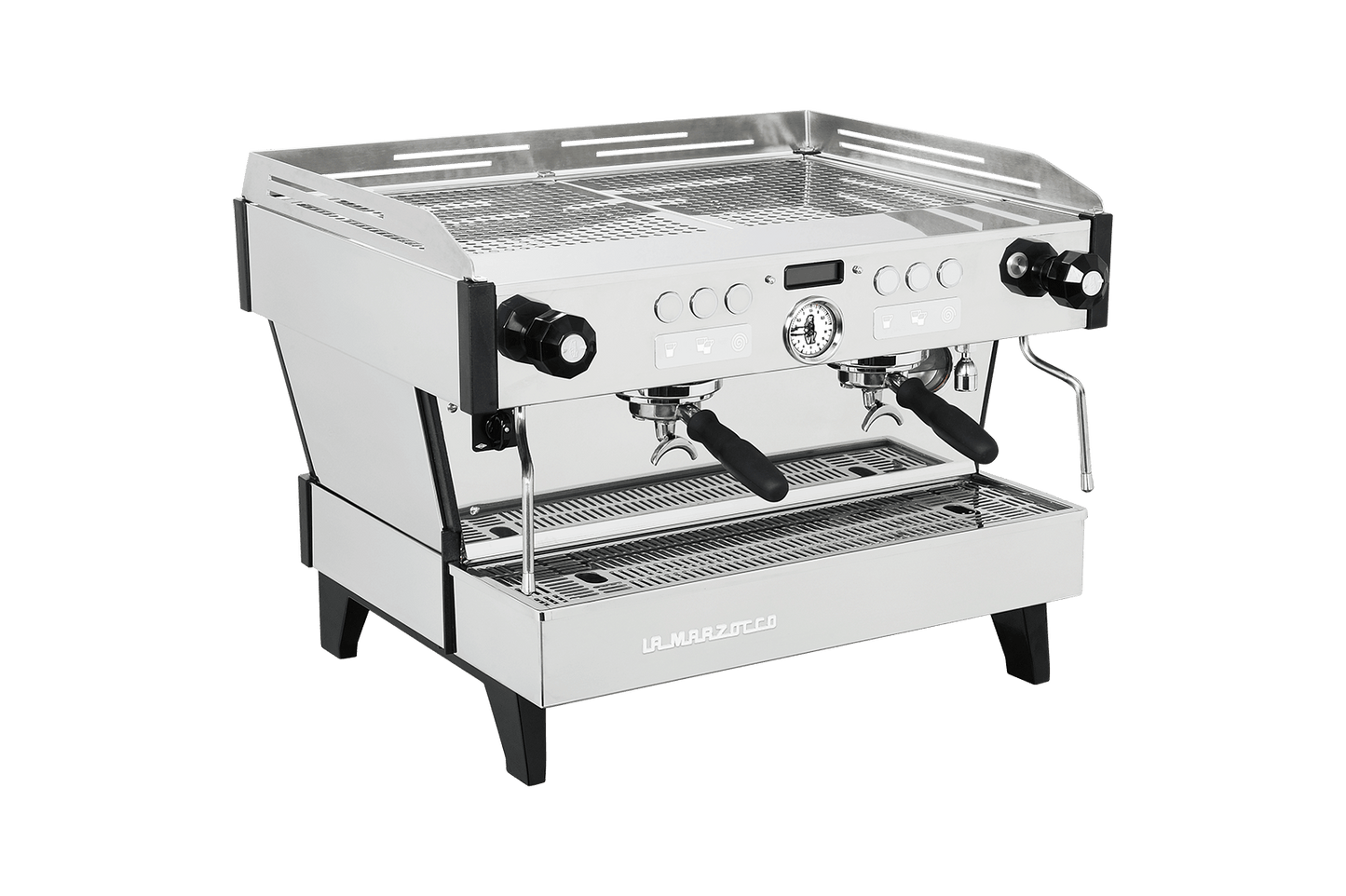

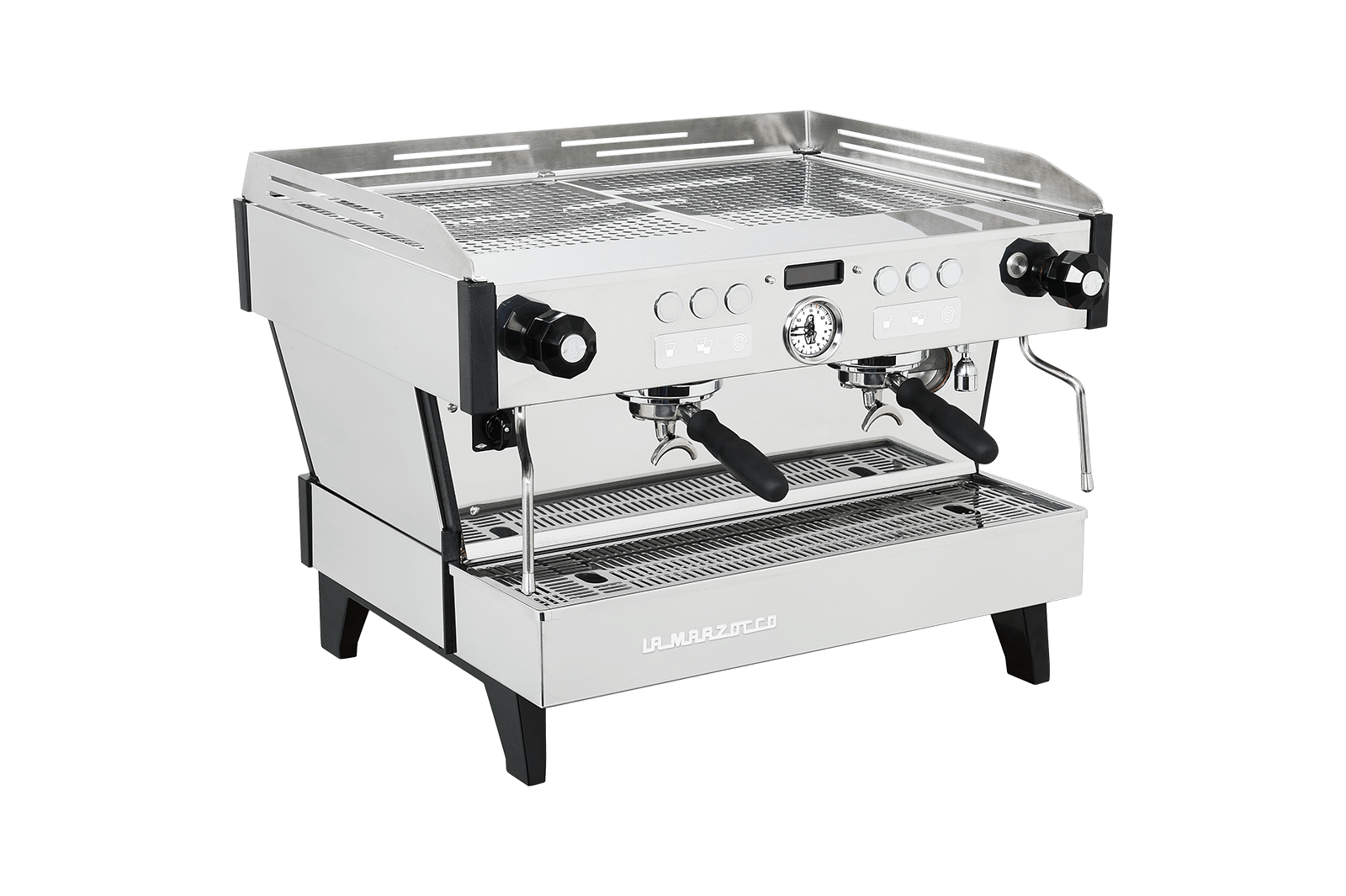

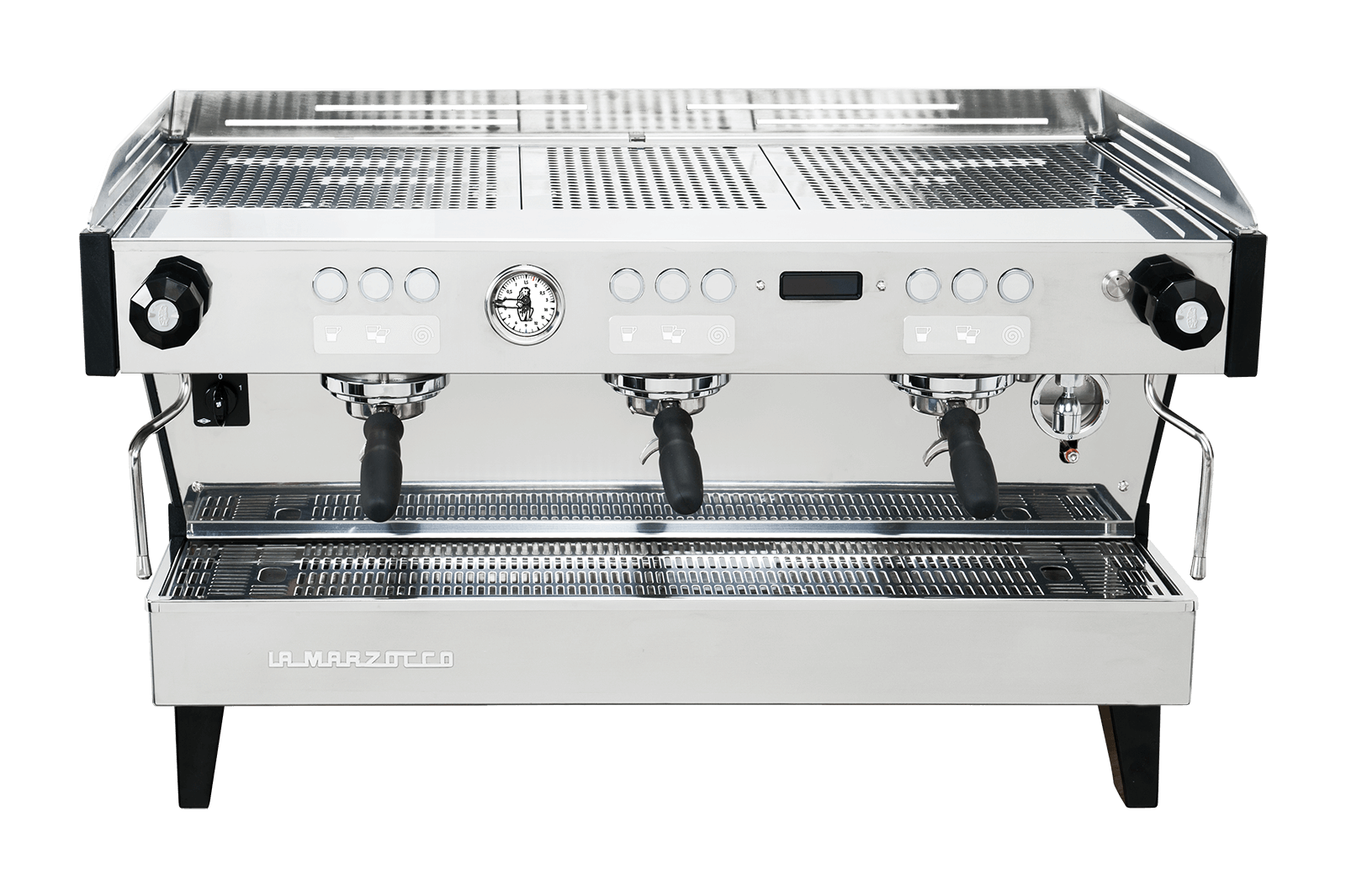

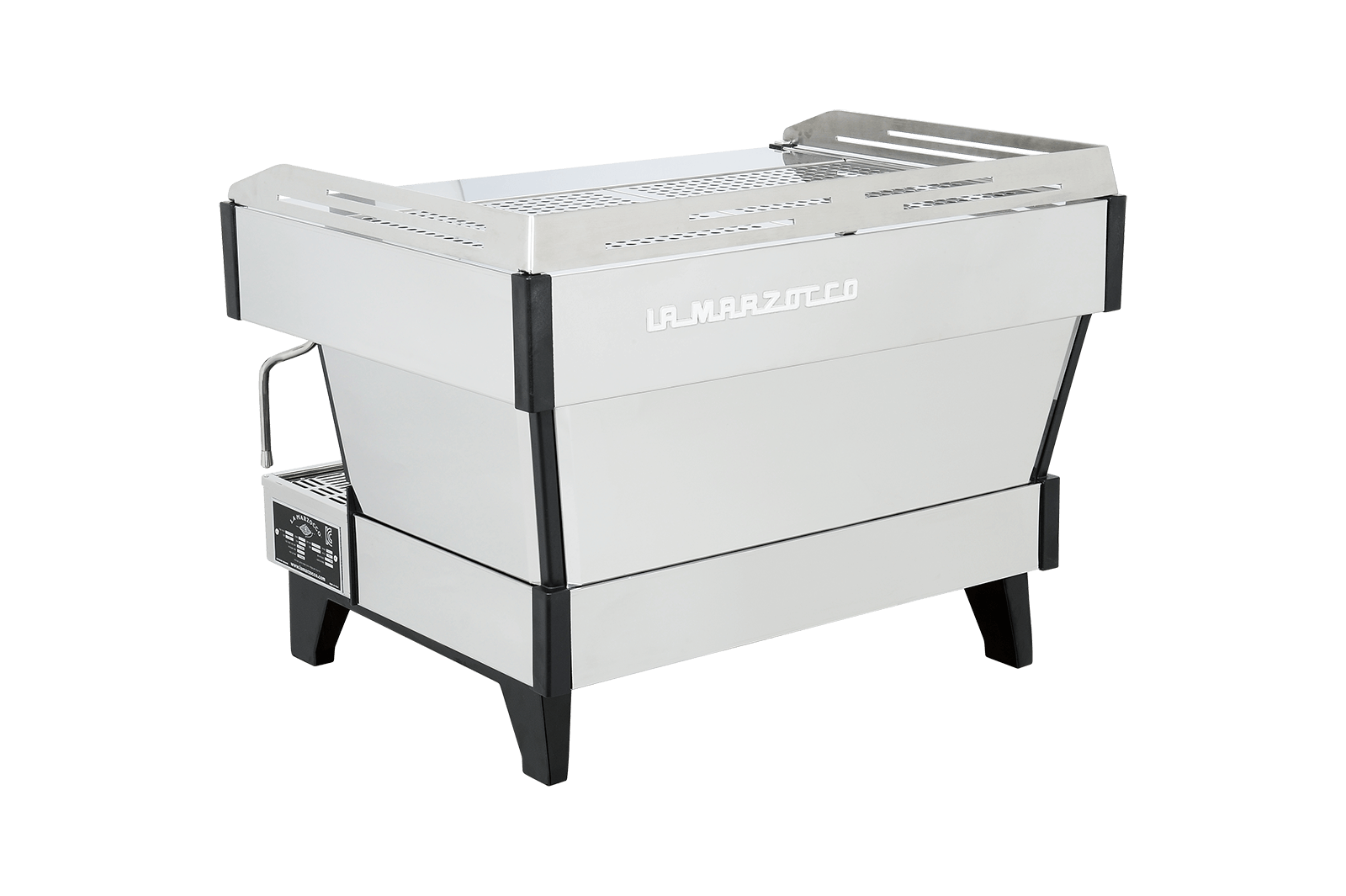

High legs – special order

Makes it easier to access beneath the machine.

Personalized colors – special order

Customizable colors based on the RAL color system, on request.
