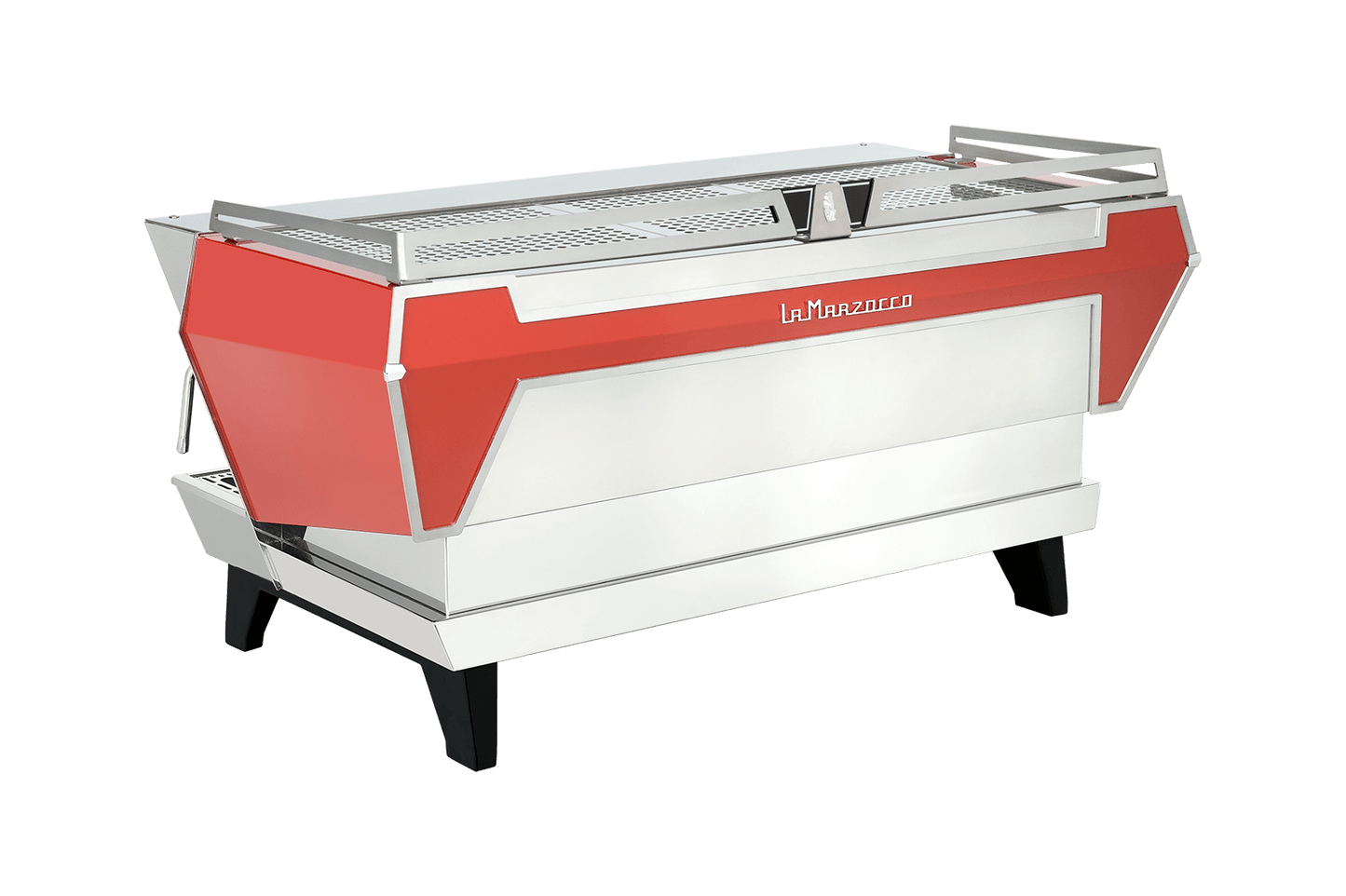

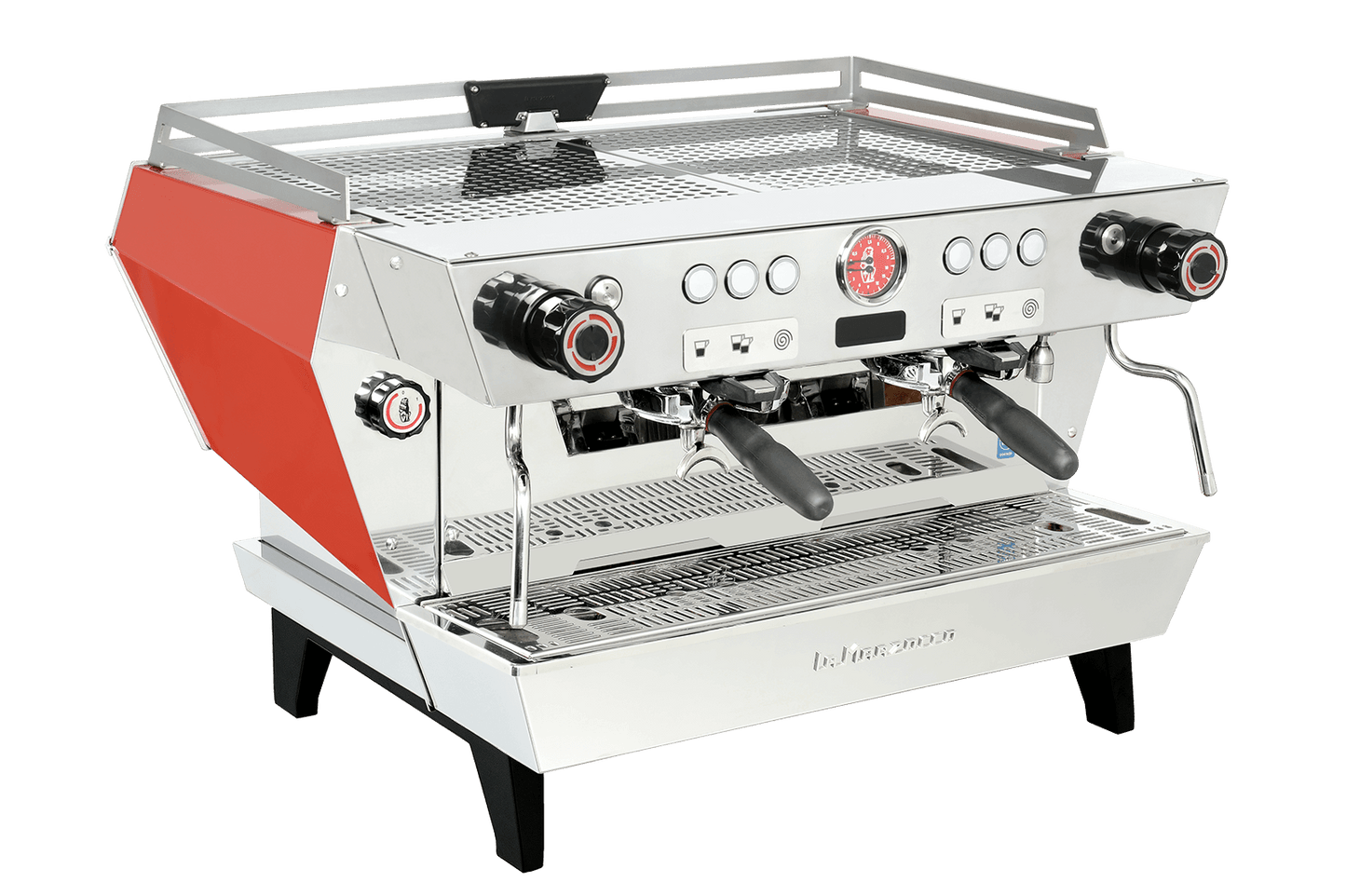

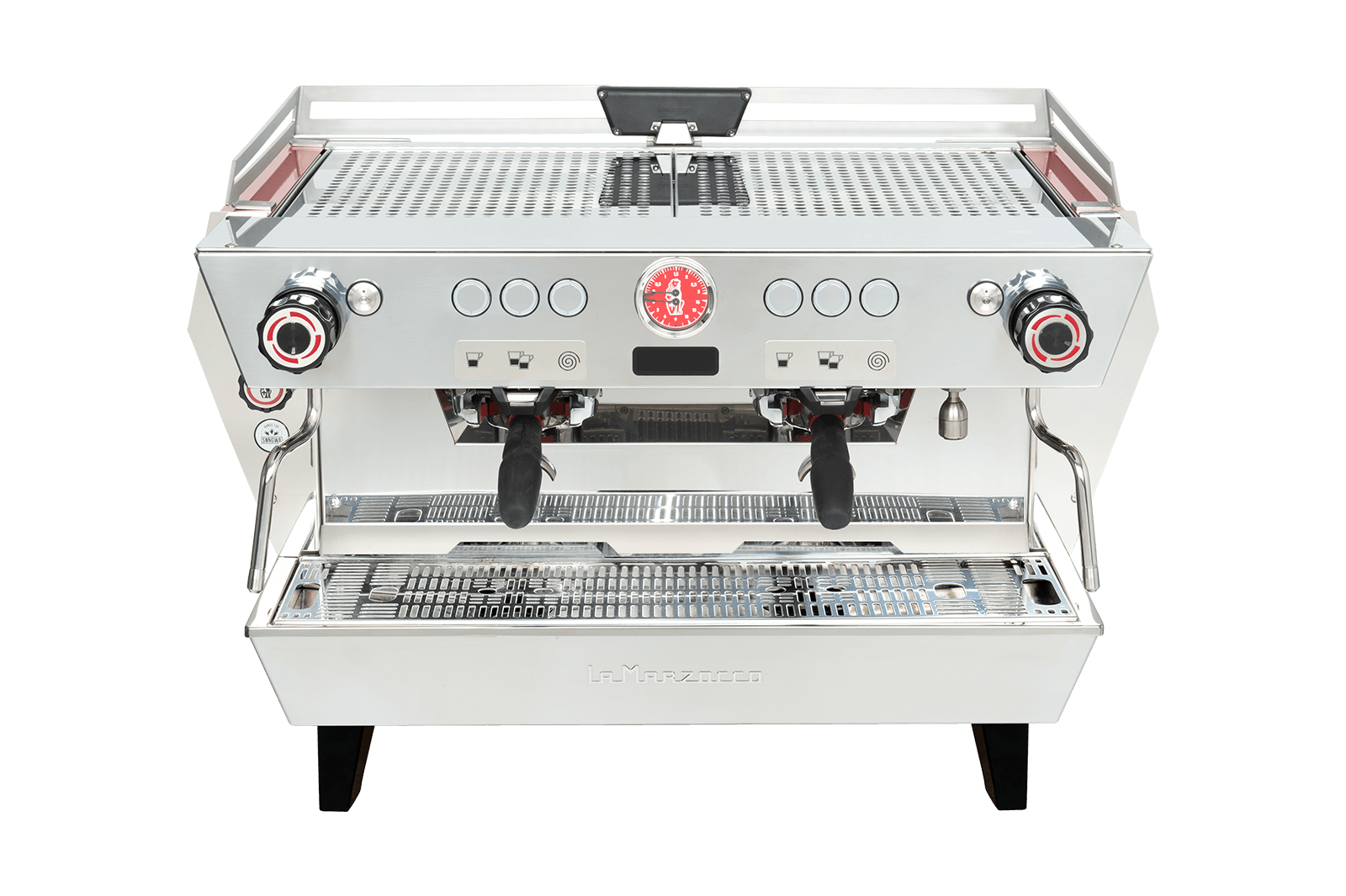

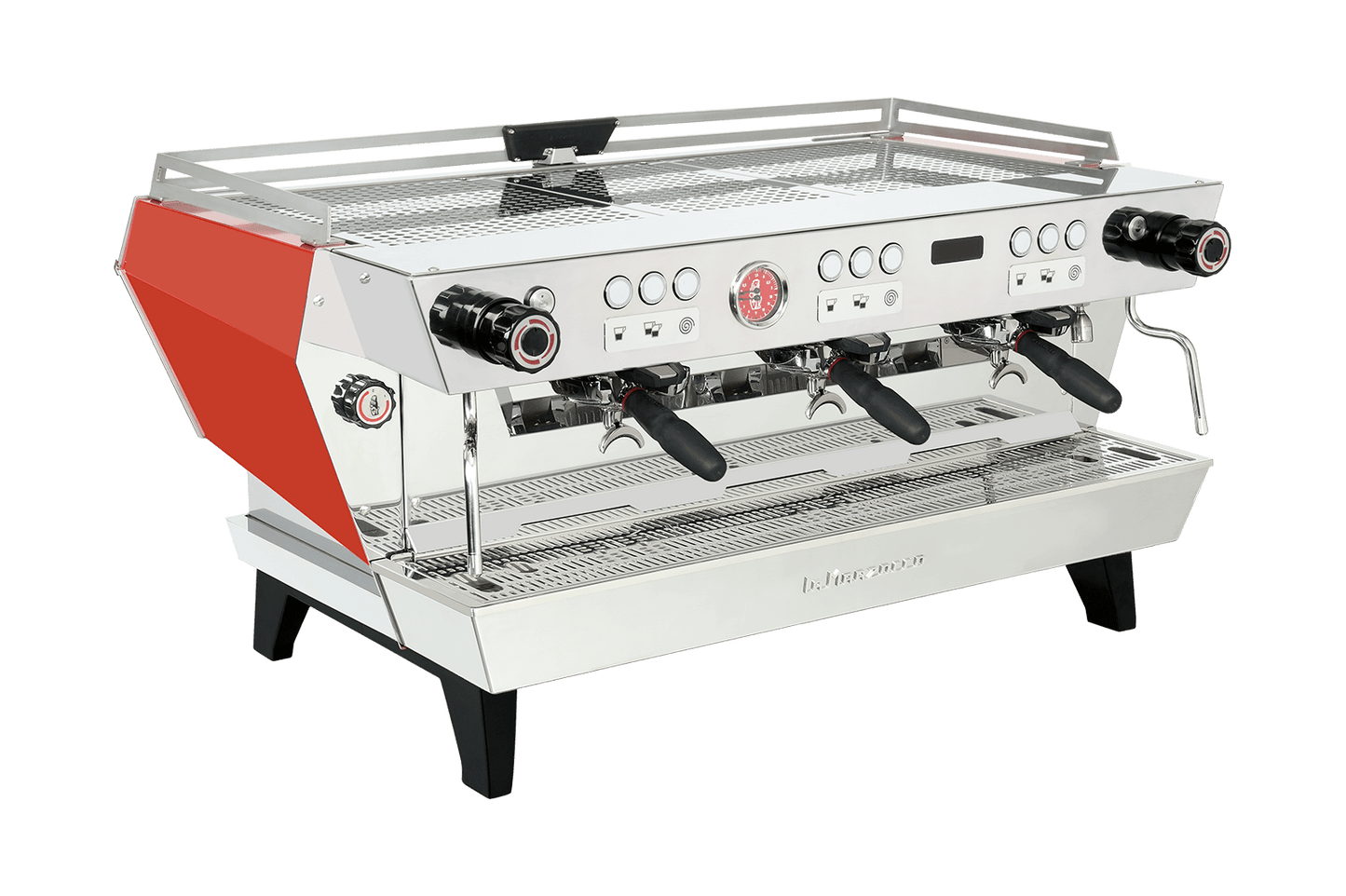

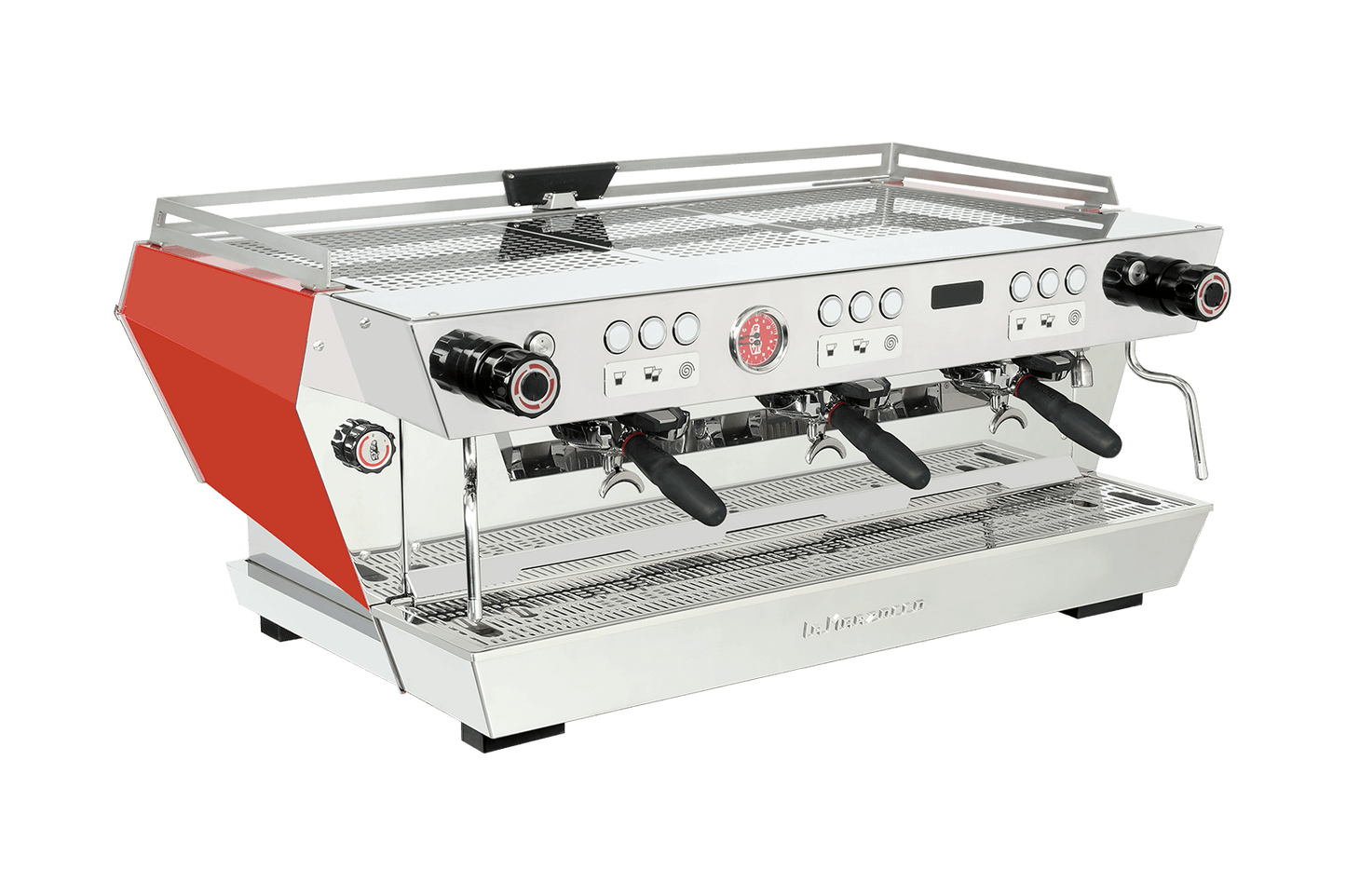

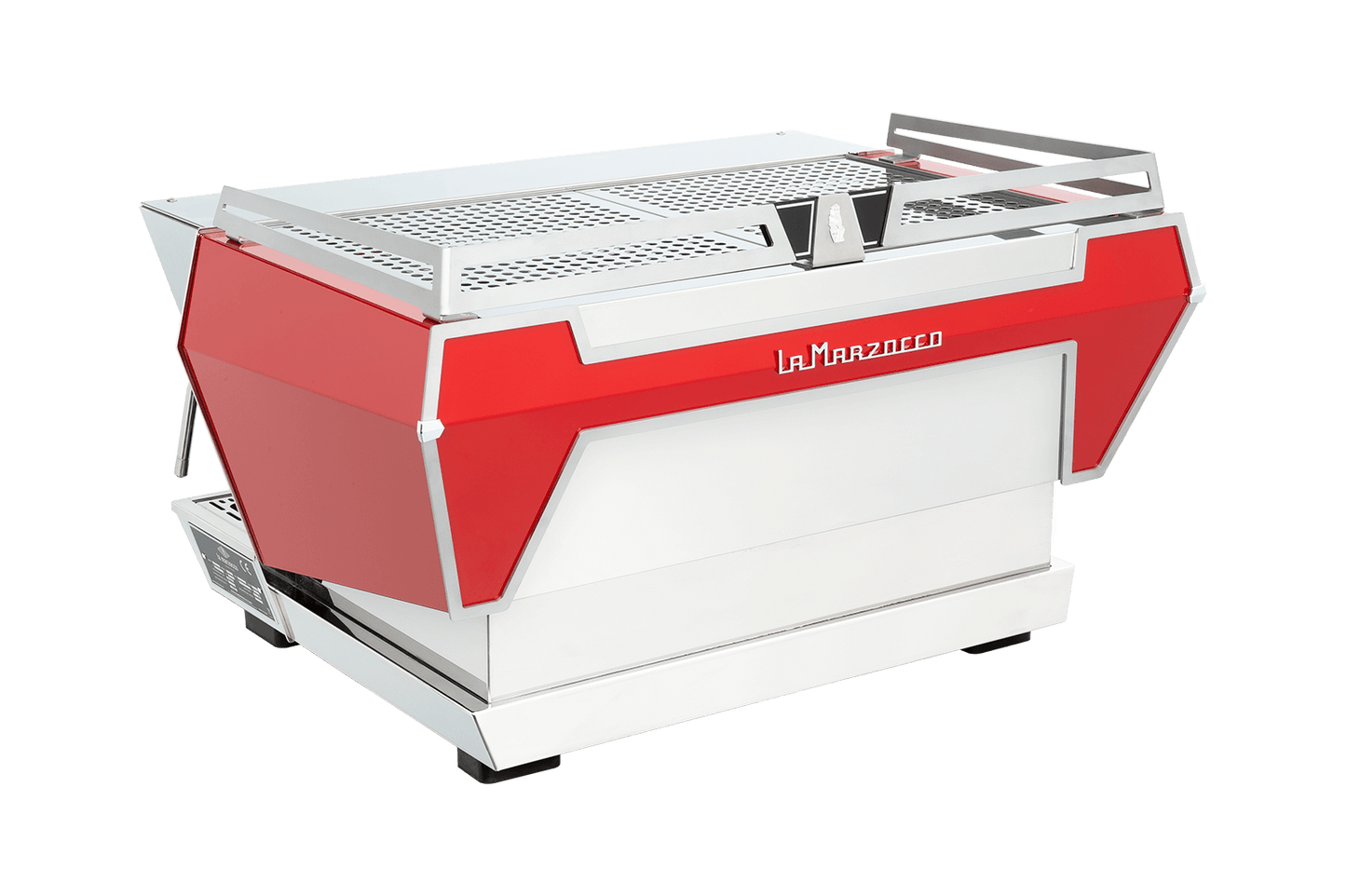

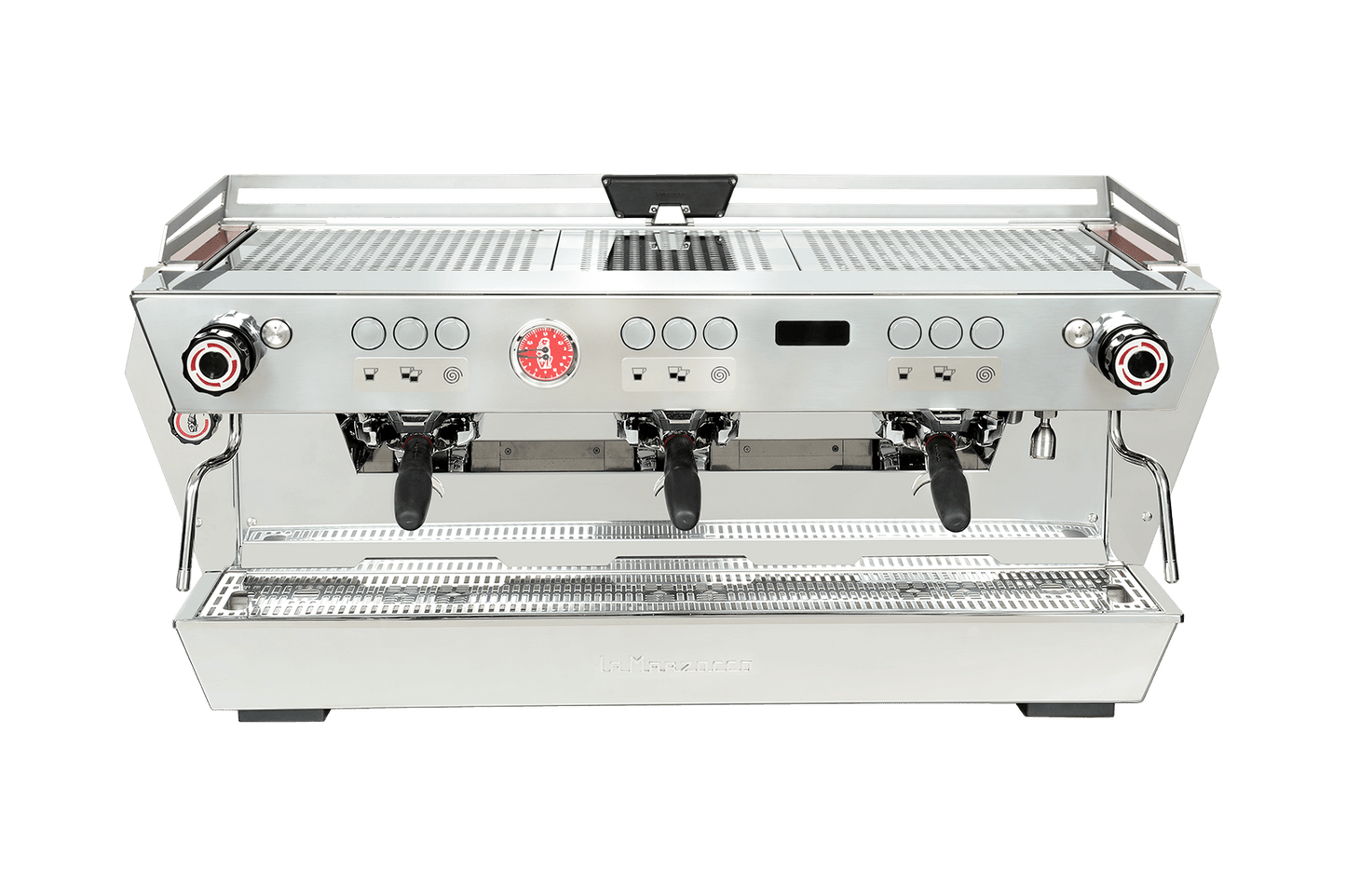

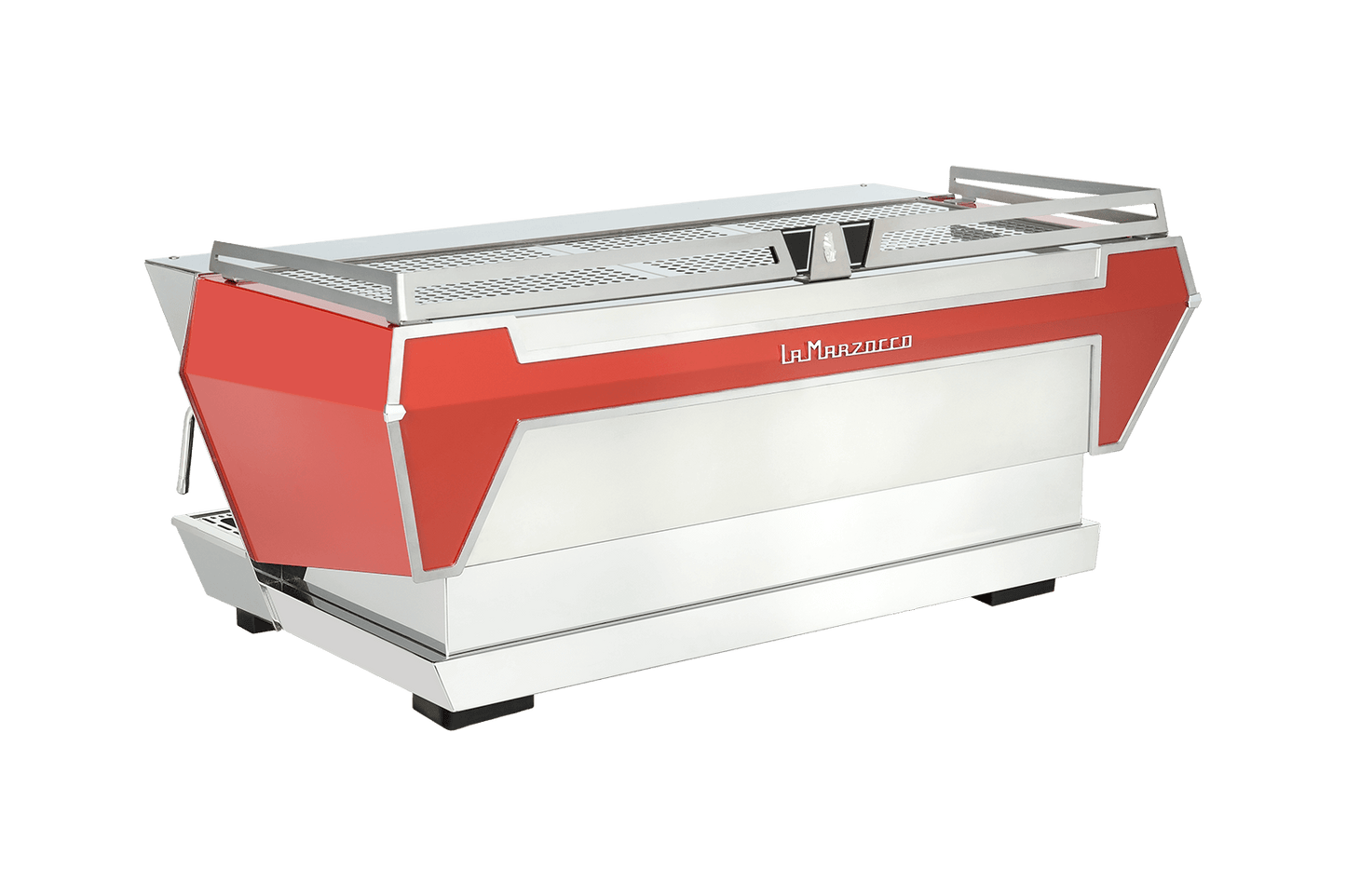

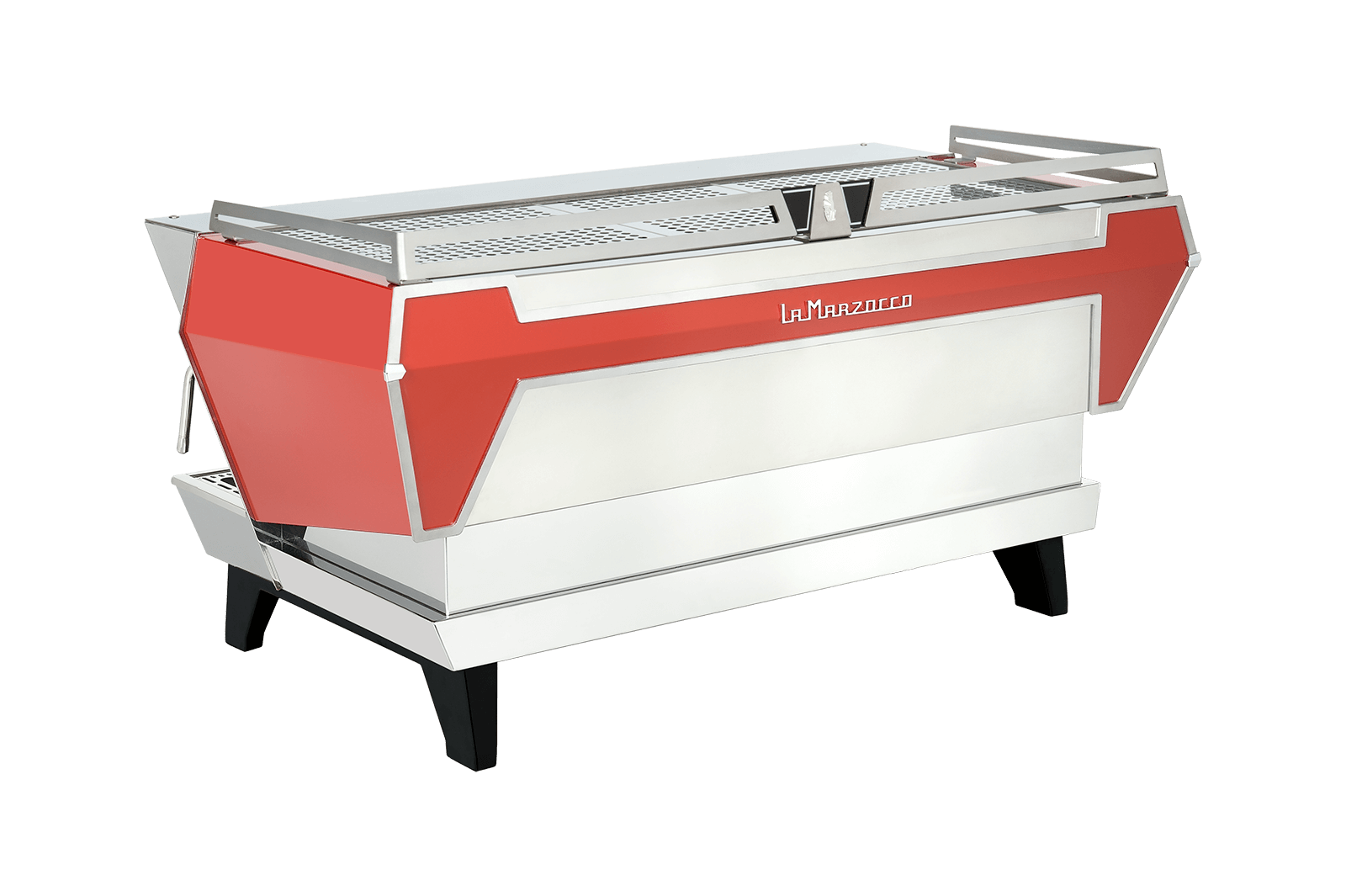

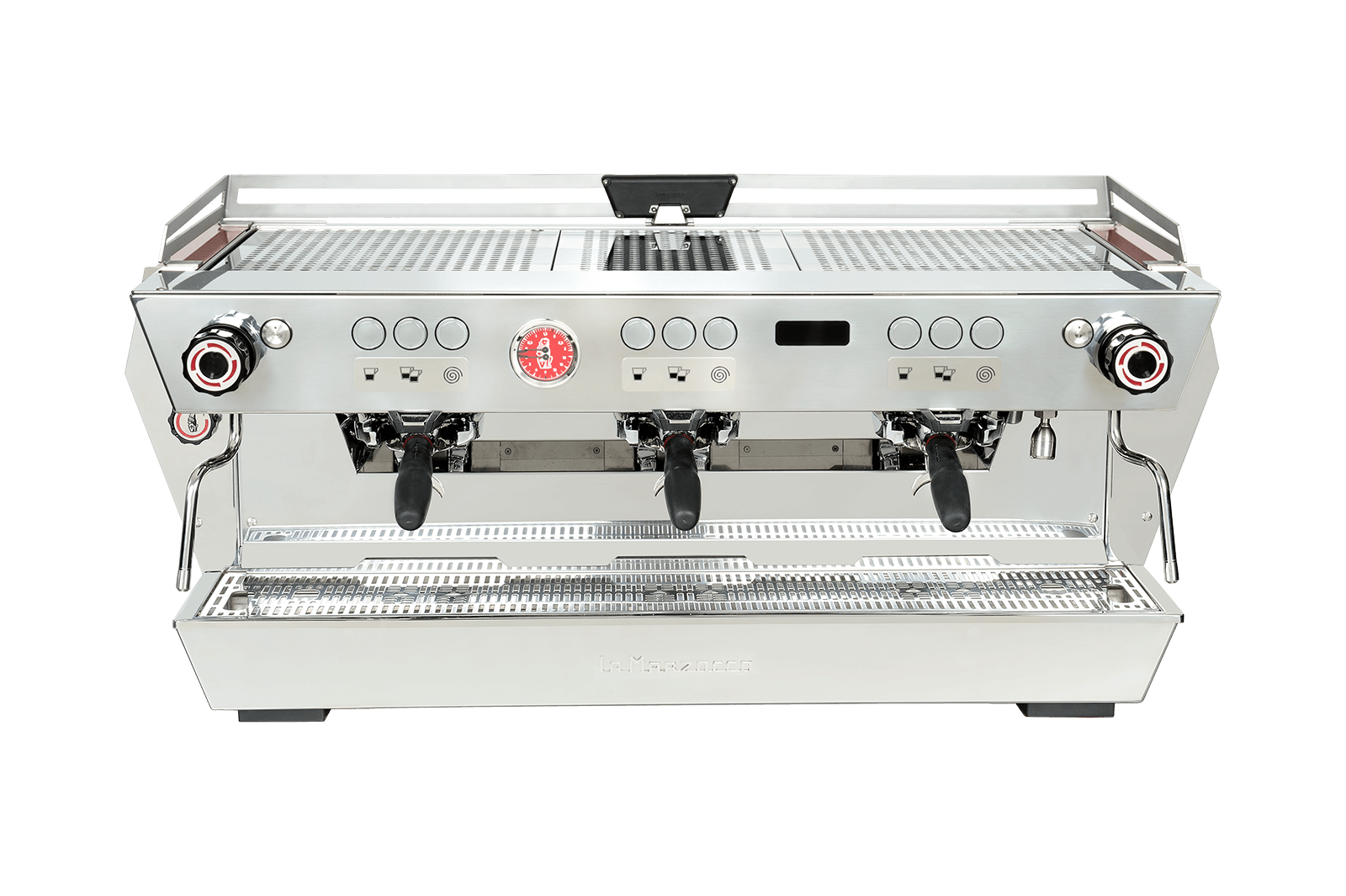

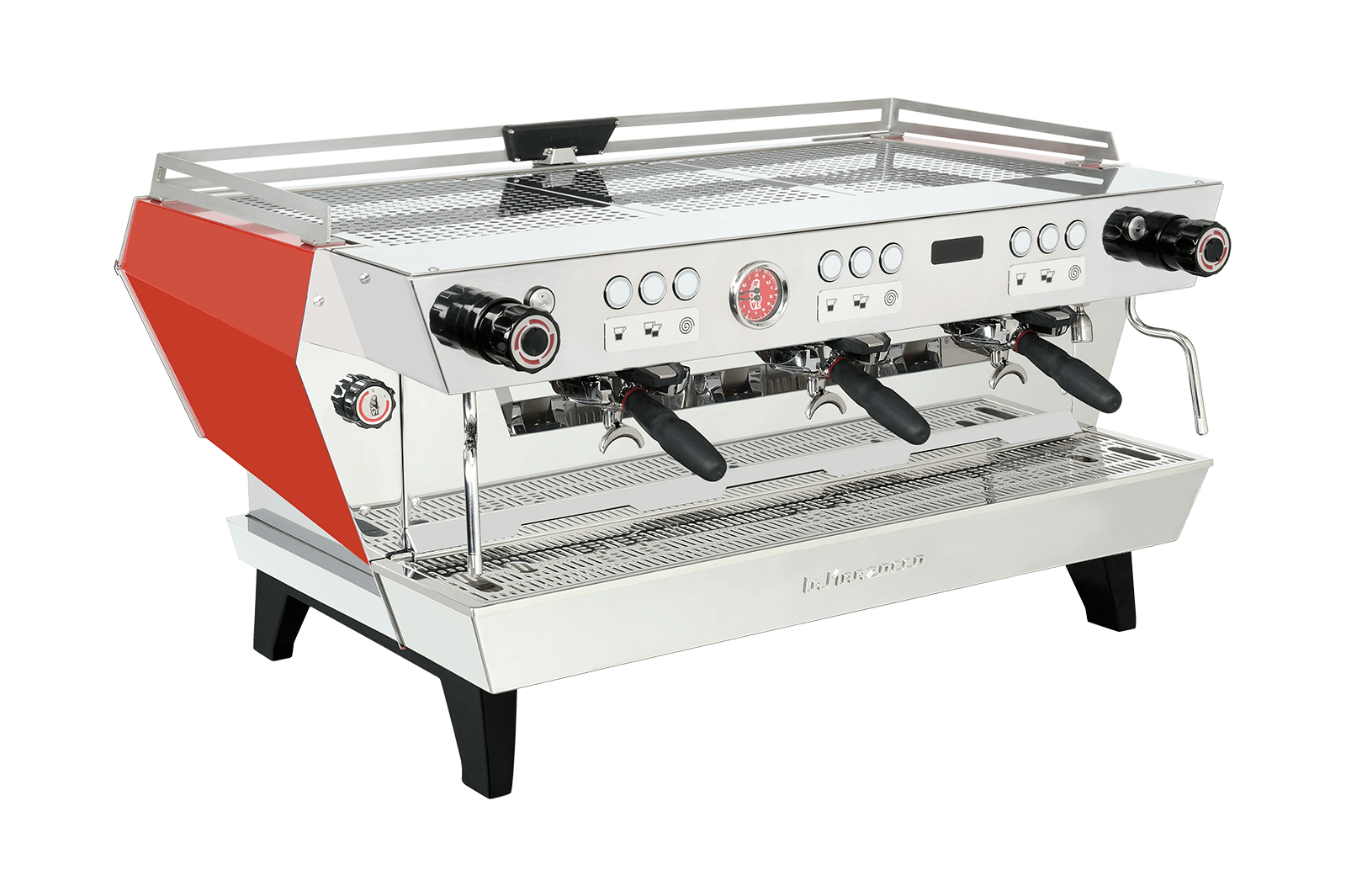

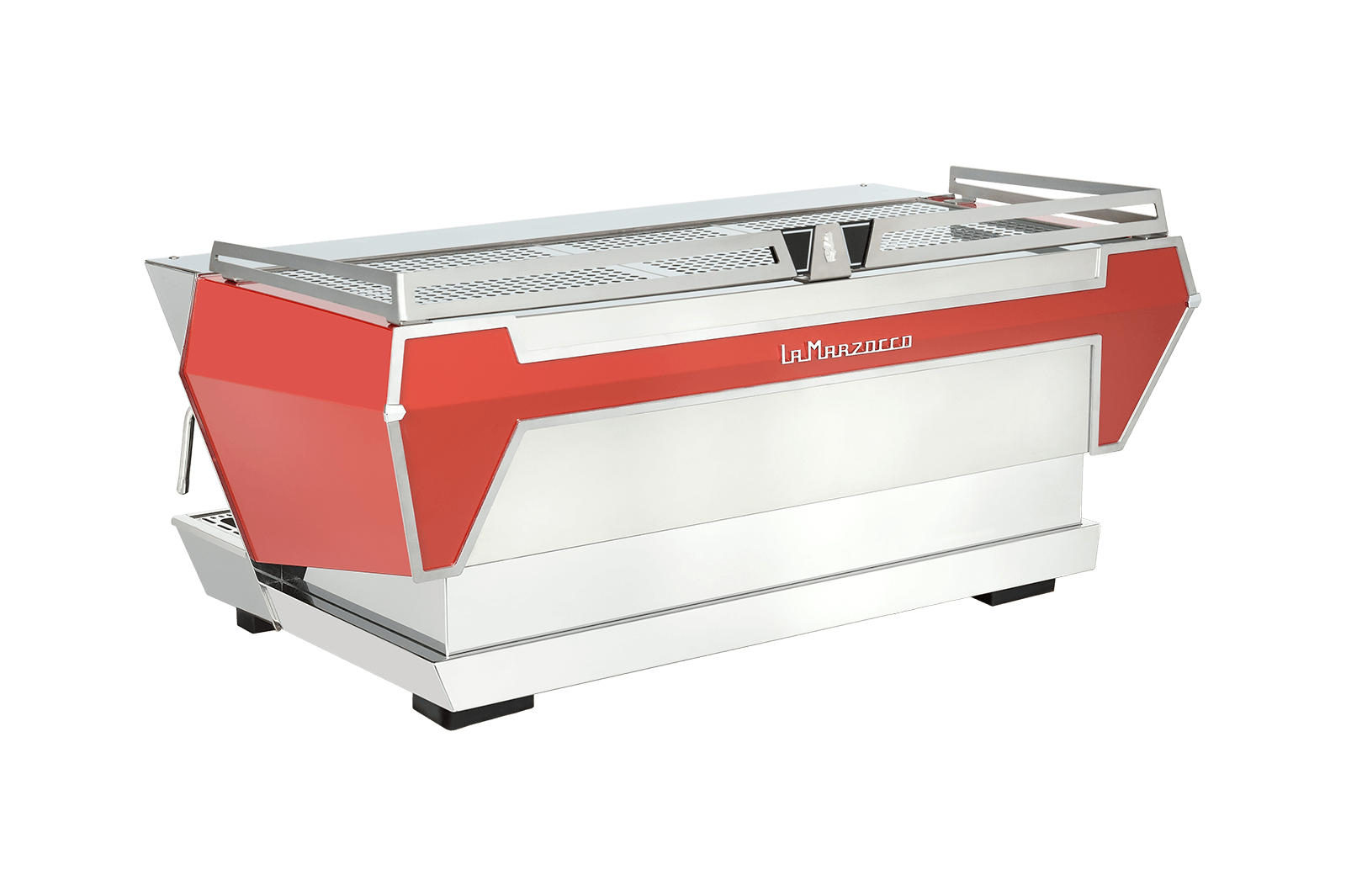

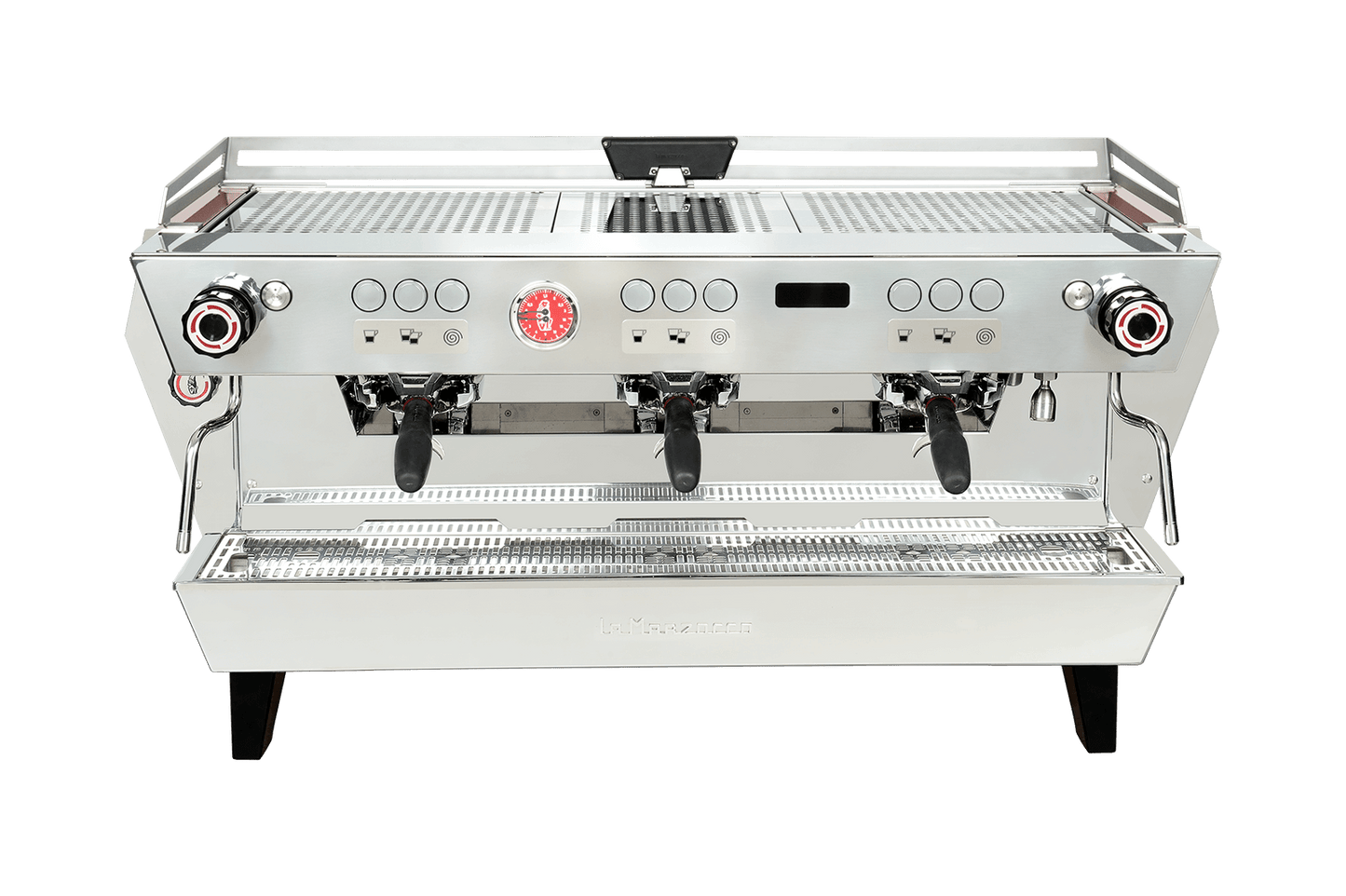

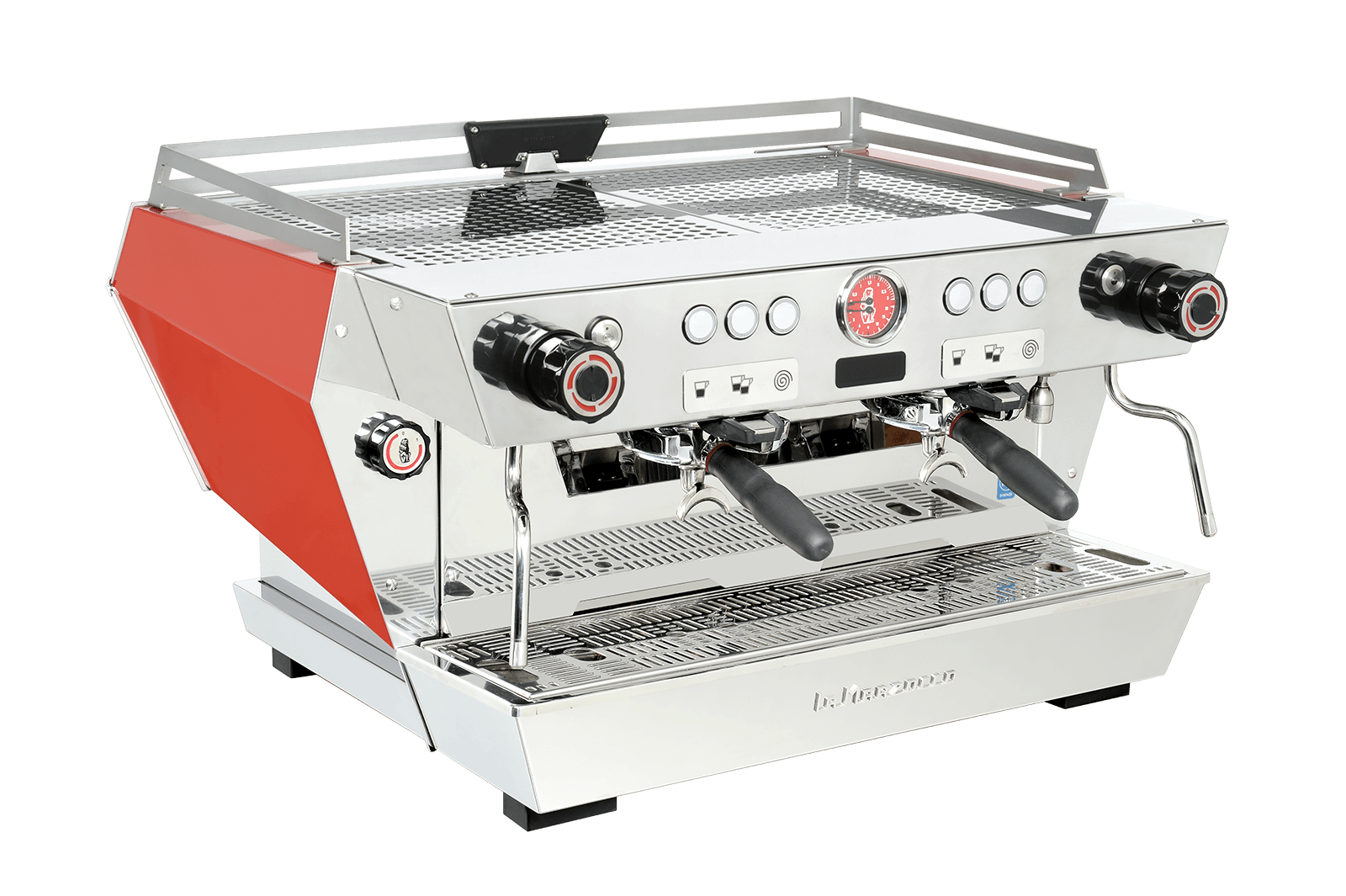

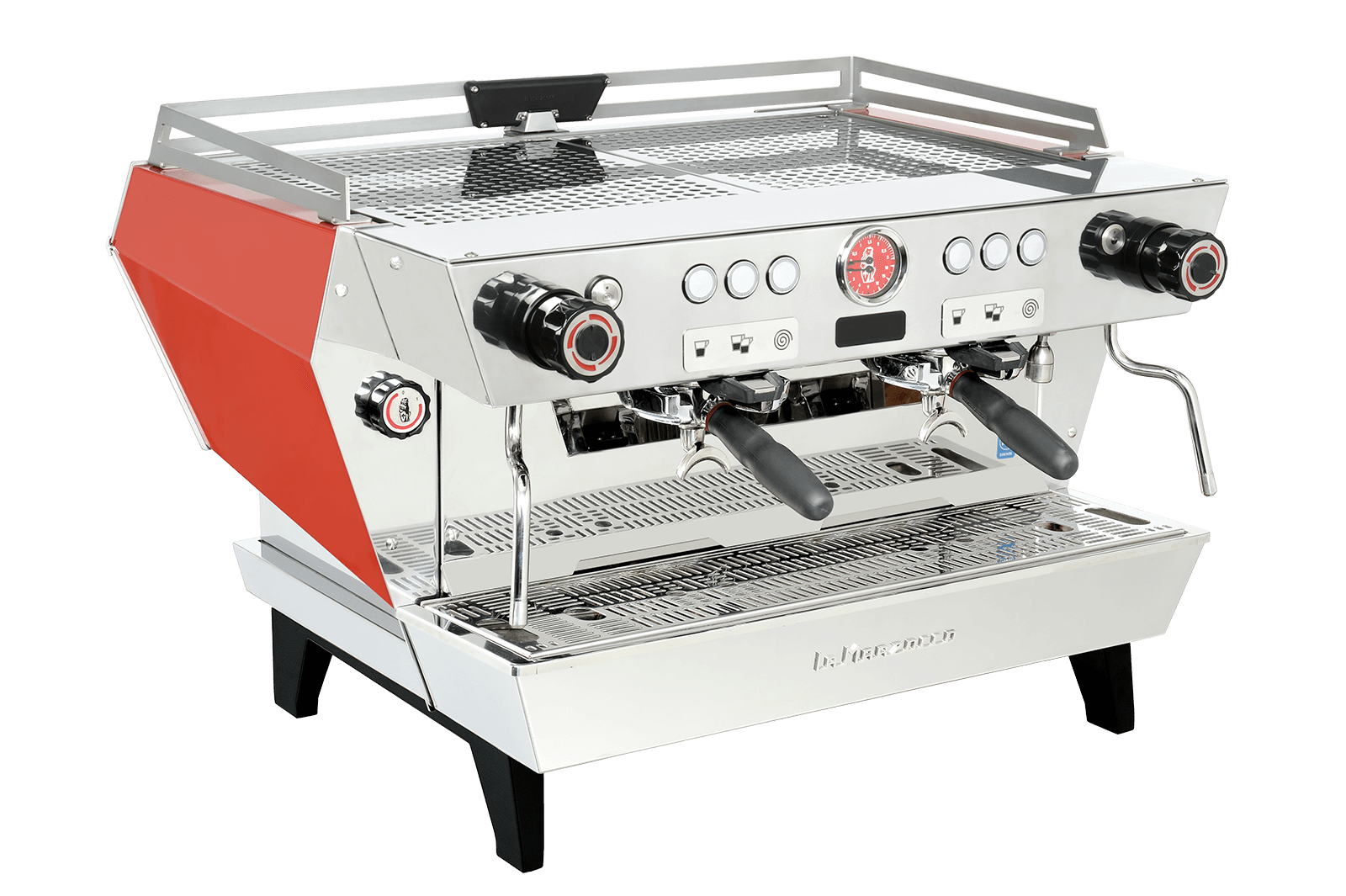

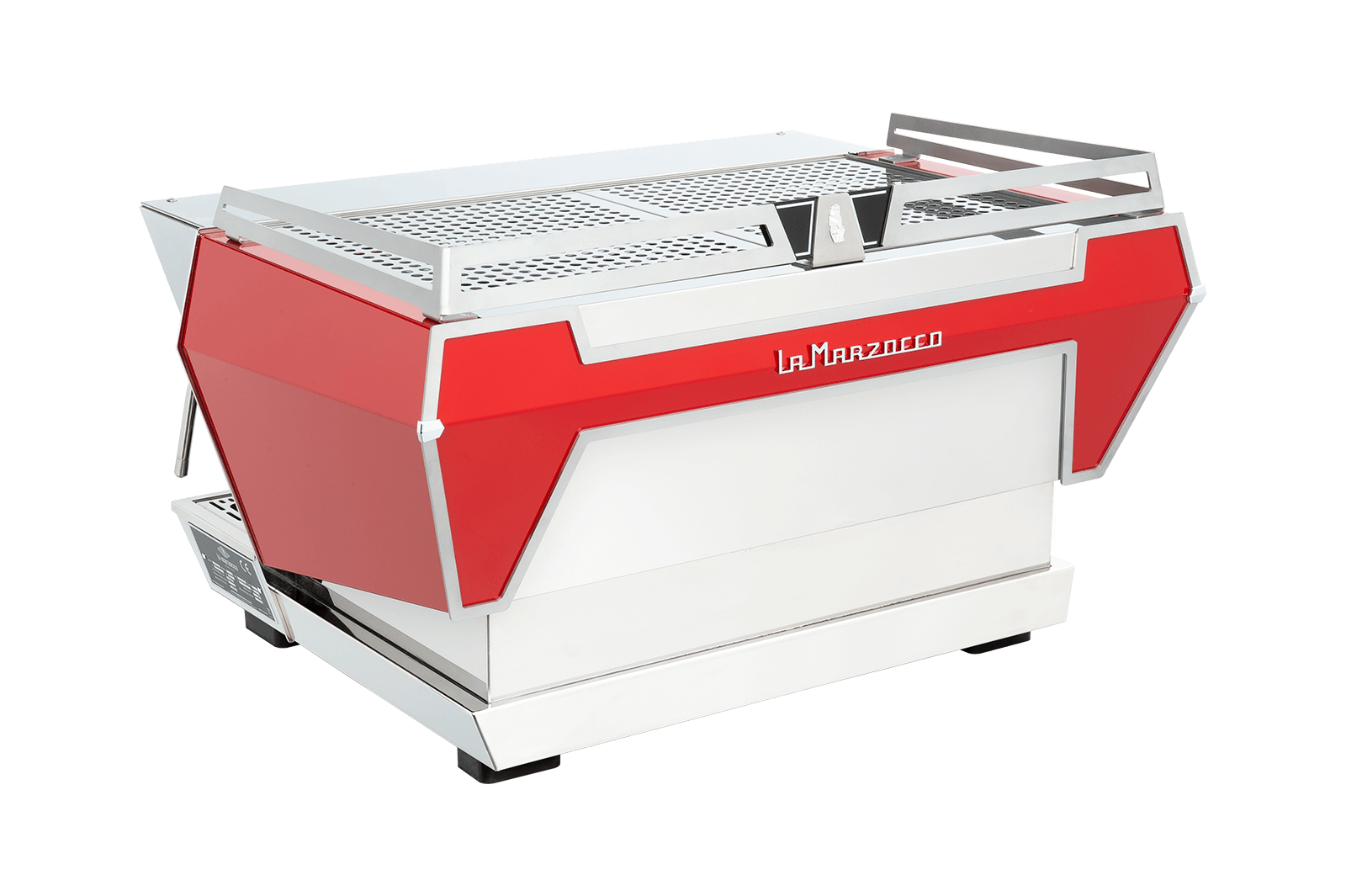

KB90

Ultimate workflow.

Version

2 Group 3 Group

Reference:

Quantity:

Product Overview

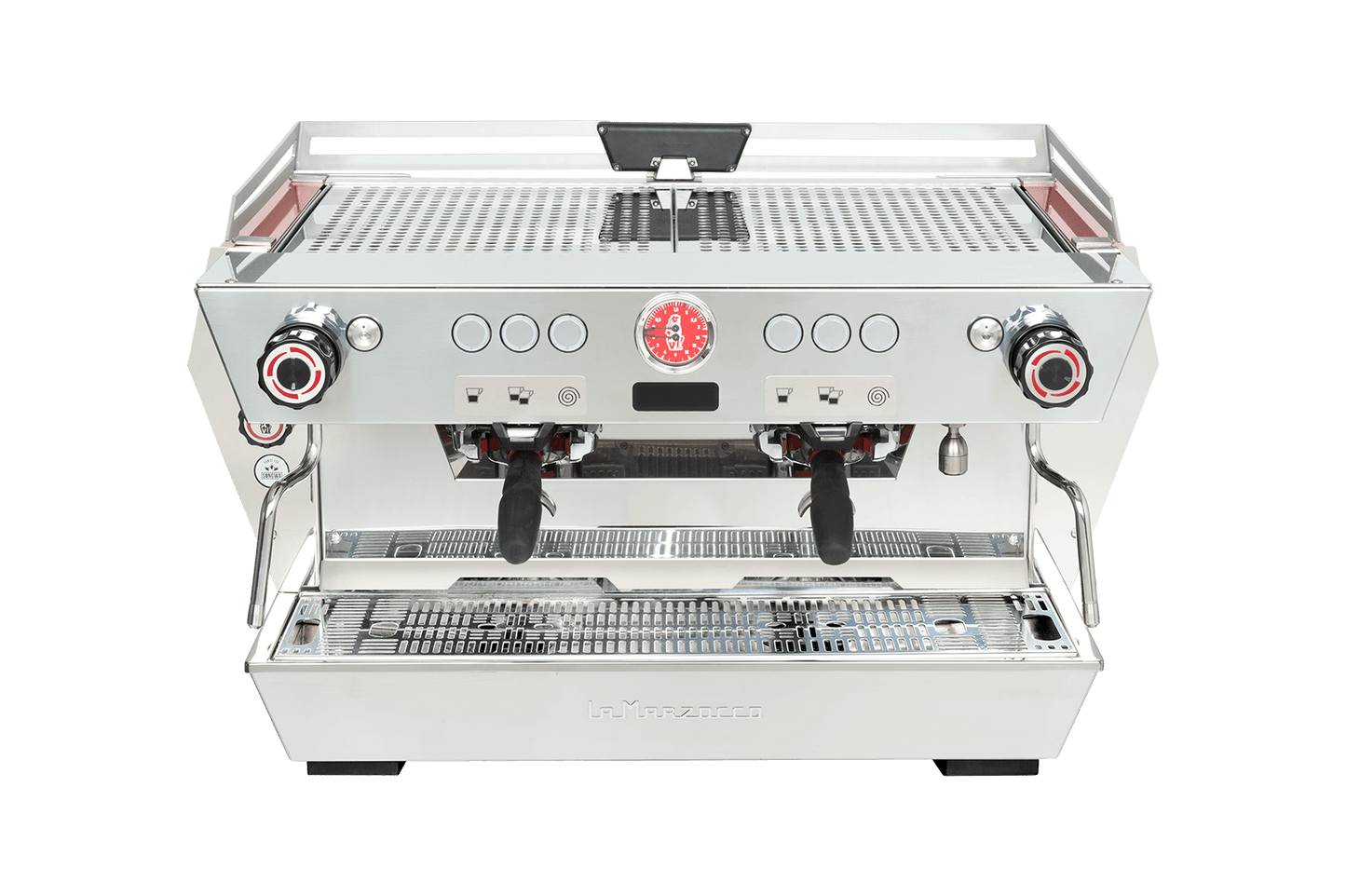

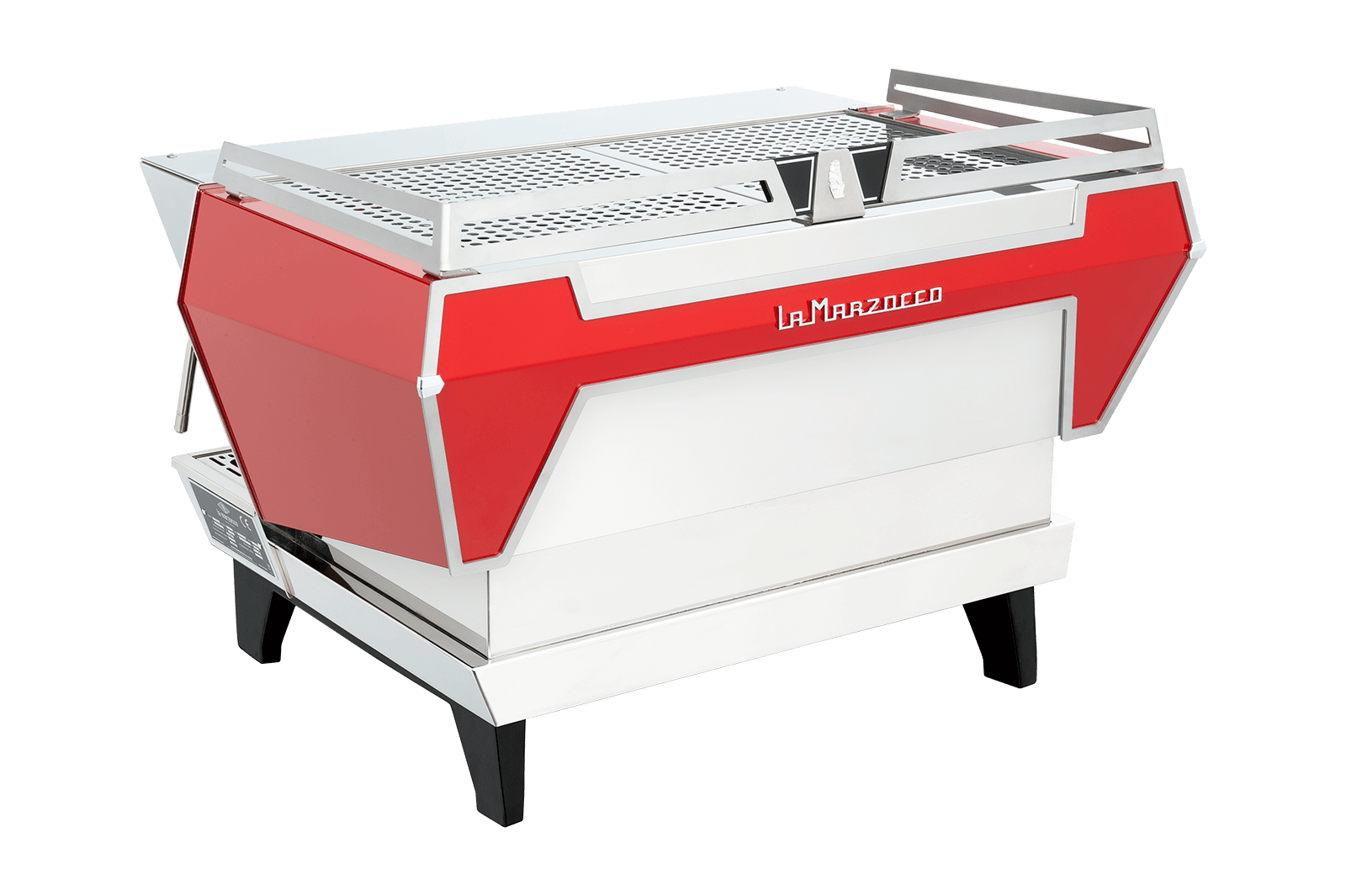

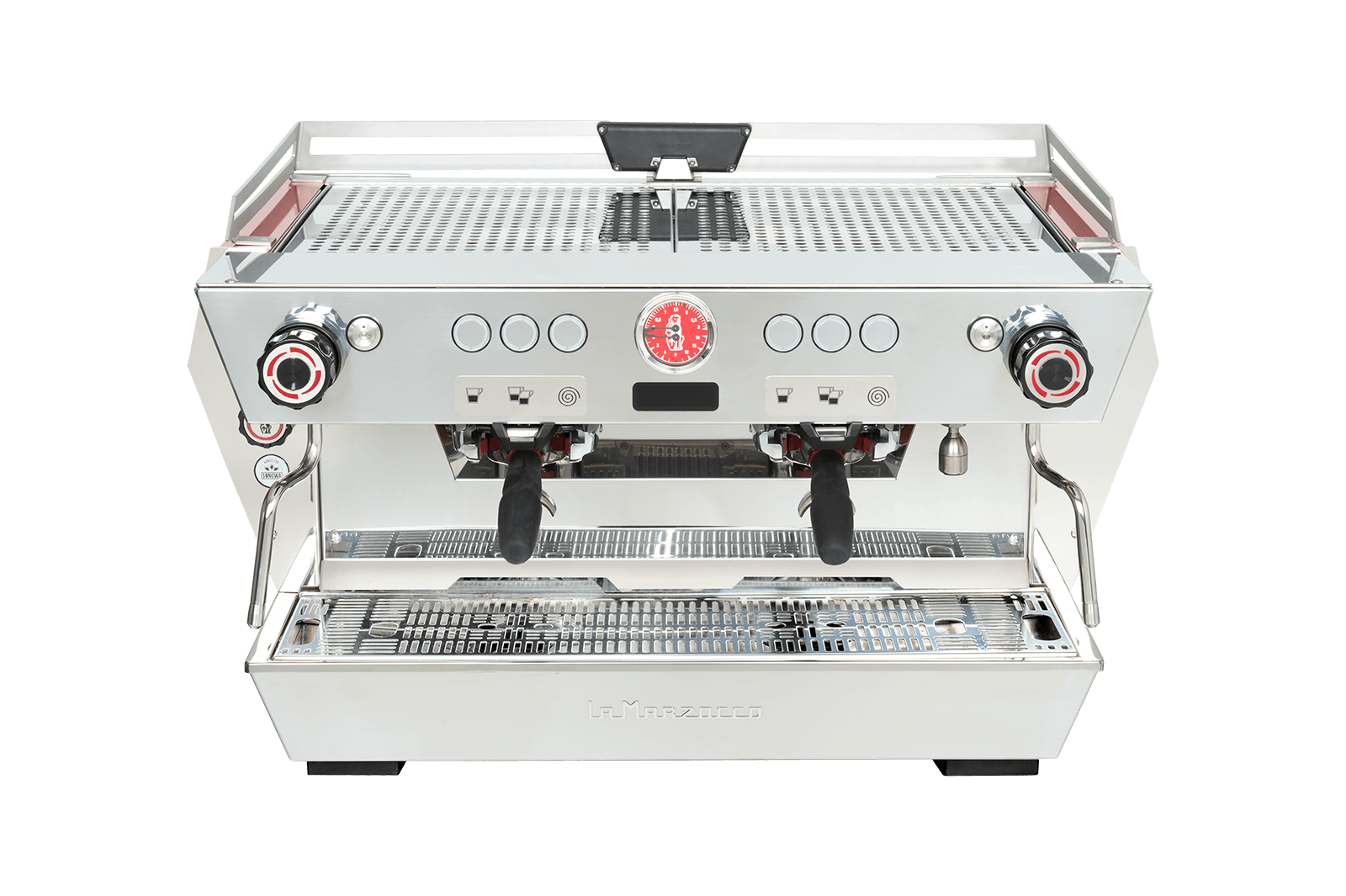

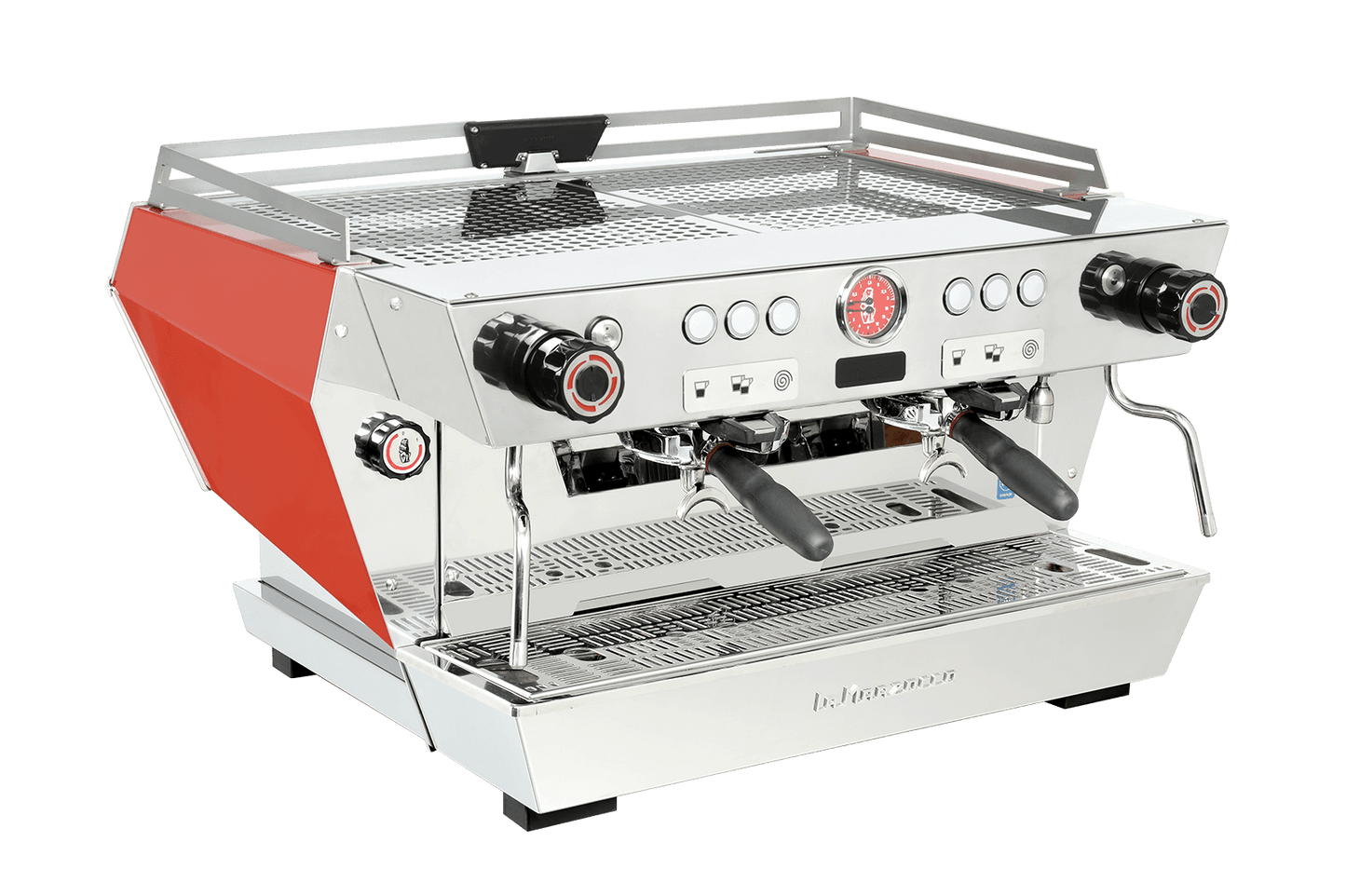

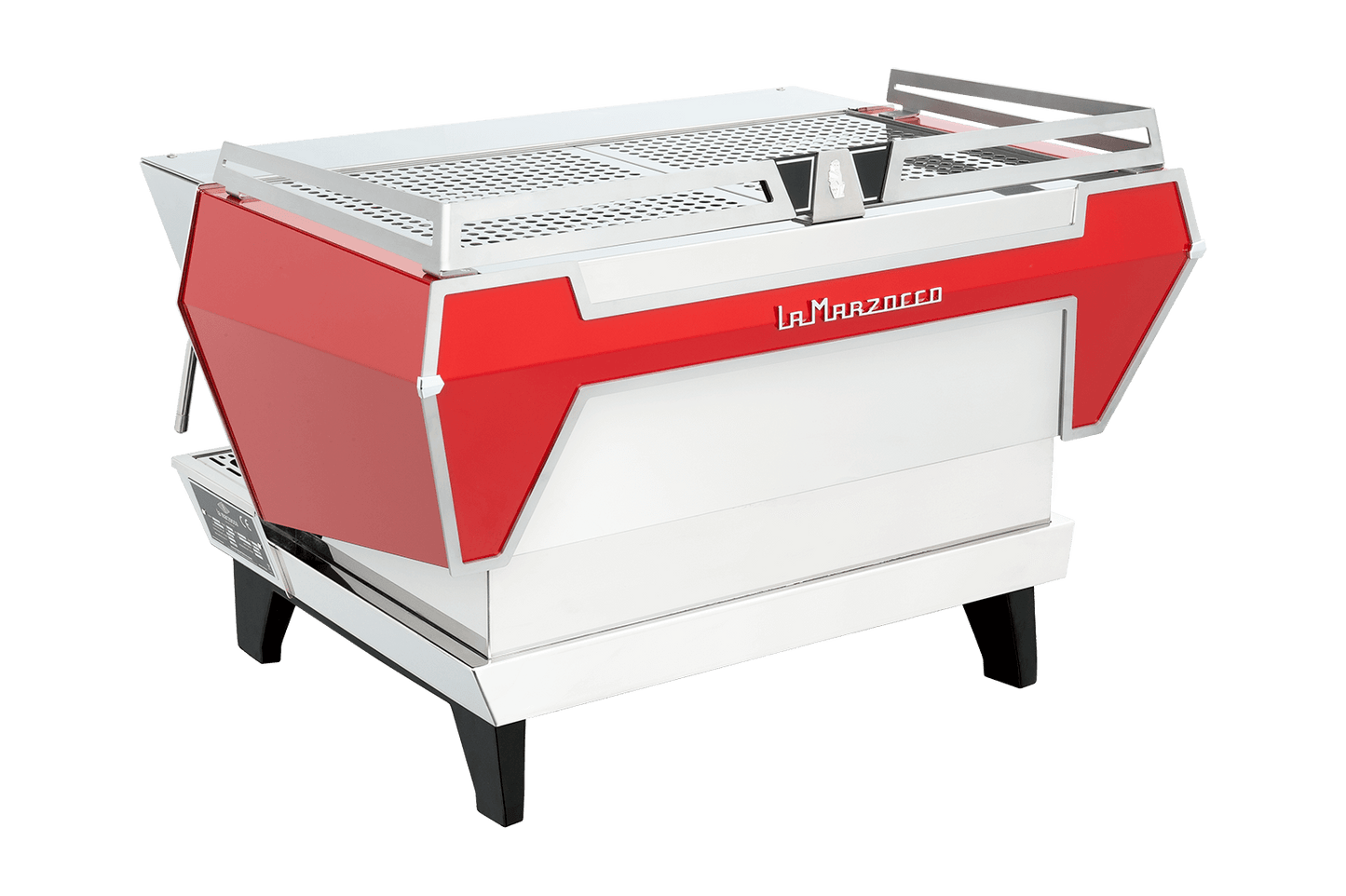

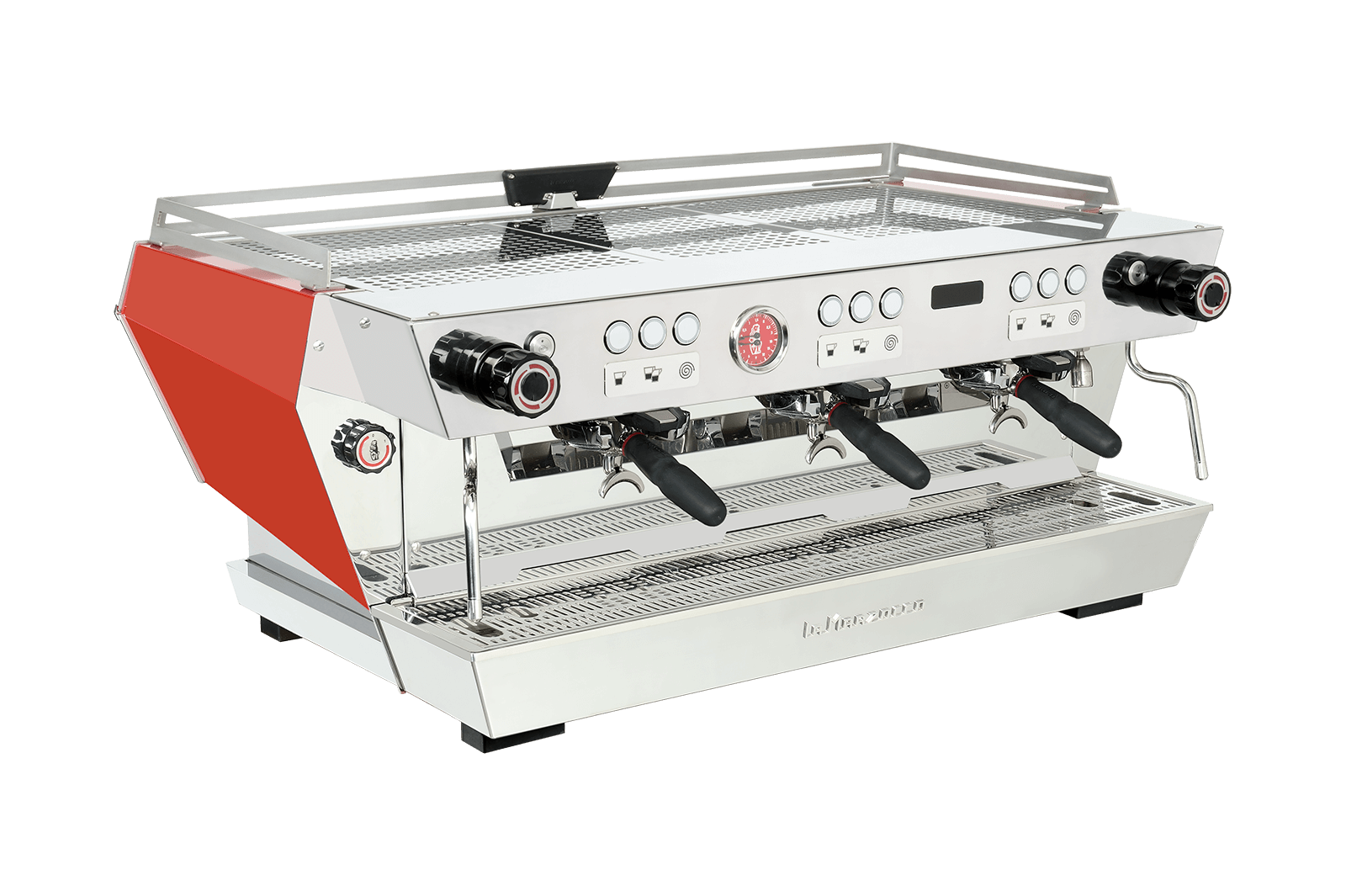

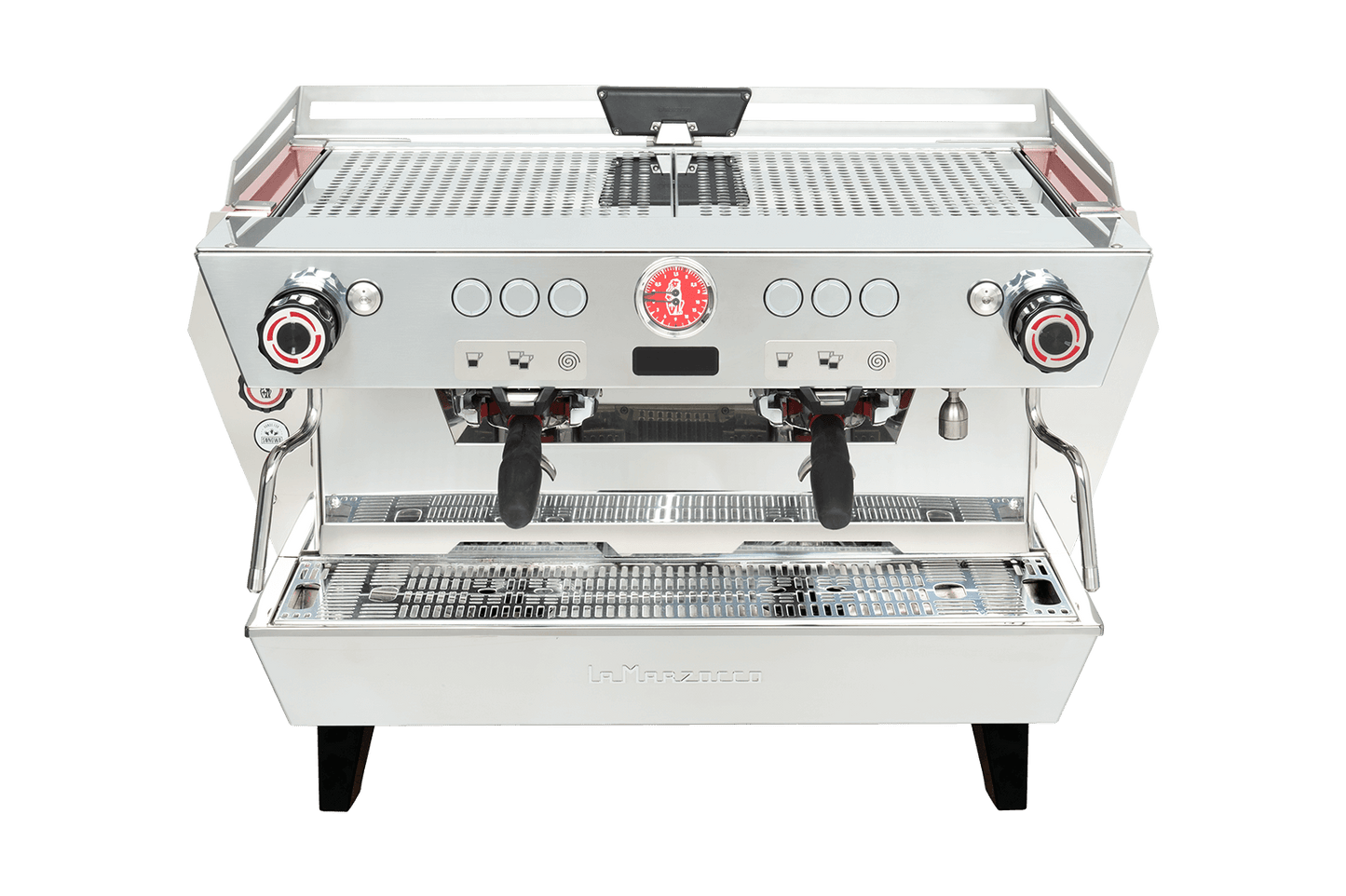

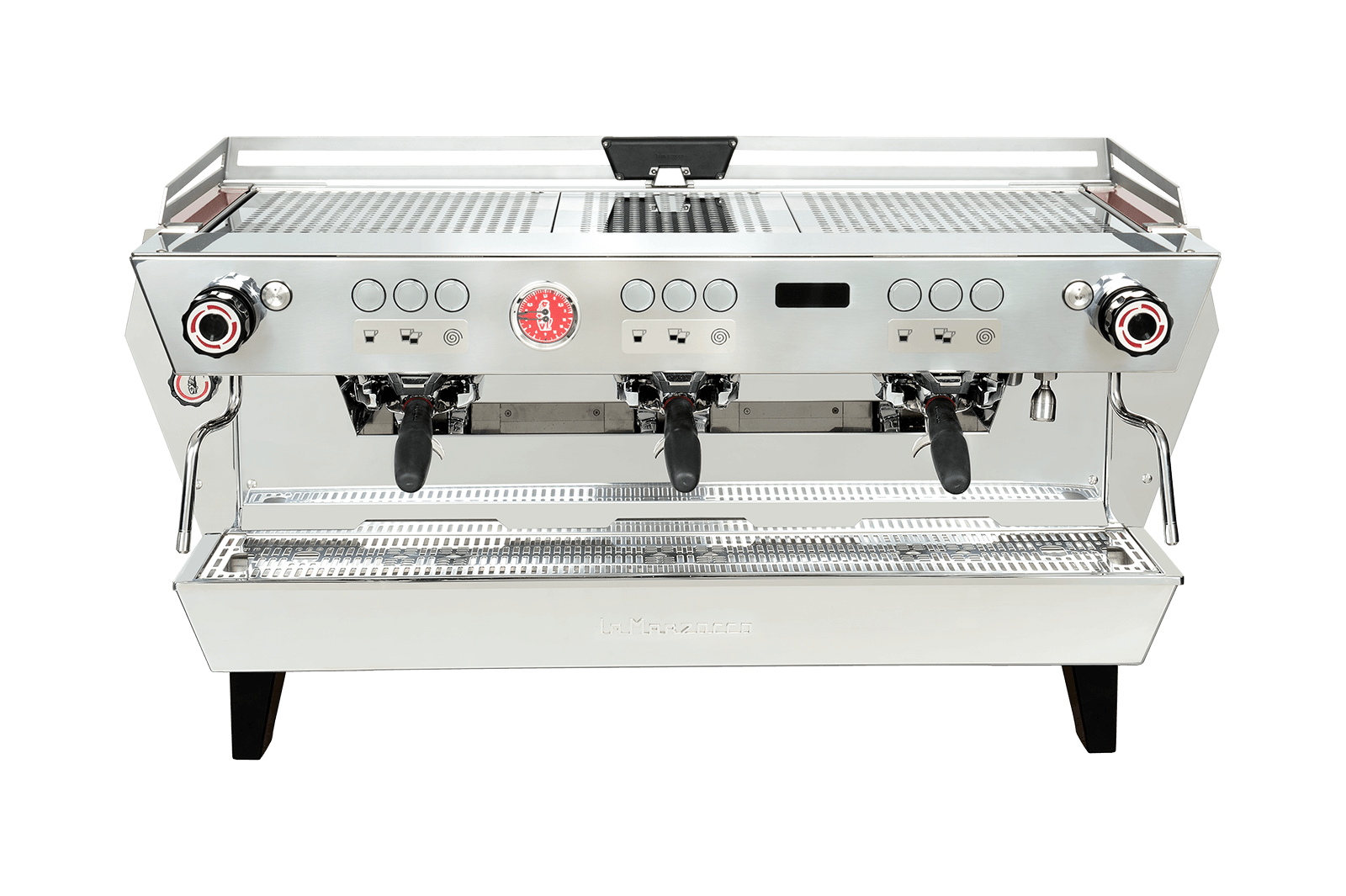

The KB90 sets a new standard in high volume cafe performance striving to make great espresso faster, cleaner and easier.

The KB90 is the ultimate evolution of the Linea PB form. Designed specifically to increase speed of service in the highest volume cafes while easier for the barista thanks to an improved workflow. La Marzocco has redesigned the portafilter system to improve workflow efficiency and to reduce the wrist strain of the user. Efficiency can also be increased thanks to Steam Flush: after each extraction, a burst of steam from the group head is followed by a flush of hot water, keeping the machine clean even in the busiest rush hours. This innovative function minimizes off flavored buildup, and increases the time between having to clean the group. The KB90 allows for a new level of expression in machine design, the panels have been engineered so that virtually infinite customization combination can be created.

Technical Specifications

Specifications	2grp	3grp
Height (cm/in)	45 / 17,5	45 / 17,5
Width (cm/in)	81 / 32	105 / 41,5
Depth (cm/in)	62 / 24,5	62 / 24,5
Weight (kg/lbs)	77 / 170	101 / 223
Voltage	200V Single / 3 Phase 220V Single / 3 Phase 380V 3 Phase	200V Single / 3 Phase 220V Single / 3 Phase 380V 3 Phase
Wattage Elements	5400 (200V) 5700 (220/380V)	7300 (200V) 7800 (220/380V)
Coffee Boiler Capacity (liters)	2 x 1,3	3 x 1,3
Steam Boiler Capacity (liters)	7	11

Key Features

Straight in portafilter

Ready for a new way to work fast and efficiently? The revolutionary Straight In design simplifies and eases the motion of locking-in the portafilter to the group-head, every time. Improve the natural workflow and output within a high-volume café!

Steam flush

Keep things easy and clean; the KB90 does a flush cycle for you, using a small burst of steam and water! Removing coffee residue quickly, and leaving every espresso tasting its best.

Drip prediction algorithm

Automatically stop espresso extraction at the desired moment to ensure target output is reached in the cup. Through this algorithm-based system, there’s no compromise to accuracy when you switch between blends, decaf, and single origins.

Familiar interface

Enjoy the reliable, user-friendly 3-button keypad and proprietary electronics appreciated the world over, that makes programming intuitive for both baristas and technicians – and brewing an immediate and pleasant experience.

Linea PB logic

Based on the bestseller Linea PB, the KB90 is equipped with many of the trusted and tested components of the Linea PB, making servicing easier without the need for new parts inventories.

Easy rebuild steam valve

The KB90 is equipped with a new steam valve, accessible directly from the steam knob. In case of regular, preventive or extraordinary maintenance, this feature minimizes machine downtimes.

Pro touch steam wand

Barista-friendly ergonomic steam wand that always stays cool to the touch.
